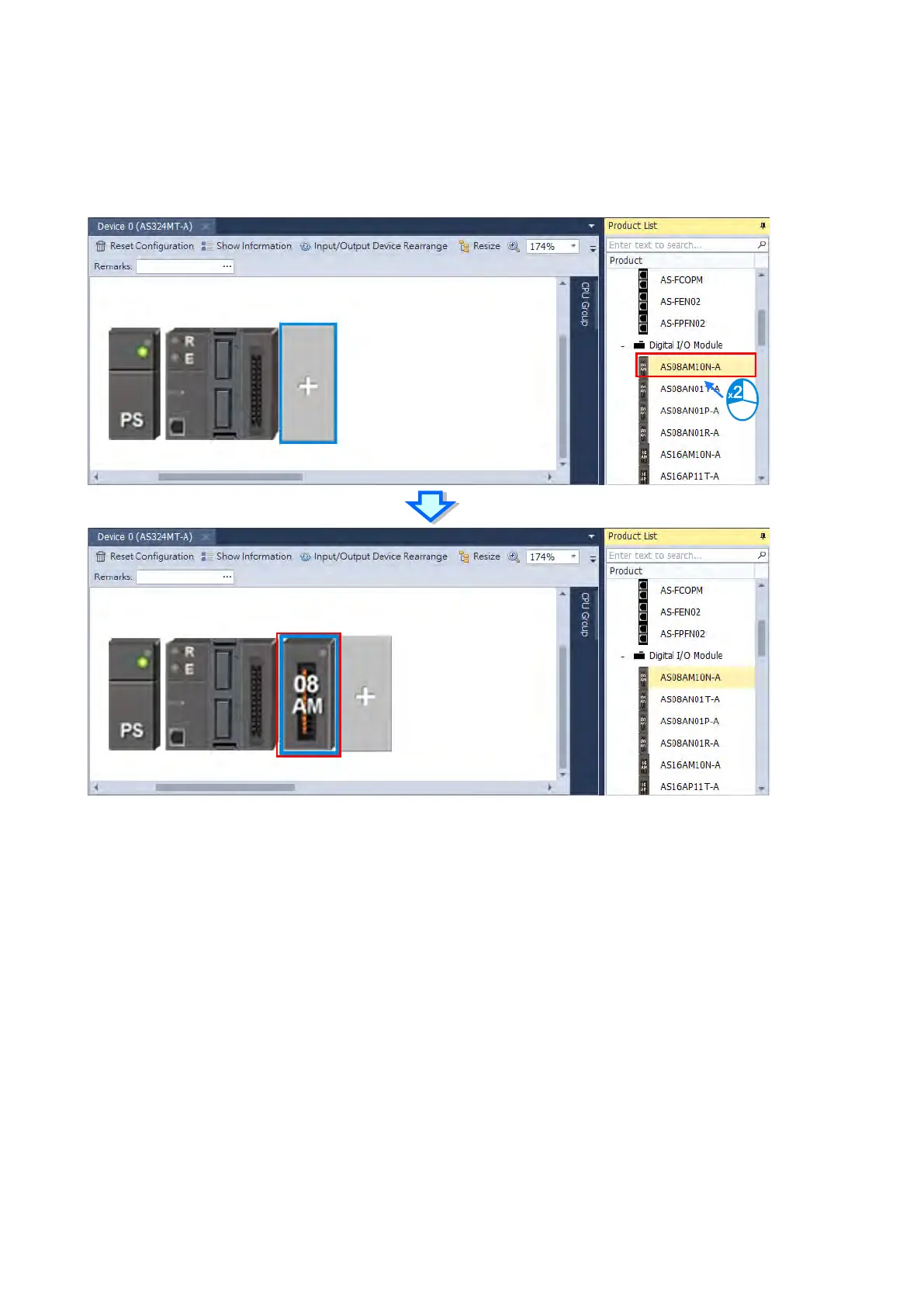

Method 3
In the
Product List
section
, d
ouble
-
clic
k the selecte
d module or selec
t the desir
ed module and pr
ess
Enter
on the
keyboard to ad
d the selected
module in the har
dware conf
iguration ar
ea.
