9.2.2.2. Dual Port Device
You can use a dual port device to build a linear, a star or a ring network topology. A DLR function is required to create a
ring topology. Refer to Section 9.9.2 for DLR supported series.

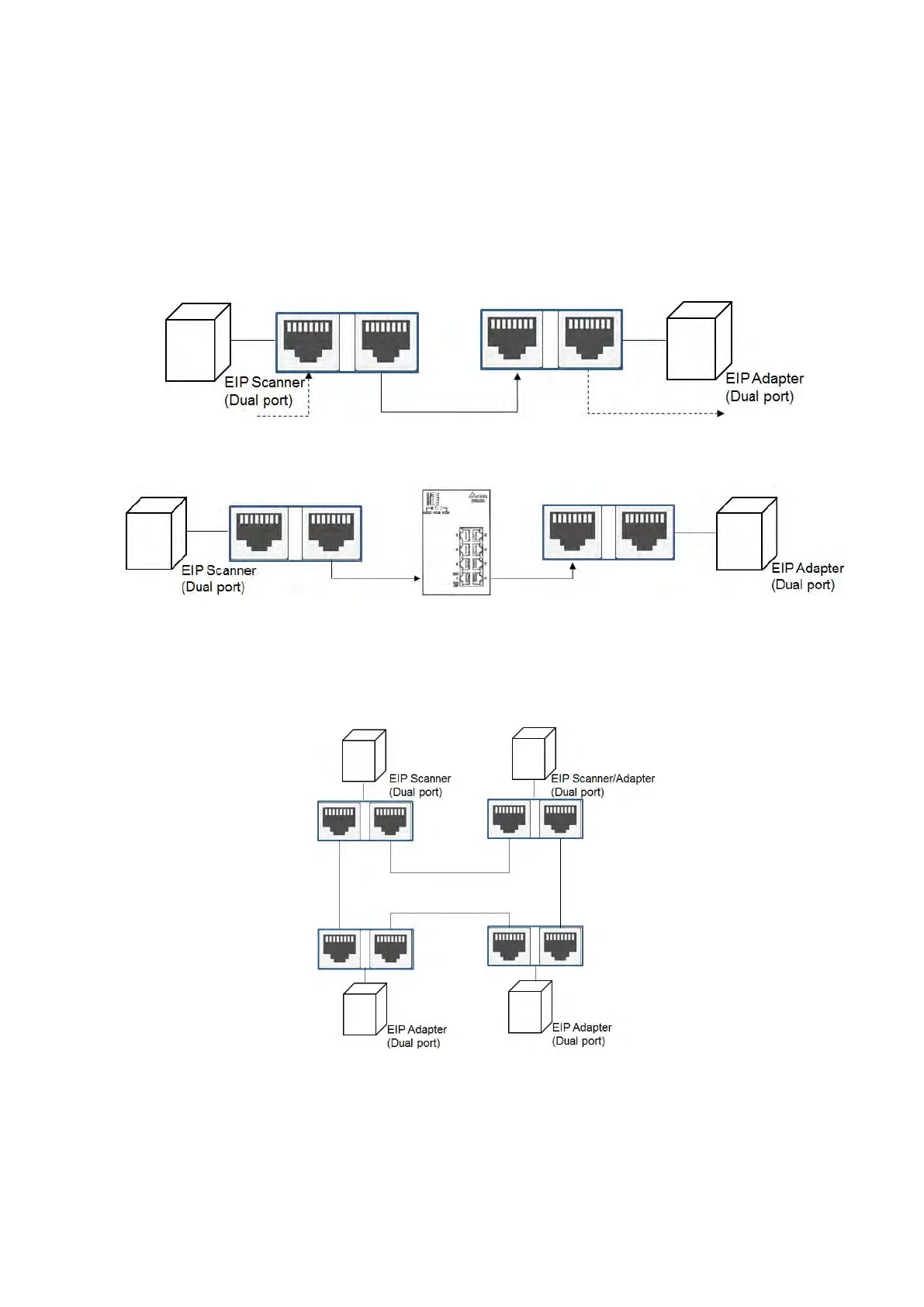

Linear Topology
Star Topology
Ring Topology
A DLR function is required to create a ring topology. Refer to Section 9.9.2 for DLR supported devices.
