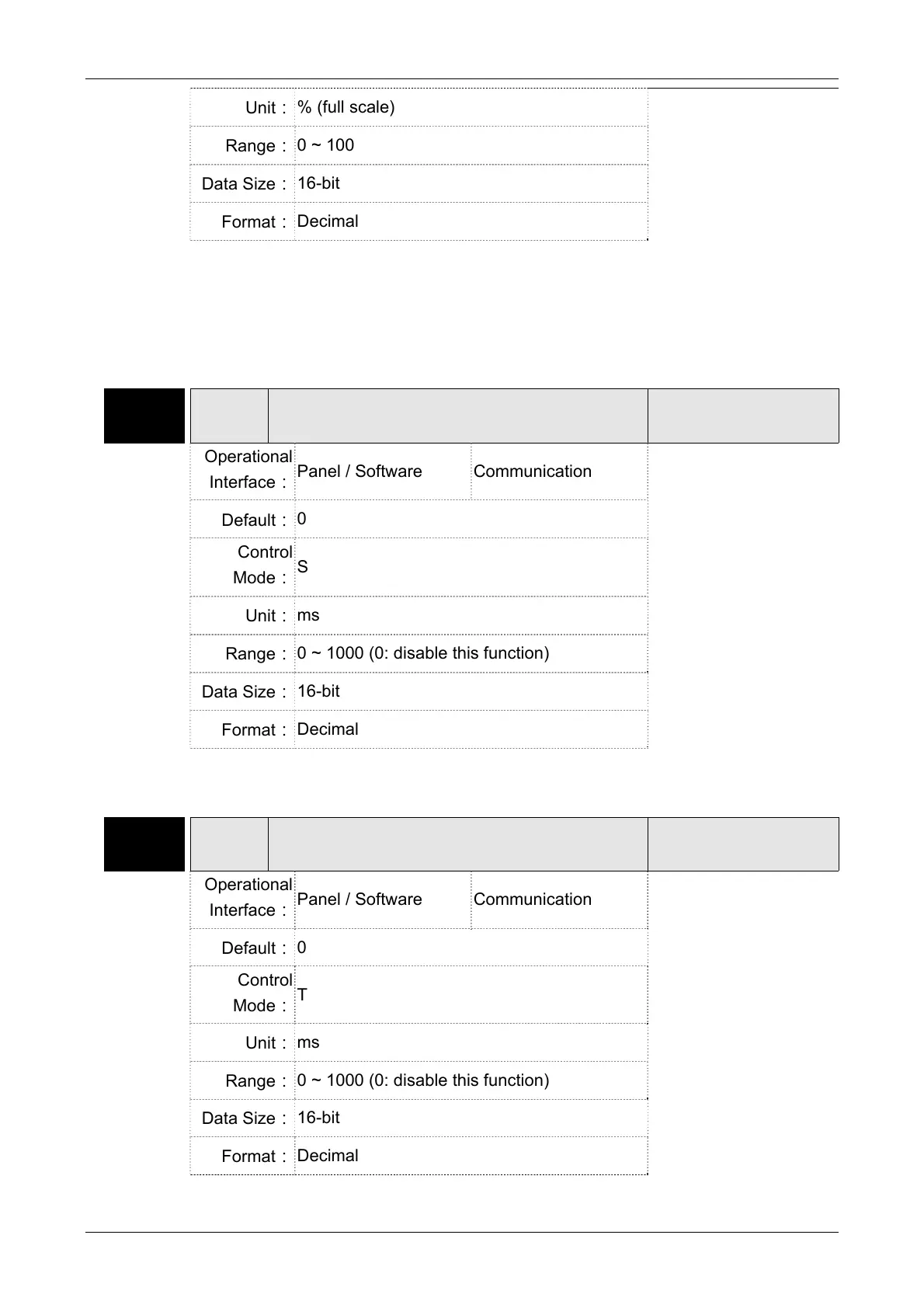

Delta ASD-A2-4523 Series - Page 299

Chapter 8 Parameters ASDA-A2
8-48 Revision February, 2017
Unit：
% (full scale)
Range：
0 ~ 100
Data Size：
16-bit
Format：
Decimal
Settings：
Please refer to parameter P0-03 for the setting of analog output
selection.
For example: P0-03 = 0x00 (MON2 is the speed analog output)
When the output voltage value of MON2 is V2: Motor speed = (Max. ×
V2/8) × P1-05/100
P1-06 SFLT Analog Speed Command (Low-pass Filter)
Address: 010CH
010DH
Operational
Interface：
Panel / Software Communication
Related Section:
6.3.3
Default：
0
Control
Mode：
S
Unit：
ms
Range：
0 ~ 1000 (0: disable this function)
Data Size：
16-bit
Format：
Decimal
Settings：
0: Disabled
P1-07 TFLT Analog Torque Command (Low-pass Filter)
Address: 010EH
010FH
Operational
Interface：
Panel / Software Communication
Related Section:
6.4.3
Default：
0
Control
Mode：
T
Unit：
ms
Range：
0 ~ 1000 (0: disable this function)
Data Size：
16-bit
Format：
Decimal
Settings：
0: Disabled
