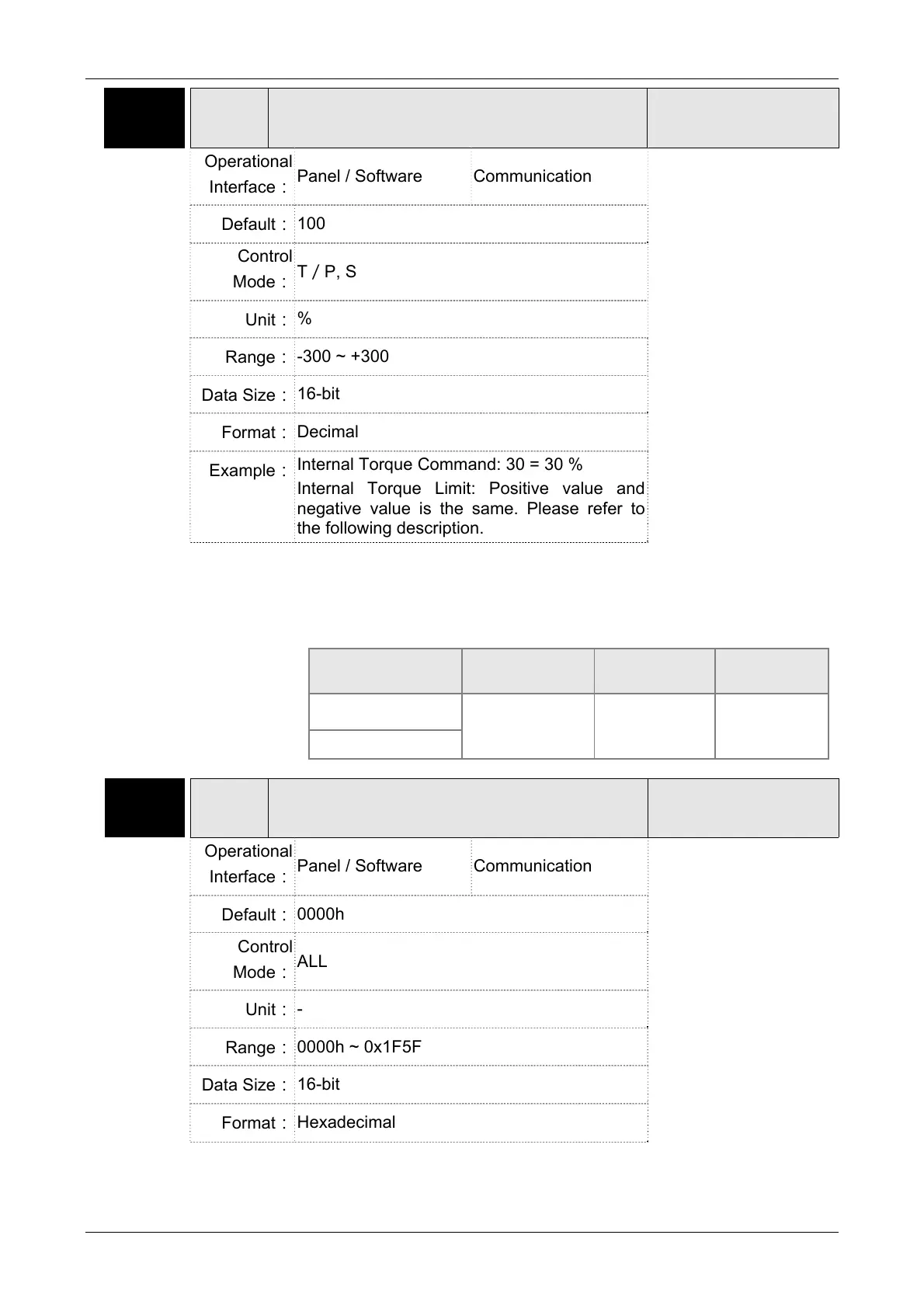

P1-14 TQ3
Internal Torque Command 3／Internal Torque
Limit 3
Address: 011CH
011DH
Operational
Interface：
Panel / Software Communication
Related Section:
6.4.1
Default：
100
Control
Mode：
T／P, S
Unit：
%
Range：
-300 ~ +300
Data Size：
16-bit
Format：
Decimal
Example：
Internal Torque Command: 30 = 30 %
Internal Torque Limit: Positive value and
negative value is the same. Please refer to
the following description.
Settings：
Internal Torque Command 3: The setting of the third internal torque
command
Internal Torque Limit 3: The setting of the third internal torque limit
Example of inputting internal torque limit:
Torque limit setting
value of P1-14
Allowable
Torque Range
Forward
Torque Limit
Reverse
Torque Limit
30
-30 ~ 30 % 30 % -30 %
-30
P1-15 CXFT
Capture Synchronous Axis – Threshold of
Correction
Address: 011EH
011FH
Operational
Interface：
Panel / Software Communication
Related Section:
Default：
0000h
Control
Mode：
ALL
Unit：
-
Range：
0000h ~ 0x1F5F
Data Size：
16-bit
Format：
Hexadecimal
