B. Military Connector
Delta part number: ASD-A2EB1003, ASD-A2EB1005
Title Model Name
L
mm inch
1 ASD-A2EB1003
3000  100 118  4
2 ASD-A2EB1005
5000  100 197  4

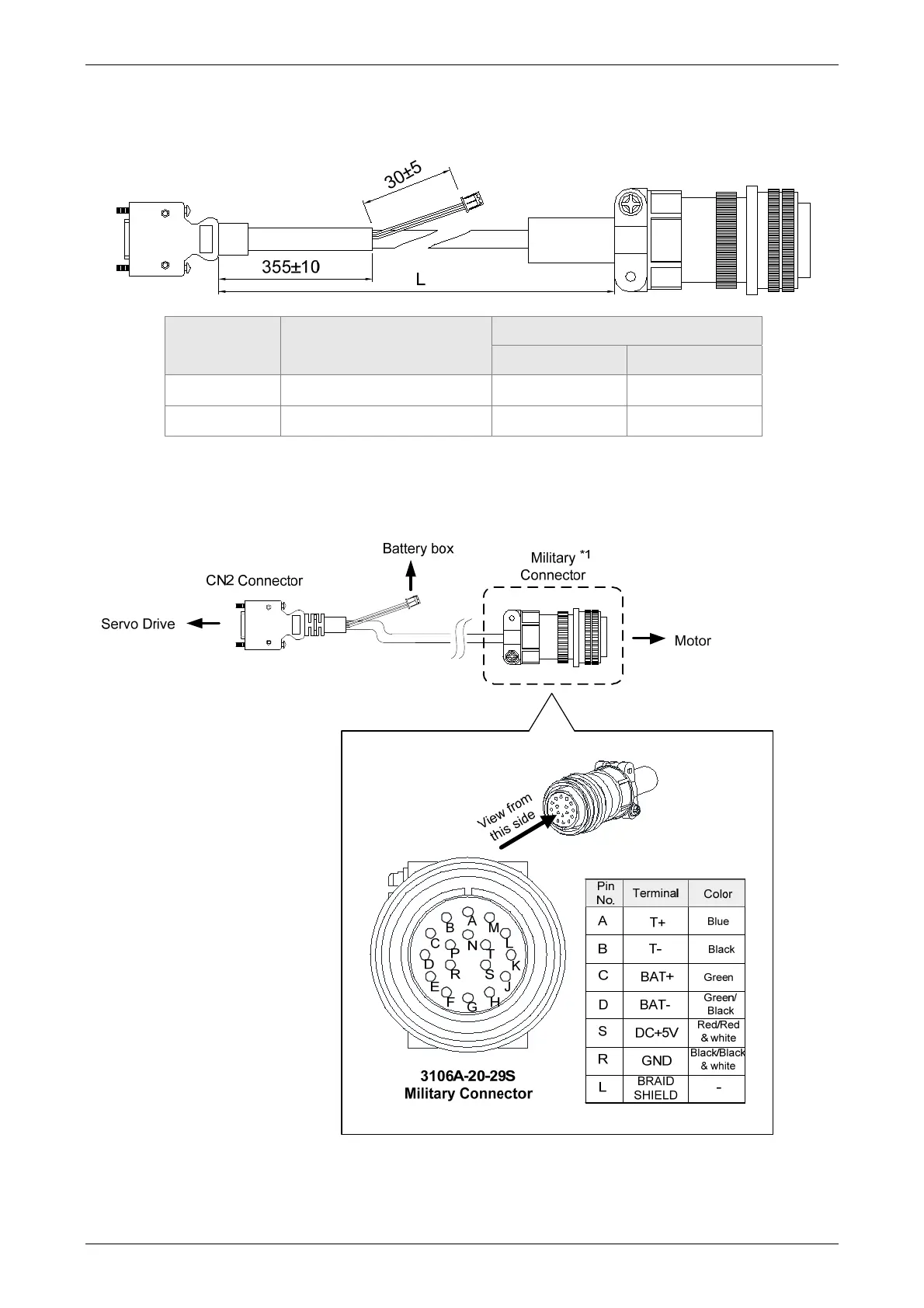

Connection method:
Please conduct the wiring according to the following instructions. Wrong wiring might
cause battery explosion.
