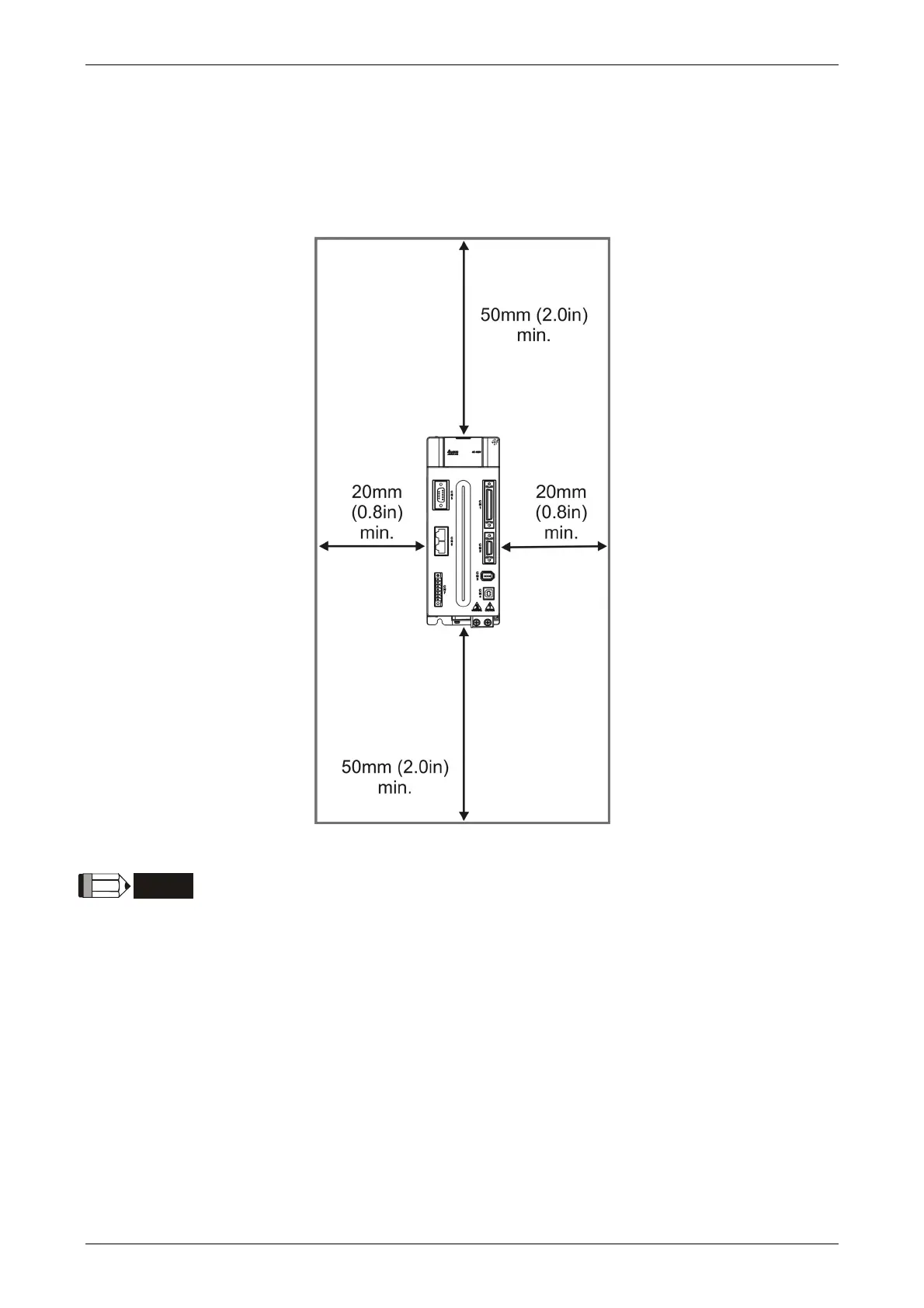

Scheme of Installation:
In order to have smaller wind resistance of the fan and increase the ventilation, please follow the
suggested clearance value when installing one or more than one servo drives. (Refer to the
following diagrams)
NOTE
The above diagrams are not in equal proportion. Please refer to the
annotation.
