Delta ASD-A2-4543 Series

Chapter 12 Absolute System ASDA-A2
Revision February, 2017 12-5

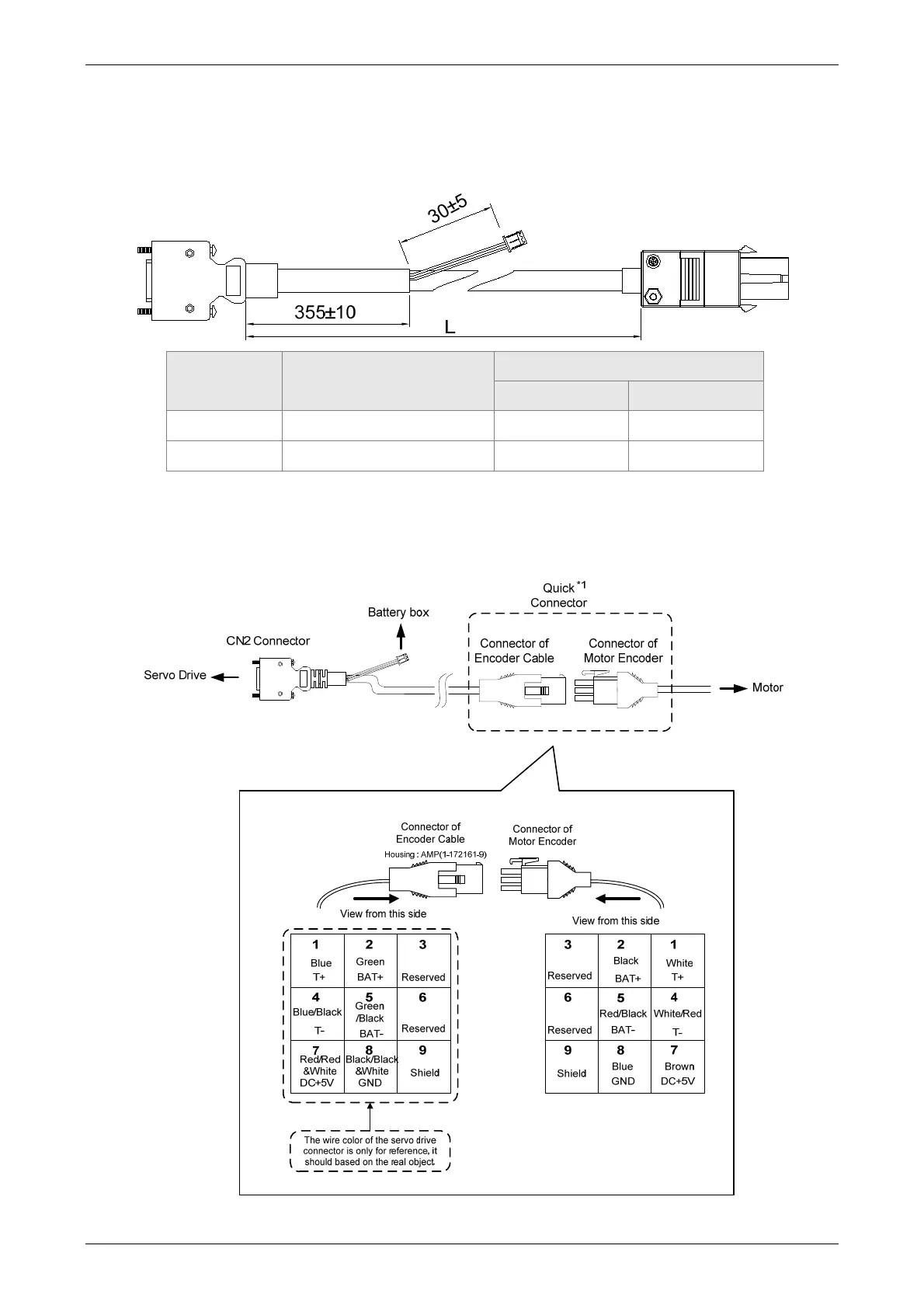

12.1.3 Connection Cables for Absolute Encoder
A. Quick Connector
Delta part number: ASD-A2EB0003, ASD-A2EB0005
Title Model Name
L
mm inch
1 ASD-A2EB0003
3000  100 118  4
2 ASD-A2EB0005
5000  100 197  4
Connection method:
Please conduct the wiring according to the following instructions. Wrong wiring might
cause battery explosion.
