Chapter 8 ParametersASDA-A2R Series
8-186 Revision December, 2014
Settings：
(Please refer to the definition of P5-88 U setting value 2)

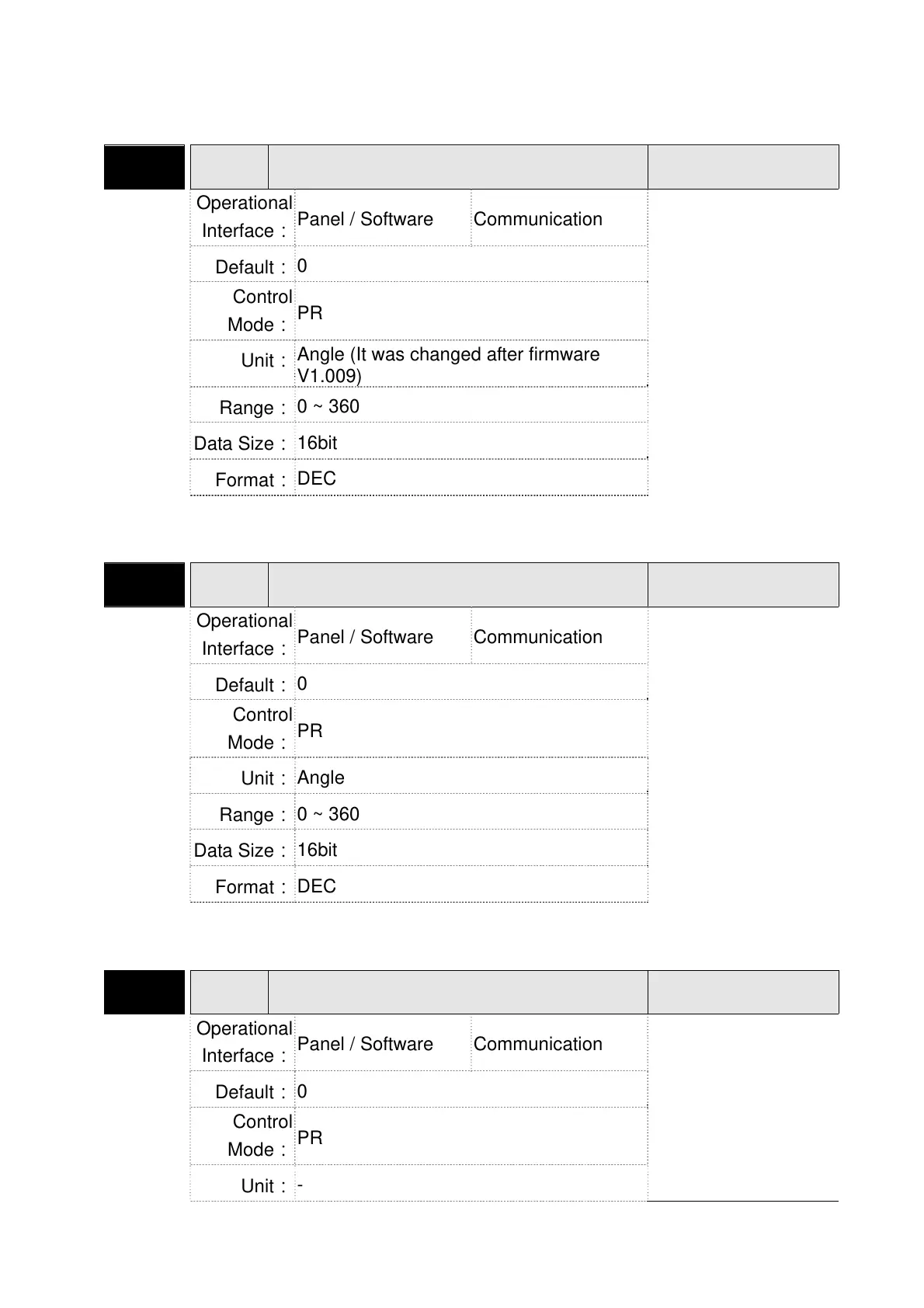

P5-90 CMAP
E-CAM: AREA No.＋The Point of DO ON
Address: 05B4H
05B5H
Operational
Interface：
Panel / Software Communication
Related Section:
7.11
Default：
0
Control
Mode：
PR
Unit：
Angle (It was changed after firmware
V1.009)
Range：
0 ~ 360
Data Size：
16bit
Format：
DEC
Settings：
When E-cam is engaged, set the start angle of DO output (DO.
CAM_AREA).
P5-91 CMAN E-CAM: AREA No. - The Point of DO OFF
Address: 05B6H
05B7H
Operational
Interface：
Panel / Software Communication
Related Section:
7.11
Default：
0
Control
Mode：
PR
Unit：
Angle
Range：
0 ~ 360
Data Size：
16bit
Format：
DEC
Settings：
When E-cam is engaged, set the end angle of DO output (DO.
CAM_AREA).
P5-92 PLED E-CAM: Pre-engaged Time of Each Cycle
Address: 05B8H
05B9H
Operational
Interface：
Panel / Software Communication
Related Section:
7.11
Default：
0
Control
Mode：
PR
Unit：
-
