When E-Cam moves from current position to the target one, it can rotates at
forward or reverse position. Duing to the cyclic operation, it can reach the
target position either at forward or reverse direction. However, the moving
distance between both is usually different. Use available forward rate to
plan the timing of forward and reverse rotation.
＊Avaliable forward rate: The available max. proportion of forward path
Failure code
F0E1h
When executing this macro, E-Cam is not engaged.
E-Cam has to engage to execute alignment correction.
Failure code
F0E2h
The setting value of P5-93.YX (PR number) exceeds
the range: 0 ~ 0x3F
Failure code
F0E3h
The setting value of P5-93.UZ (Max. alignment
correction rate) exceeds the range: 0~0x64 (％)

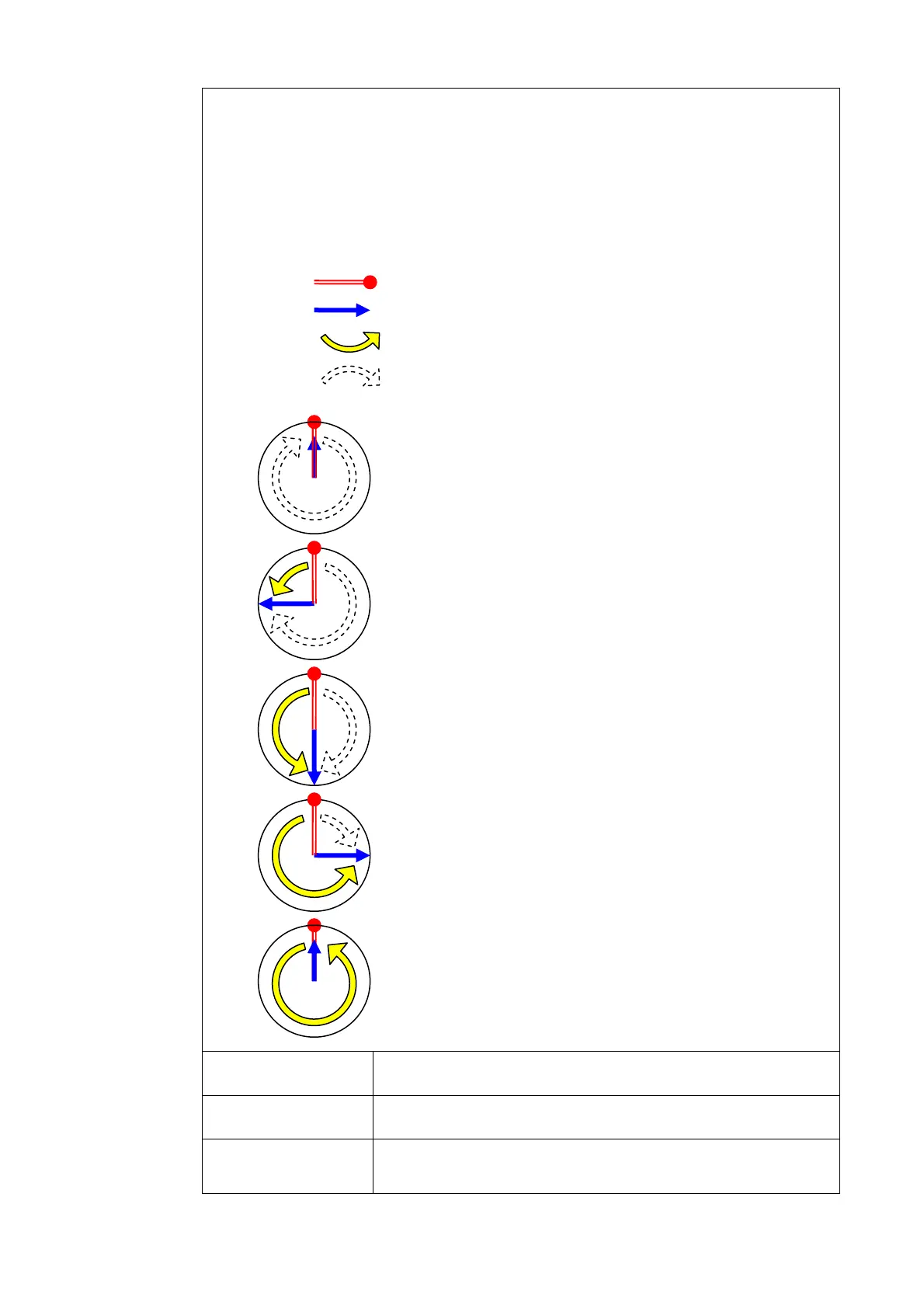

Avaliable forward rate＝25%, the available max. path is
+90°
Avaliable forward rate＝50%, the available max. path is
+180°
Avaliable forward rate＝75%, the available max. path is
+270°
Avaliable forward rate＝100% (360°), forward path
only
Avaliable forward rate ＝0% (0°), reverse path only
: E-Cam current position
: Max. forward rotation limit. Counterclockwise represents
forward direction in the figure.
: Target position is within the range; going trip is at forward
direction
: Target position is within the range; going trip is at reverse
direction.
