Delta ASD-A2R-0221 Series

Chapter 12 Setting of Motor Parameters ASDA-A2R Series
Revision December, 2014
12-11

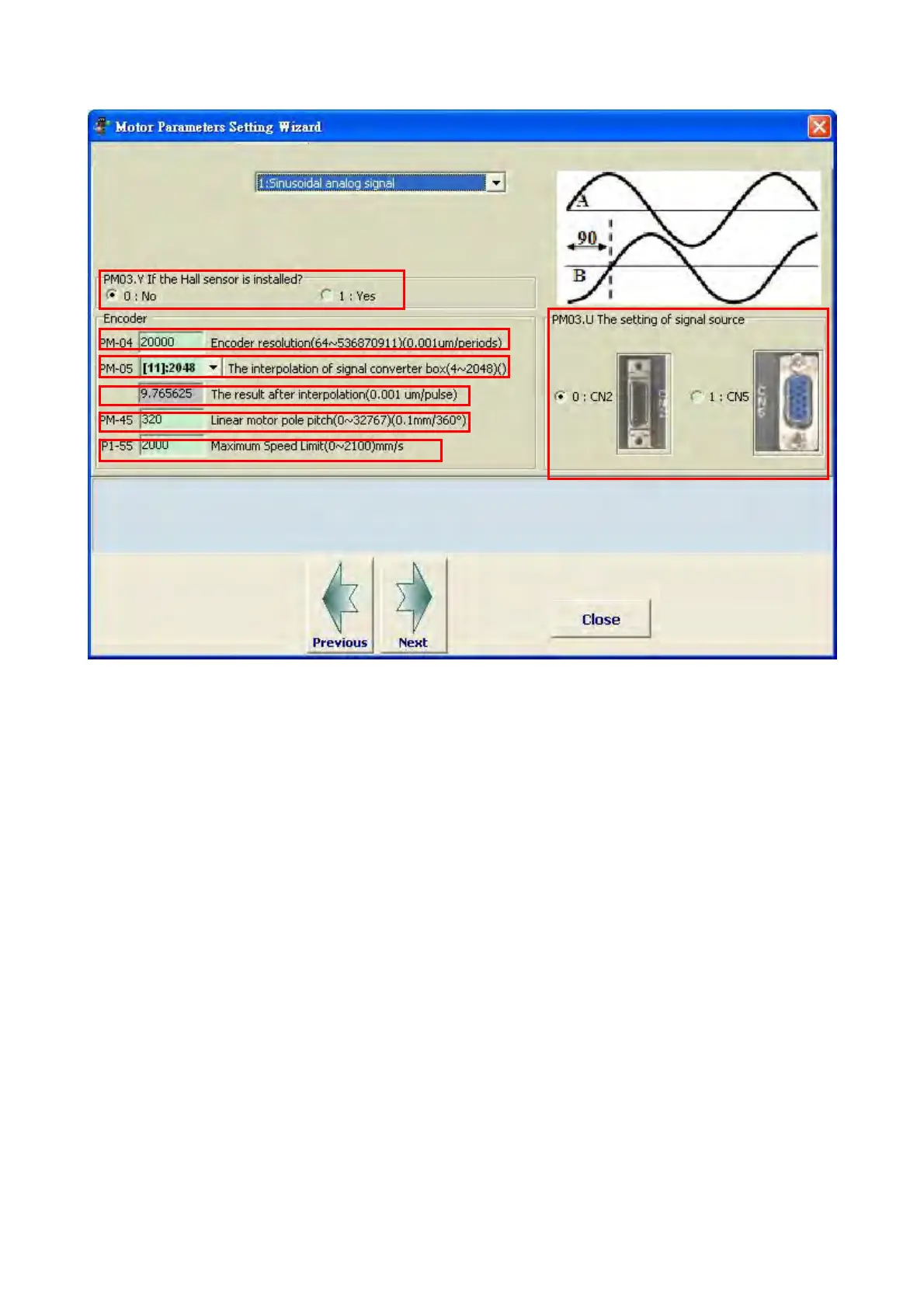

STEP 5.2.2: The setting of sinusoid analog signal
1. If the Hall sensor is installed: Select if the motor is installed Hall sensor.
2. The setting of signal source: Its signal source is from CN2 port only.
3. Encoder resolution: The length of one sinusoid cycle of linear scale feedback; unit:
periodm/10
3


4. The interpolation of signal converter box: Setup the interpolation of signal converter box.
It fine-cuts the sinusoid analog signal and transforms the signal into square wave signal
which also enhances the resolution.
5. The result after interpolation: It is the read-only value. Value = PM-04/PM-05*100; unit:
countm /10
5


6. The pole pitch of permanent magnet synchronous linear motor. Input the pole pitch of
permanent magnet synchronous linear motor. Range: 0~32767; unit: 0.1 mm
7. The maximum speed limit: input the maximum speed limit of mechanism; range:
0~15999; unit:
sm /10
3
2
1
3
4
5
6
7
