Chapter 8 Parameters ASDA-M
8-184 Revision December, 2014
Settings：
When synchronous capture axis is operating, the synchronous
error should be 0. This parameter shows this error value. The
followings are its concept:
Synchronous Error ＝ Output value of synchronous axis－
Setting value of synchronous axis
＝ the accumulative amount of P5-77－
(P5-78 x Capturing number of times)
When capturing the data, the synchronous aixs works normally.
This parameter updates once.
This parameter can be written into as well. It indicates the offset
of synchronous master. When the synchronous capture axis is
regarded as the master of flying shear, modify this parameter can
deviate the cutting position to the left/right.

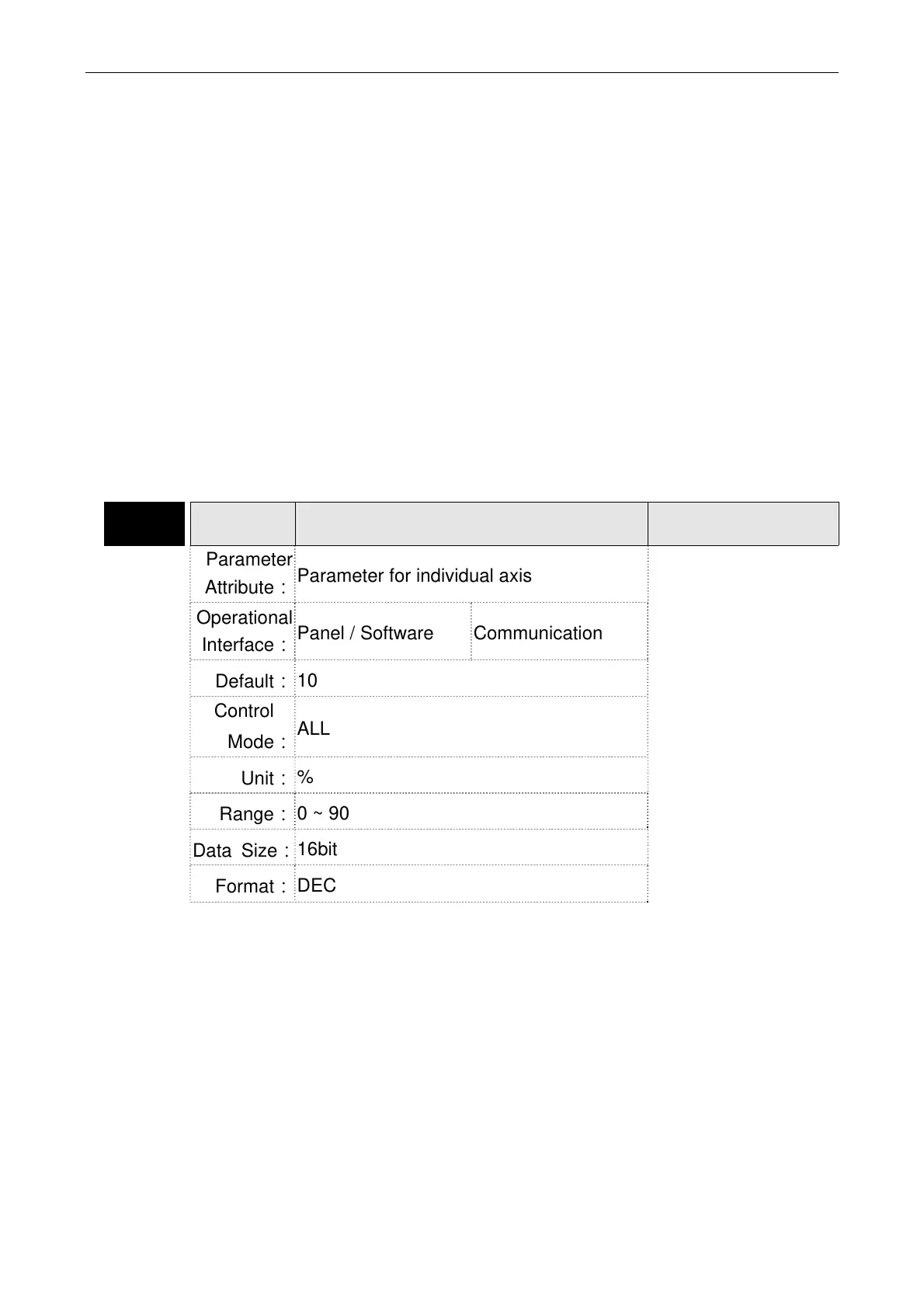

P5-80 CSDS
Max. Correction Rate of Synchronous
Capture Axis
Address: 05A0H
05A1H
Parameter
Attribute：
Parameter for individual axis
Related Section: -
Operational
Interface：
Panel / Software Communication
Default：
10
Control
Mode：
ALL
Unit：
%
Range：
0 ~ 90
Data Size：
16bit
Format：
DEC
