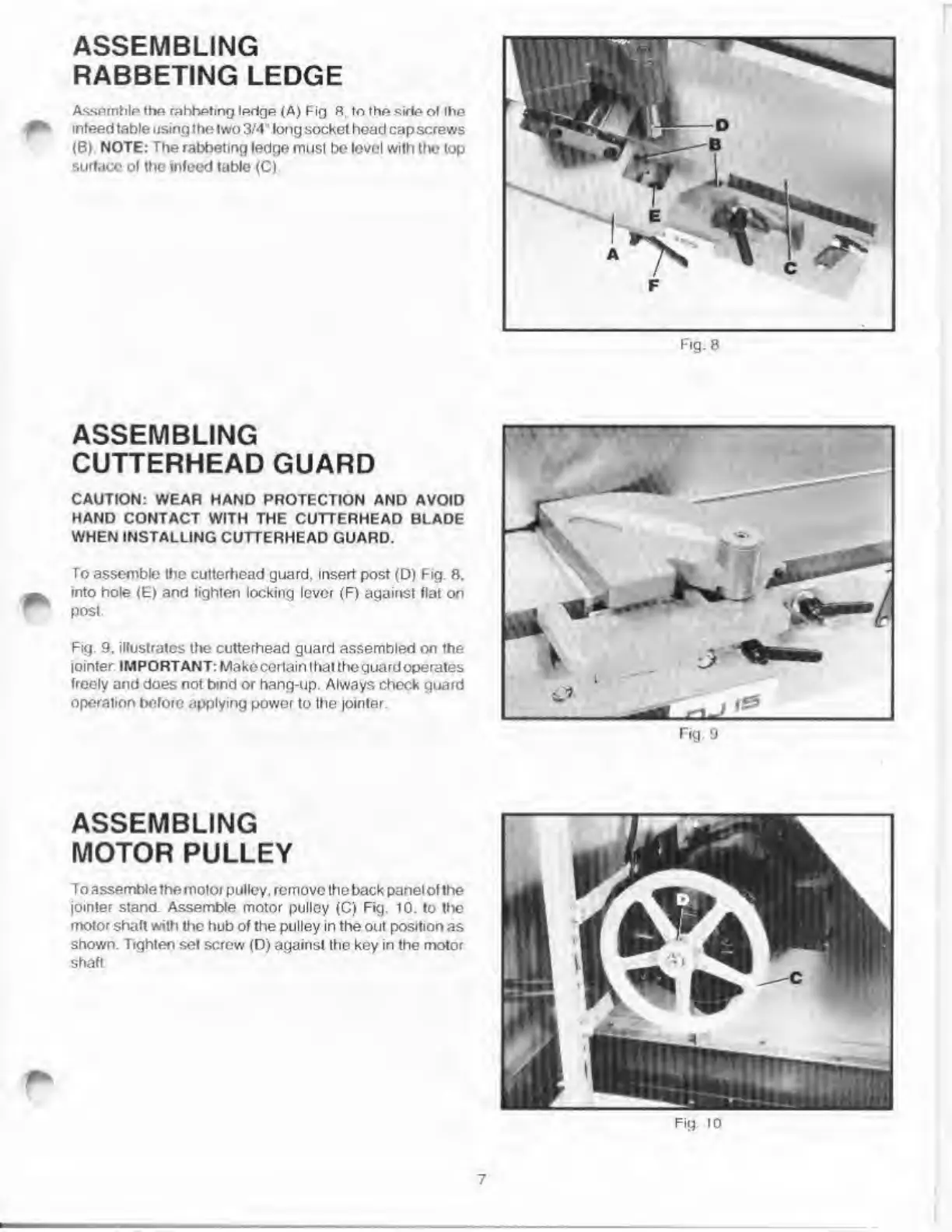

Delta DJ-15 - Assembling Rabbeting Ledge; Assembling Cutterhead Guard; Assembling Motor Pulley

ASSEMBLING
RABBETING LEDGE
AssnmhI p the rahhpfing Ipdge (A) Fig R In the side of the
infeed table using the two 3/4" long socket head cap screws
(B) NOTE: The rabbeting ledge must be level with the top
surface ol the infeed table (cj.
ASSEMBLING
CUTTERHEAD GUARD
CAUTION: WEAR HAND PROTECTION AND AVOID
HAND CONTACT WITH THE CUTTERHEAD BLADE
WHEN INSTALLING CUTTERHEAD GUARD.
To assemble the cutterhead guard, insert post (D) Fig. 8.
^ into hole (E) and tighten locking lever (F) against flat on
post.
Fig. 9. illustrates the cutterhead guard assembled on the
lointer. IMPORTANT: Make certain that the guard operates
Ireely and does not bind or hang-up. Always check guard
operation before applying power to the jointer.
ASSEMBLING
MOTOR PULLEY
T o assemble the motor pulley, remove the back panel of the
jointer stand. Assemble motor pulley (C) Fig. 10. to tf>e
motor shaft with the hub of the pulley in the out position as
shown. Tighten set screw (D) against the key in the motor
shaft
Fig. 8
Fig. 10
7
