1. Drill Press Head and Motor
2. Table
3. Column, Base Flange and Rack
4. Base
5. M8x1.25x25mm Hex Head Cap Screws (4)
6. Worm Gear for Table Raising and Lowering
7. Hex Wrenches (2)
8. Pinion Shaft Handles (3)
9. M8x1.25x125mm Carriage Head Screws (2), M8
Flat Washers (2), M8.1 Lock Washers (2), M8x1.25
Hex Nuts (2) (for fastening the base to a supporting
surface)
10. Chuck Key
11. Table Raising and Lowering Handle
12. Table Clamp
13. Chuck
14. Clamp
15. Mounting bracket
16. Tray
17. Mounting arm
18. Laser
19. Laser Alignment Rod
20. Hex Head Cap Screws (2)
1
2 3
4
5
6789
101112
13
14
15 16
17

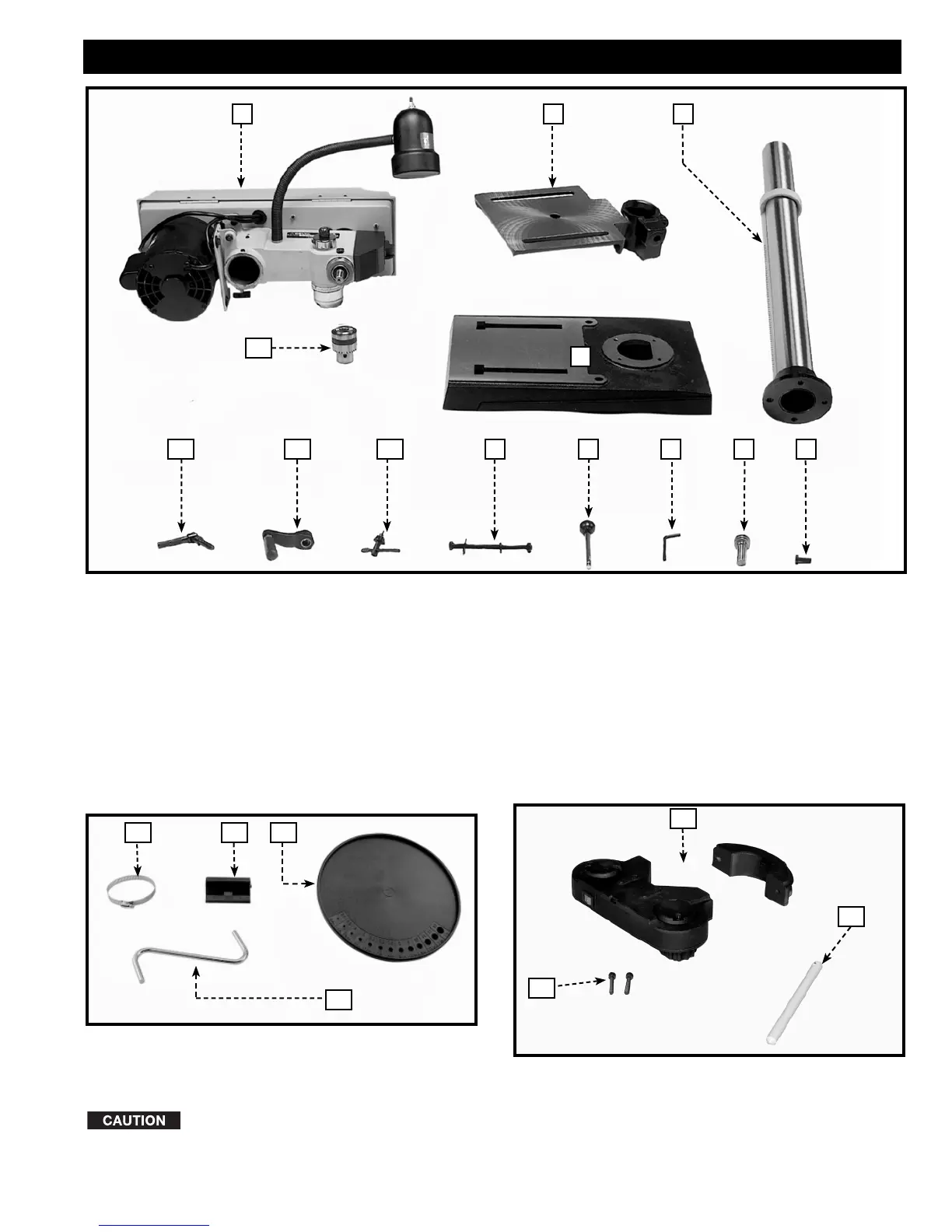

CARTON CONTENTS
18
19
UNPACKING AND CLEANING
Carefully unpack the machine and all loose items from the shipping container(s). Remove the rust-preventative oil from
unpainted surfaces using a soft cloth moistened with mineral spirits, paint thinner or denatured alcohol.
DO NOT USE HIGHLY VOLATILE SOLVENTS SUCH AS GASOLINE, NAPHTHA, ACETONE OR LACQUER
THINNER FOR CLEANING YOUR MACHINE.
After cleaning, cover the unpainted surfaces with a good quality household floor paste wax.
20
9
