DVP-ES2/EX2/EC5/SS2/SA2/SX2/SE&TP Operation Manual - Programming
3
-168
 Alignment mark function can be done in the sections of ramp-up, rump-down and speed.
6. Adding fixed slope function for CH0 and CH1
 Available for the followings
Series
ES2/EX
2
ES2-C ES2-E
12SA2/
SX2
SS2 12SE 26SE 28SA2
Firmware
version
V3.28 V3.28 V1.00 V2.82 V3.24 V2.02 V2.0 V2.9
 Y0 and Y2 relative parameters for fixed slope function:
Output Flag for fixed slope
Special device for the
maximum frequency
Y0 M1604 D1410, D1411
Y2
M1605
D1412, D1413

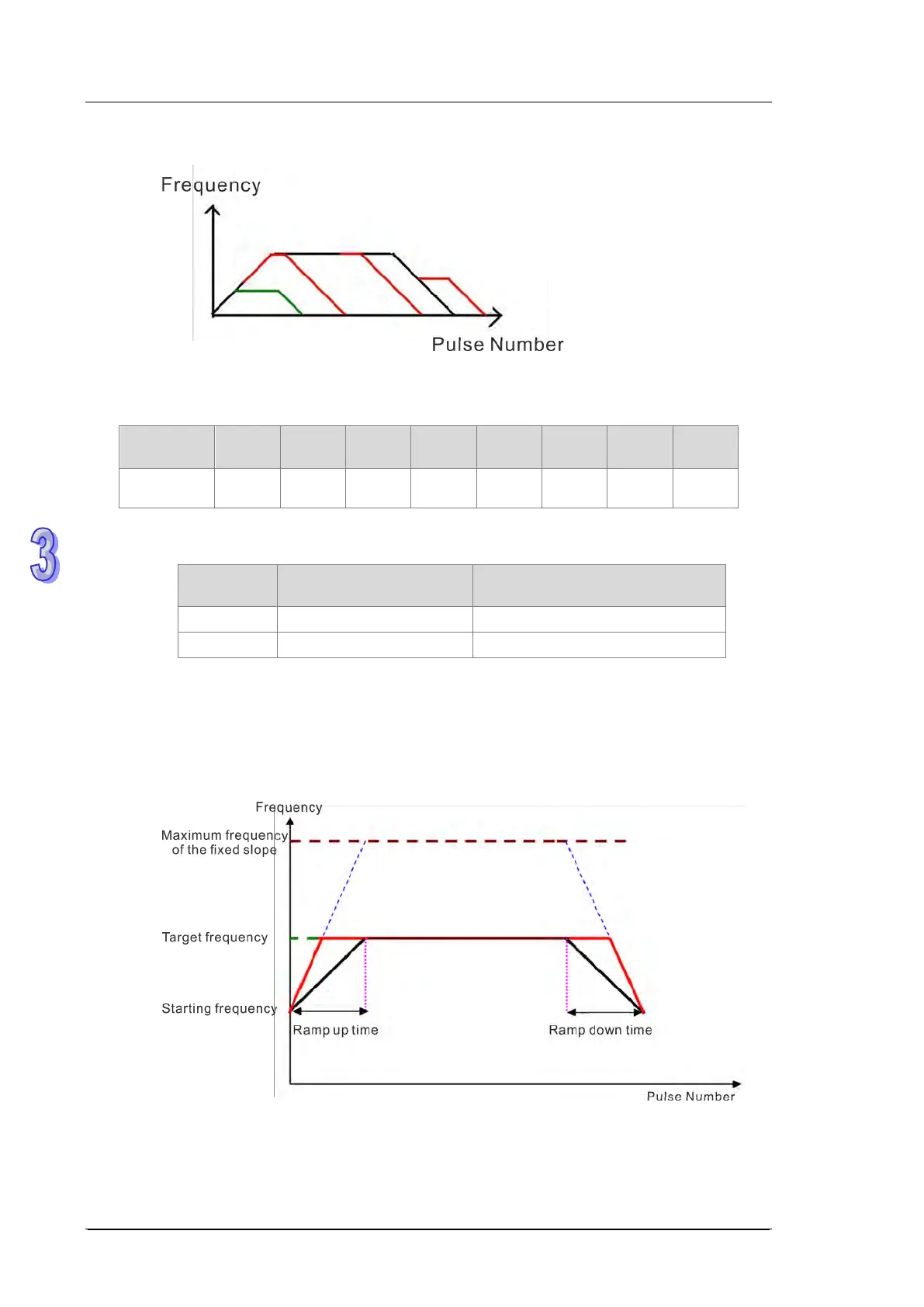

 The frequency for the normal slope is defined by the frequencies of starting, ending and
the target as well as the time of ramp-up and down. See the black line for reference.
The frequency for the fixed slope is defined by the frequencies of starting, ending and the
maximum as well as the time of ramp-up and down. See the red line for reference.
7. Add new functions such as adding alignment marks to the ramping down, the frequency of the
fixed slope and selected masking for the output points Y1 and Y3. The actions are the same as
aforementioned 5 and 6. And the relative parameters are listed below.
