DVP-ES2/EX2/EC5/SS2/SA2/SX2/SE&TP Operation Manual - Programming

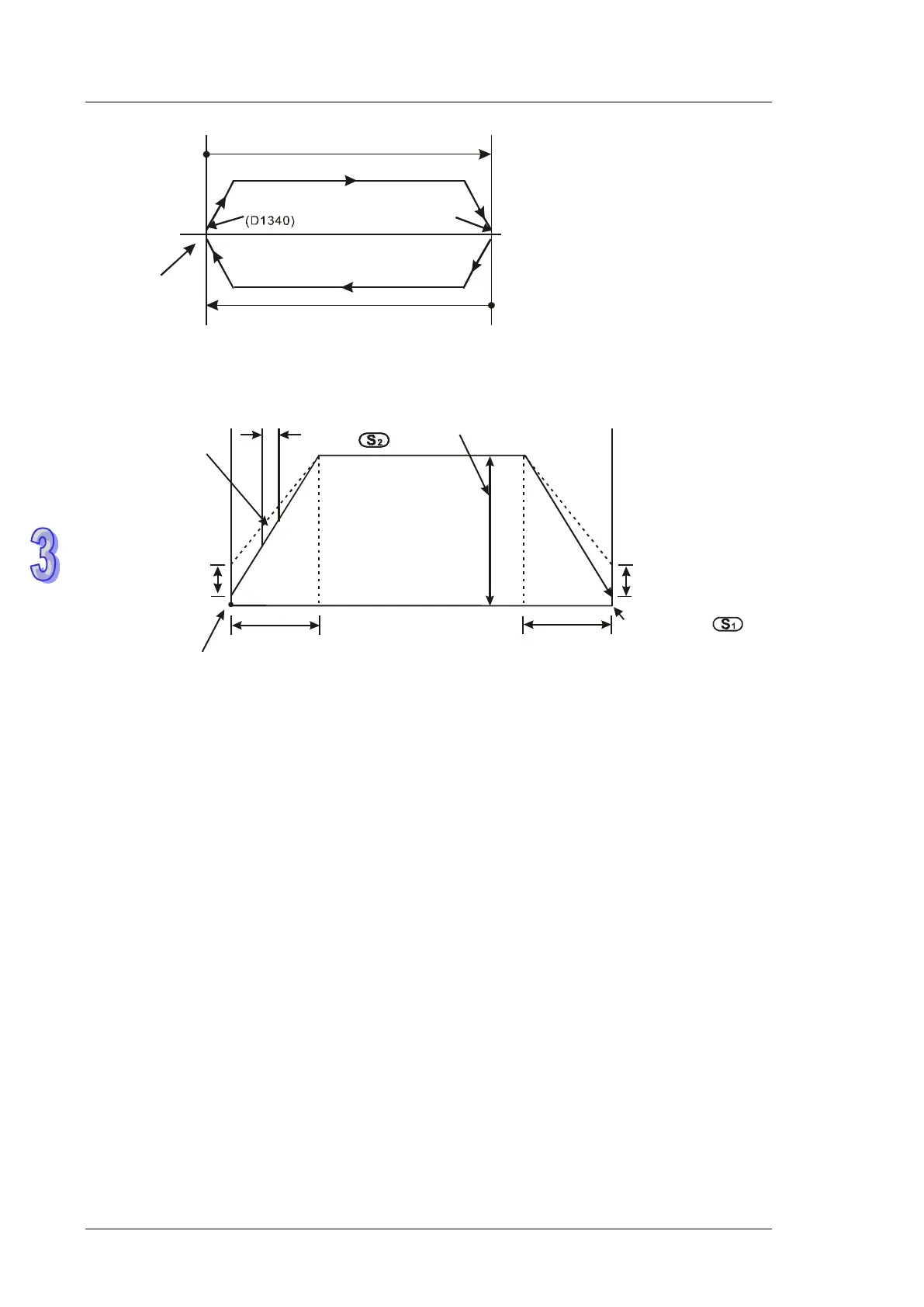

3-490
+3,000
-3,000
Current
position
Ramp up time
Start / End freq. Min: 6Hz
Ramp down time
2. Registers for setting ramp up/down time and start/end frequency:
 Output Y0:
Default: 100ms
Y0(D1343)
Y0(D1340)
Y0 (D1340)
Min: 6Hz
Min: 6Hz
Y0(D1343)
Ramp-up
slope
Sample time
of ramp-up
Pulse output frequency
End freq.
Numbers of
output pulses
Ramp down time
Ramp up time
Default: 100ms
Current
position
Start freq.
 This instruction can be used many times in user program, but only one instruction will be
activated at a time. For example, if Y0 is currently activated, other instructions use Y0 won’t
be executed. Therefore, instructions first activated will be first executed.
 After activating the instruction, all parameters cannot be modified unless instruction is OFF.
3. Associated Flags:
M1029: CH0 (Y0, Y1) pulse output execution completed.
M1102: CH1 (Y2, Y3) pulse output execution completed
M1078: CH0 (Y0, Y1) pulse output pause (immediate)
M1104: CH1 (Y2, Y3) pulse output pause (immediate)
M1108: CH0 (Y0, Y1) pulse output pause (ramp down).
M1110: CH1 (Y2, Y3) pulse output pause (ramp down)
M1119: Enabling the DDRVI/DDRVA two speed output function
M1156: Enabling the mask and alignment mark function on I400/I401(X4) corresponding
to Y0.
M1158: Enabling the mask and alignment mark function on I600/I601(X6) corresponding
to Y2.
