Chapter 8 Parameters ASDA-A2
8-54 Revision February, 2017

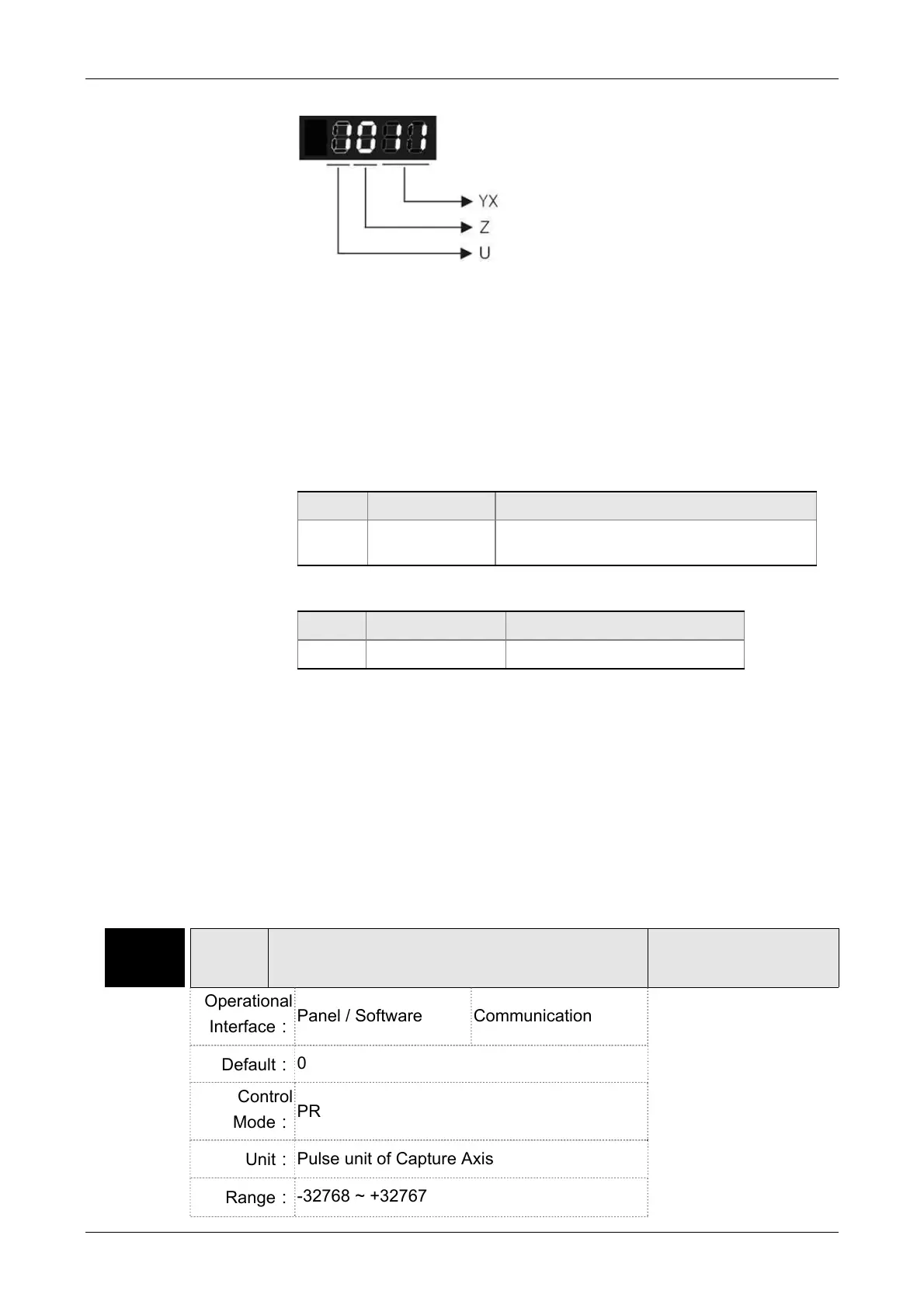

Settings：
YX: Threshold of correction (%)
Z: Filter intensity
U: Filter is functioning (read-only)
(It will be provided after the version of V1.0.38 sub15)
YX: When synchronous axis captures the signal, the system will
calculate the error. This function is enabled only when the error is
less than the setting range. Otherwise, the system will use the new
threshold of correction to perform the operation.
YX 00 01~05F
Function Disabled It will be enabled when error is between 1%
and YX%.
Z: The setting of filter intensity (Bigger value brings less severe change
and better filter effect)
U: Value Definition (read-only):
0: Filter function is disabled. It means the error is greater than Y & X
Range.
1: Filter function is enabled. It means the error is within Y & X range.
If value Z or YX is 0, filter function is disabled.
Z 0 1~F
Function Disabled Average of 2^Z: Enabled
P1-16 CSOF
Capture Synchronous Axis – Offset
Compensation
Address: 0120H
0121H
Operational
Interface：
Panel / Software Communication
Related Section:
Default：
0
Control
Mode：
PR
Unit：
Pulse unit of Capture Axis
Range：
-32768 ~ +32767
