Chapter 11 Specifications ASDA-A2
Revision February, 2017 11-25

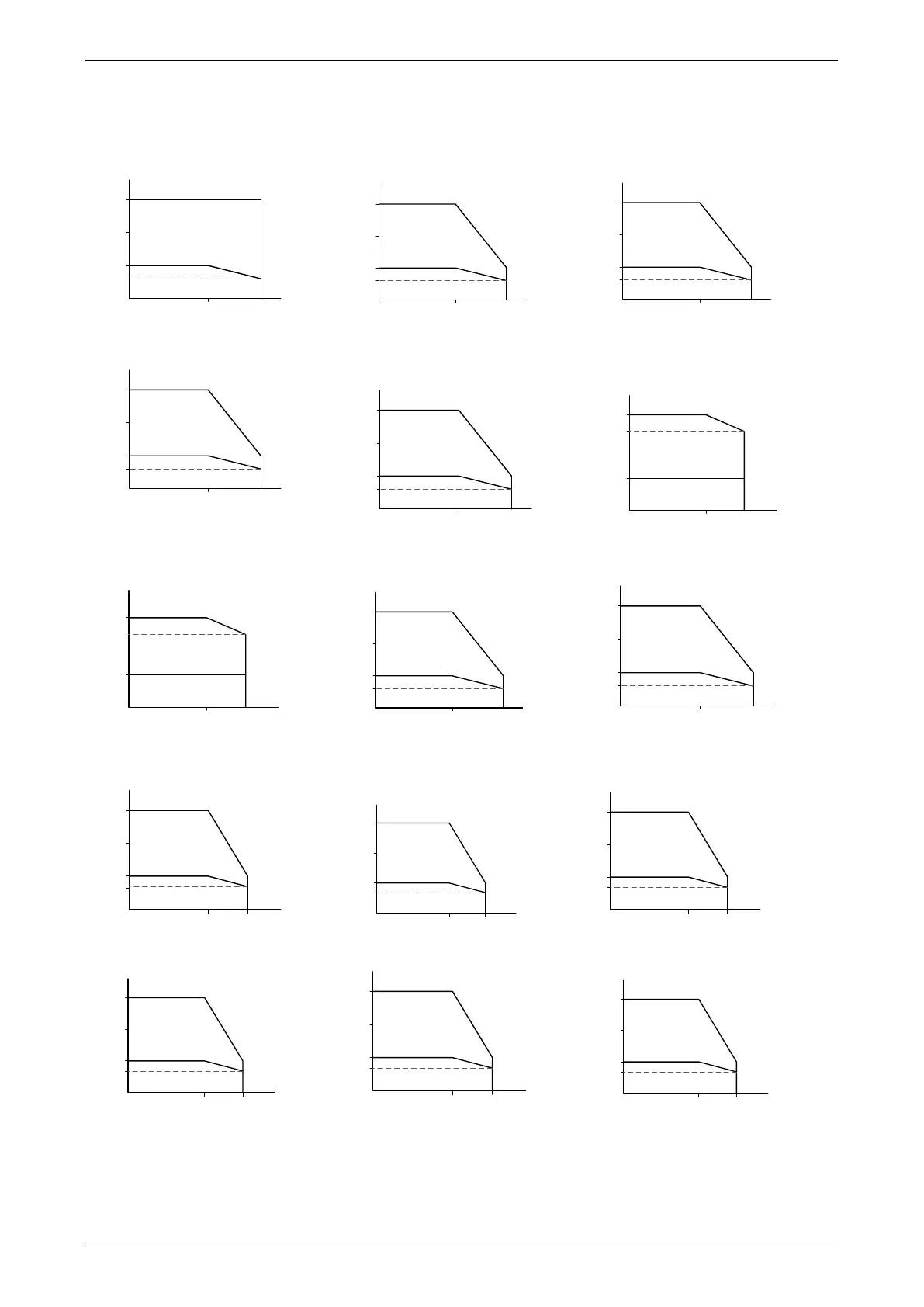

11.3 Torque Features (T-N Curves)
11.3.1 220 V Series
Torque (N-m)
ECMA-CΔ040F□S
50003000
0.095
(60%)
0.477
(300%)
Speed (r/min)
0.159
(100%)
Intermittent Duty
Zone
Continuous Duty Zone
ECMA-CΔ0401□S
50003000
0.19
(60%)
0.96
(300%)
Speed (r/min)
0.32
(100%)
Torque (N-m)
Intermittent Duty
Zone
Continuous Duty Zone
ECMA-CΔ0602□S
50003000
0.38
(60%)
1.92
(300%)
Speed(r/min)
0.64
(100%)
Torque(N-m)
Intermittent
Duty Zone
Continuous Duty zone
50003000
0.76
(60%)
3.82
(300%)
Speed
(r/min)
1.27
(100%)
Torque
(N-m)
Intermittent
Duty Zone
Continuous Duty Zone
ECMA-CΔ0604□S, ECMA-CΔ0604□H
ECMA-CΔ0804□7
50003000
1.43
(60%)
7.16
(300%)
Speed
(r/min)
2.39
(100%)
Torque
(N-m)
Intermittent
Duty Zone
Continuous Duty Zone
ECMA-CΔ0807□S, ECMA-CΔ0807□H
ECMA-CΔ0907□S
30002000
7.14
(298%)
Speed (r/min)
2.38
(100%)
Torque (N-m)
Intermittent
Duty Zone
Continuous
Duty Zone
6.00
(251%)
ECMA-CΔ0910□S
30002000
8.78
(276%)
Speed (r/min)
3.18
(100%)
Torque (N-m)
Intermittent
Duty Zone
Continuous
Duty Zone
5.85
(184%)
ECMA-CΔ1010□S
50003000
1.91
(60%)
9.54
(300%)
Speed (r/min)
3.18
(100%)
Torque (N-m)
Intermittent
Duty Zone
Continuous Duty Zone
ECMA-CΔ1020□S
50003000
3.82
(60%)
19.11
(300%)
Speed (r/min)
6.37
(100%)
Torque (N-m)
Intermittent
Duty Zone
Continuous Duty Zone
ECMA-CΔ1330□4
45003000
6.40
(67%)
28.65
(300%)
Speed (r/min)
9.55
(100%)
Torque (N-m)
Intermittent
Duty Zone
Continuous Duty Zone
ECMA-EΔ1305□S
30002000
1.6
(67%)
7.16
(300%)
Speed (r/min)
2.39
(100%)
Torque (N-m)
Intermittent
Duty Zone
Continuous Duty Zone
ECMA-EΔ1310□S
30002000
3.2
(67%)
14.32
(300%)
Speed (r/min)
4.77
(100%)
Torque (N-m)
Intermittent
Duty Zone
Continuous Duty Zone
ECMA-EΔ1315□S
30002000
4.8
(67%)
21.5
(300%)
Speed (r/min)
7.16
(100%)
Torque (N-m)
Intermittent
Duty Zone
Continuous Duty Zone
ECMA-EΔ1320□S
30002000
6.4
(67%)
28.65
(300%)
Speed (r/min)
9.55
(100%)
Torque (N-m)
Intermittent
Duty Zone
Continuous Duty zone
ECMA-EΔ1820□S
30002000
6.4
(67%)
28.65
(300%)
Speed (r/min)
9.55
(100%)
Torque (N-m)
Intermittent
Duty Zone
Continuous Duty Zone
