ASDA-A2 Chapter 3 Wiring
Revision February, 2017 3-49

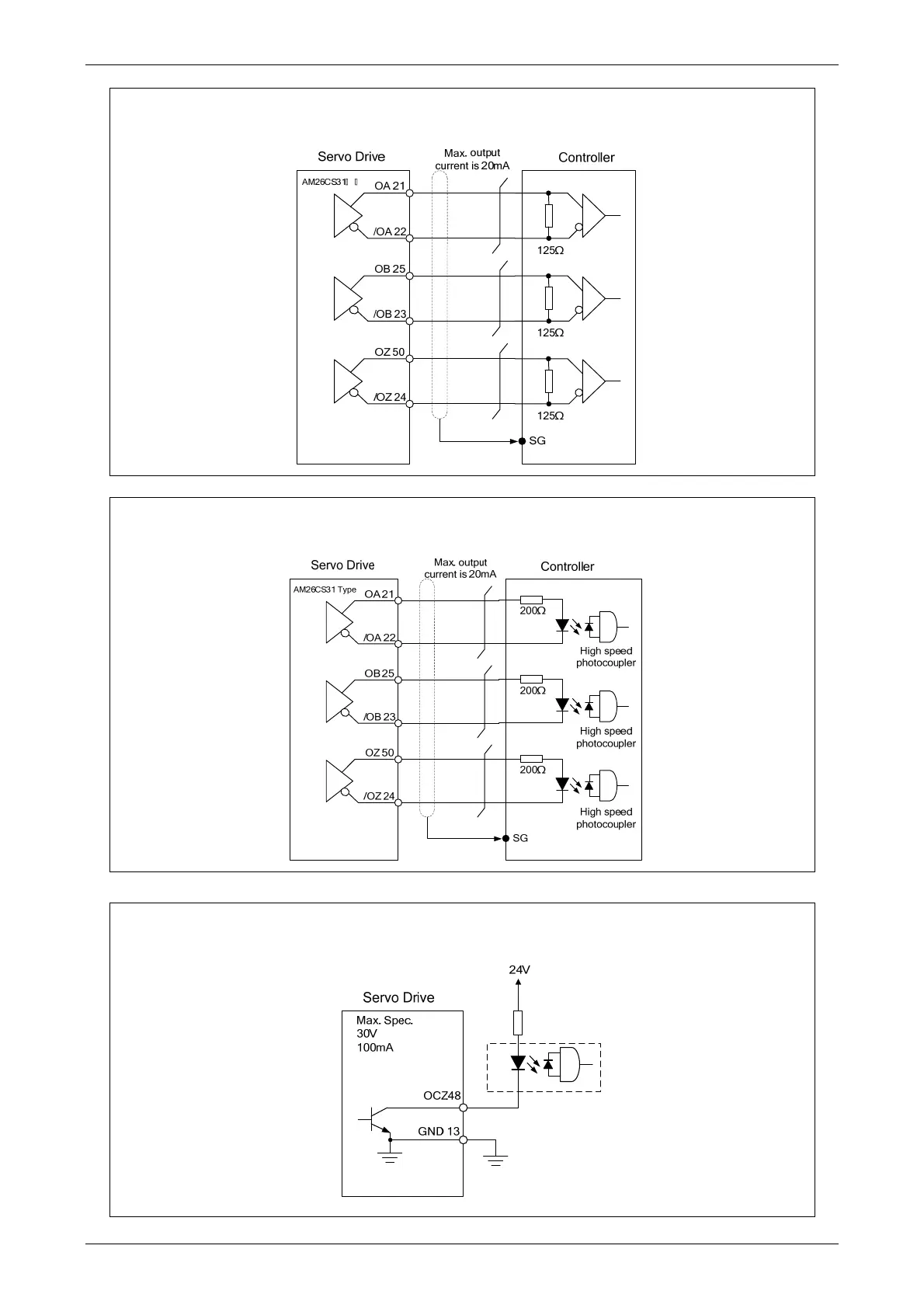

C13: Encoder signal output (Line driver)
C14: Encoder signal output (Opto-isolator)
C15: Encoder OCZ output (open-collector Z pulse output)
