Fig. 18
A

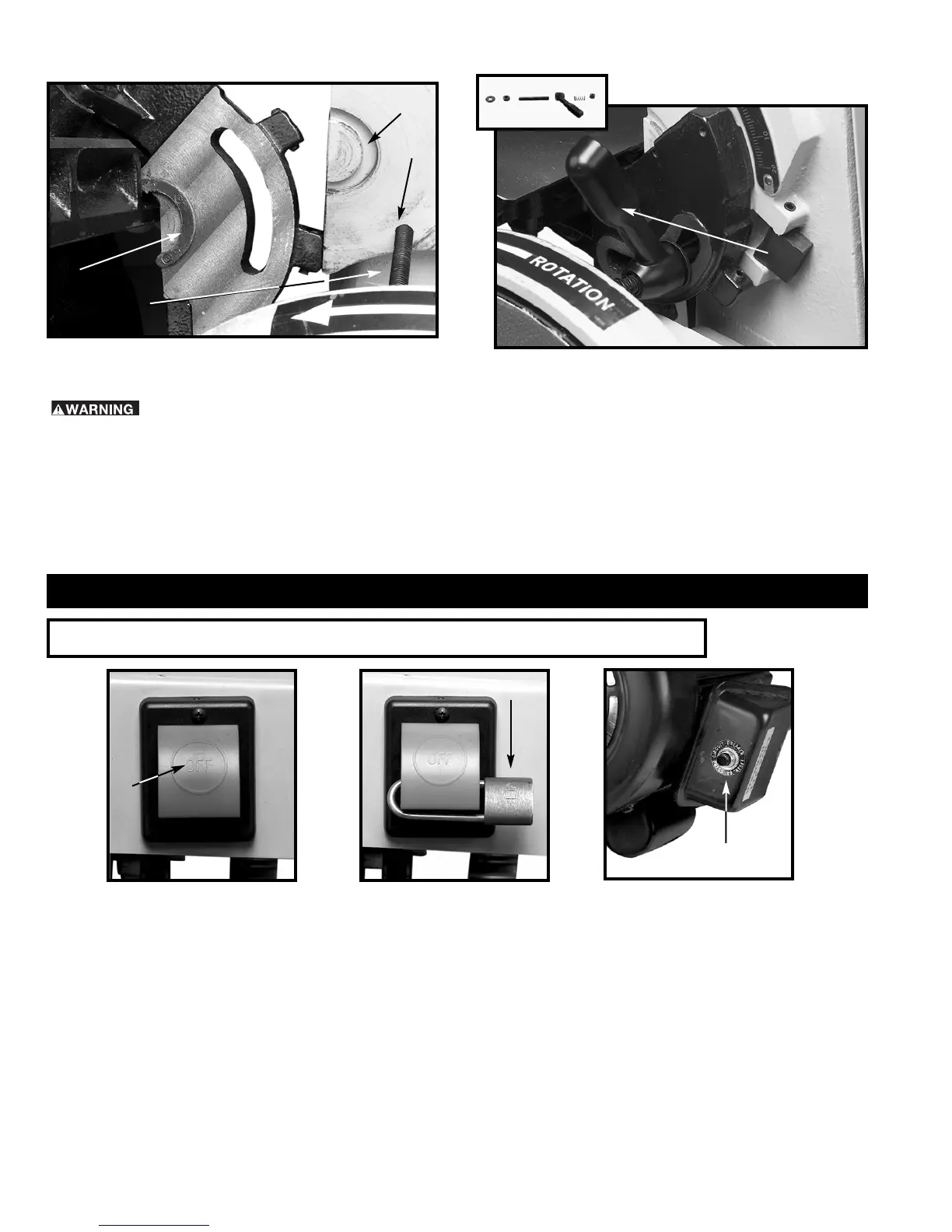

STARTING AND STOPPING THE MACHINE
The on-off switch (A) Fig. 16 is located on the sander base. To turn the sander “ON”, move the switch to the up position. To turn
the sander “OFF”, move the switch to the down position.
Fig. 16
Fig. 17
A
A
12
DISCONNECT MACHINE FROM POWER SOURCE.
1. Insert the trunnion key (A) Fig. 14 into the slot on the side of the sanding arm (B).
2. Thread the stud (C) into the hole (D) on the side of the sanding arm.
3. Attach the washer, nut, lever, spring, and locknut (Inset - Fig 15)
4. Tighten the lever (E) Fig.15.
Fig. 14
A
B
C
Fig. 15
D
ATTACHING BELT TABLE
E
OPERATION
OPERATIONAL CONTROLS AND ADJUSTMENTS
