92344 Rev. A
Installation
6

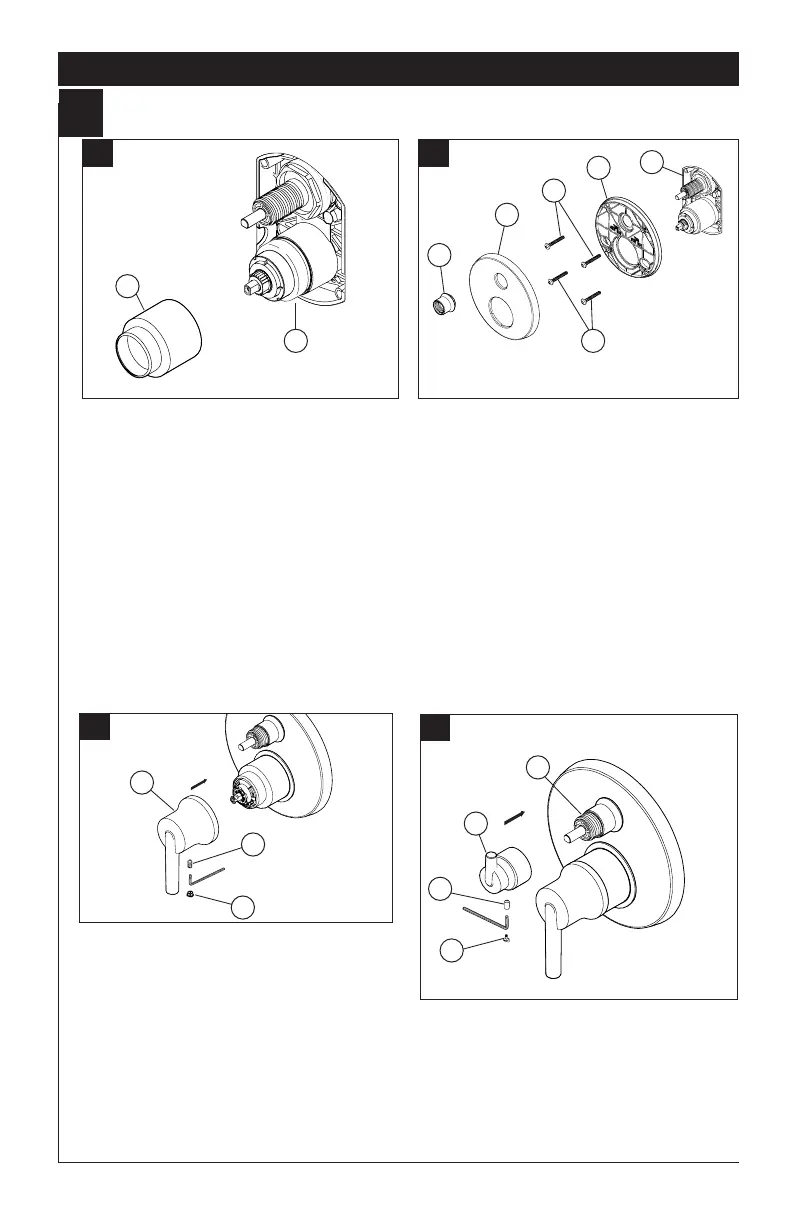

Trim Installation
4
Trim Sleeve Installation
Slide trim sleeve (1) over the bonnet (2), valve
cartridge and rough-in body.
Ensure sleeve is properly positioned over the front
of cartridge.
Escutcheon Installation
For nished wall thickness up to 1 1/8". Secure
the backplate (1) to the rough-in body (2) using 4
screws (3) provided.
Note: Be sure backplate is oriented front side
forward and markings are visible.
Slide escutcheon (4) over valve and diverter
cartridges, thread trim nut (5) provided onto diverter
sleeve.
Note: For thick wall installations, order
installation kit RP90542 to support nished wall
thickness up to 2 1/8".
On rough or uneven surfaces it is necessary to
apply caulk around the backplate (1) to supplement
the seal. Do not caulk the drip notch in the bottom
of the backplate (1). Do not caulk the escutcheon
(4).
1
2
A. B.
1
2
5
4
3
3
C.
Valve Handle Installation
Using an allen wrench, install valve handle (1)
with screw (2). Applying pressure, insert button
(3) until properly seated.
1
2
3
D.
2
1
3
Diverter Handle Installation
Slide diverter handle (1) onto trim sleeve (2).
Using an allen wrench, insert set screw (3) into
handle (1). Applying pressure, insert set screw
cover (4) until properly seated.
4
