Delta RPI M50A

线材压接完成后请按照图 4-13(适用于RPI M30A机种)，以及图 4-14(适用
于RPI M50A机种)组装AC接头。逆变器可接受正相序或负相序连接，意即
L1~L3 连接顺序可调整，但N与PE则必须正确的连接。
1. Fixed this part
2. Rotate to loosen
the AC plug
3. Depart the AC plug.
L1
L2
L3
N
PE
L1
L2
L3
N
PE
4. Insert the wires
5. Tighten the screws to
fixed the wires.
5. Reassemble the AC plug
Inverter
7. Rotate to tighten
the plug
8. Rotate the gland to
fix wires
6. Connect the AC plug
to inverter

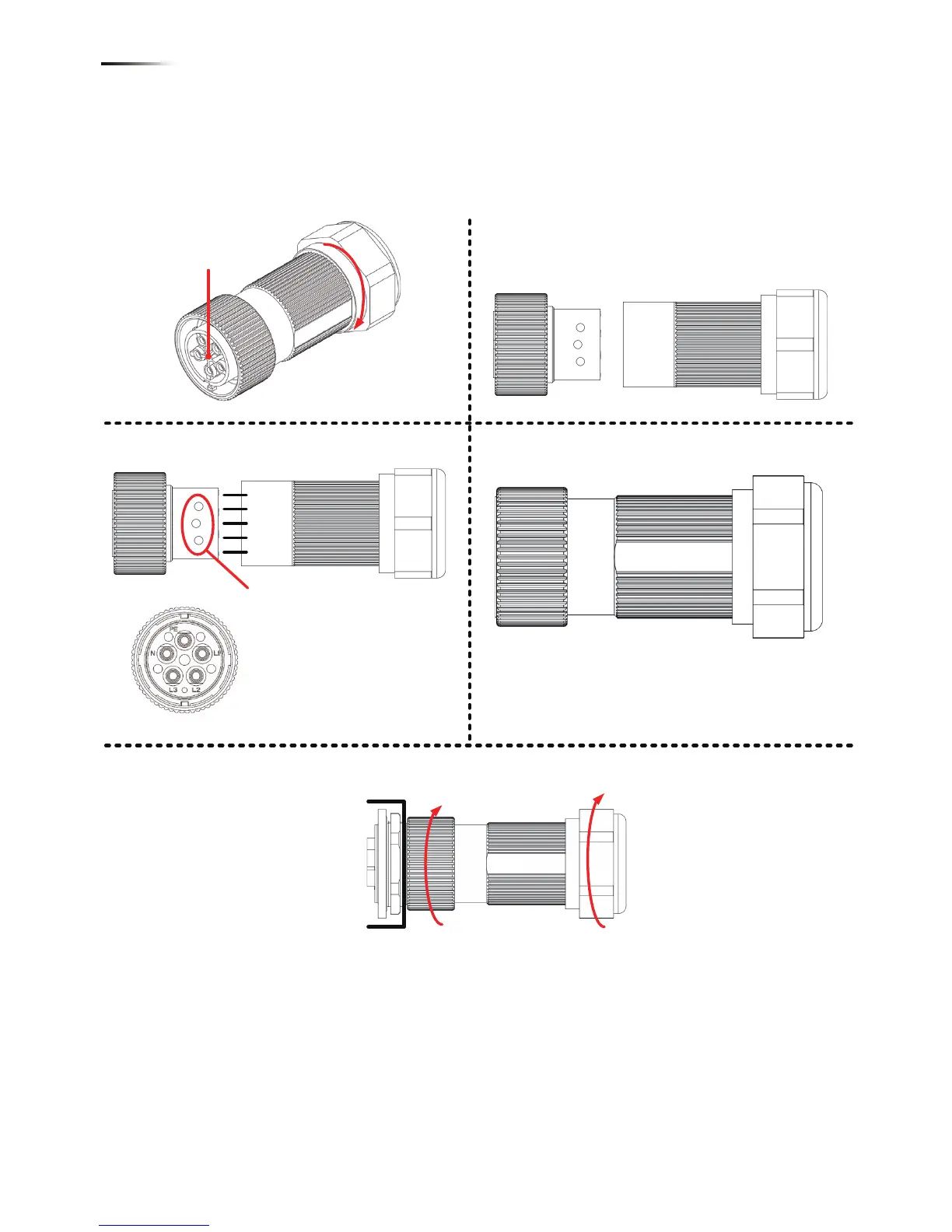

图4-13 RPI M30A之AC接头配线图.
108
配 线
