Delta RPI M50A

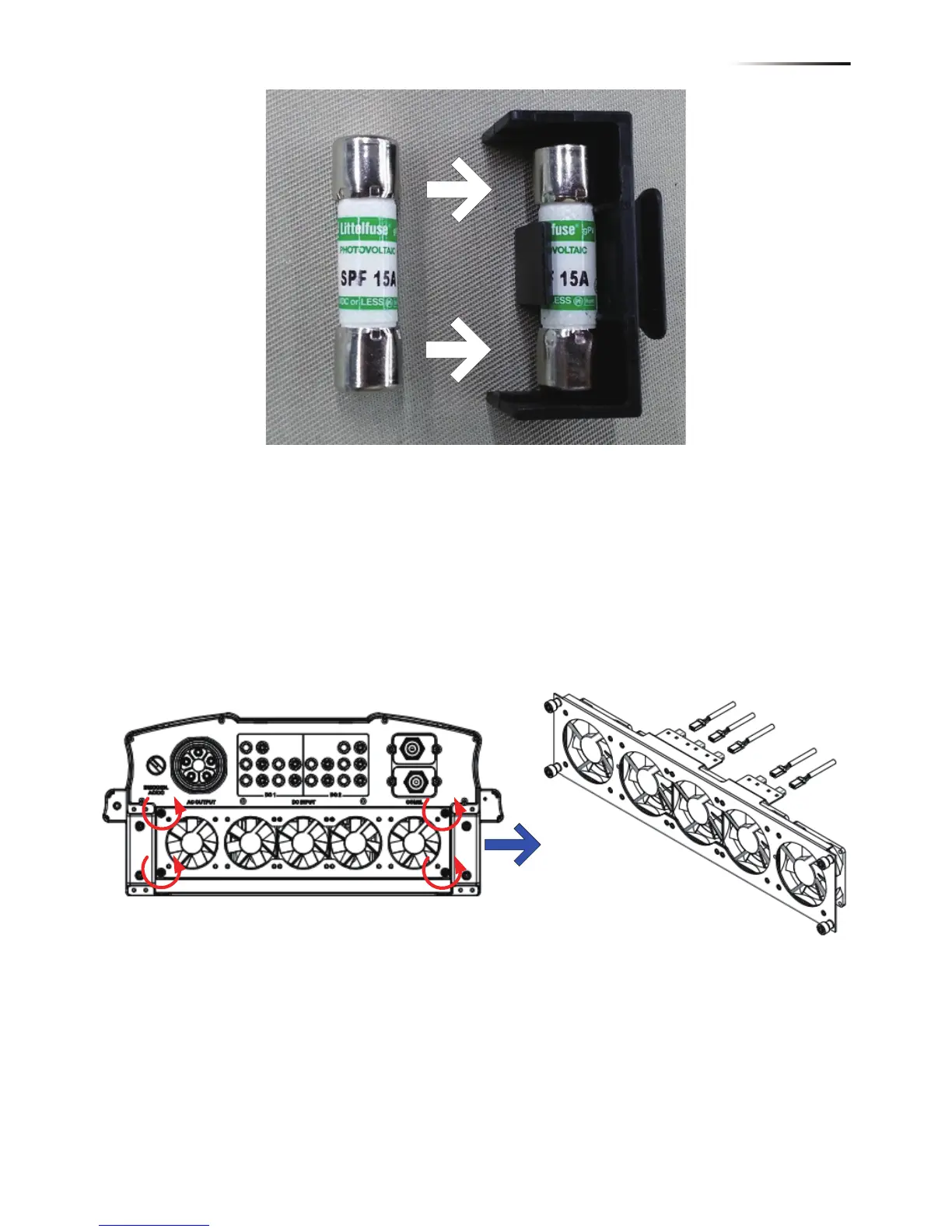

Figure 6-5 Replace the fuse
Figure 6-6 Diassembling fan panel
6.3 Clean Fan
Loosen the 4 screws shown in Figure 6-1. Once the screws are loose, pulling
the fan bracket out will expose the connectors. Each fan has one wire
connected.
59
Maintenance
