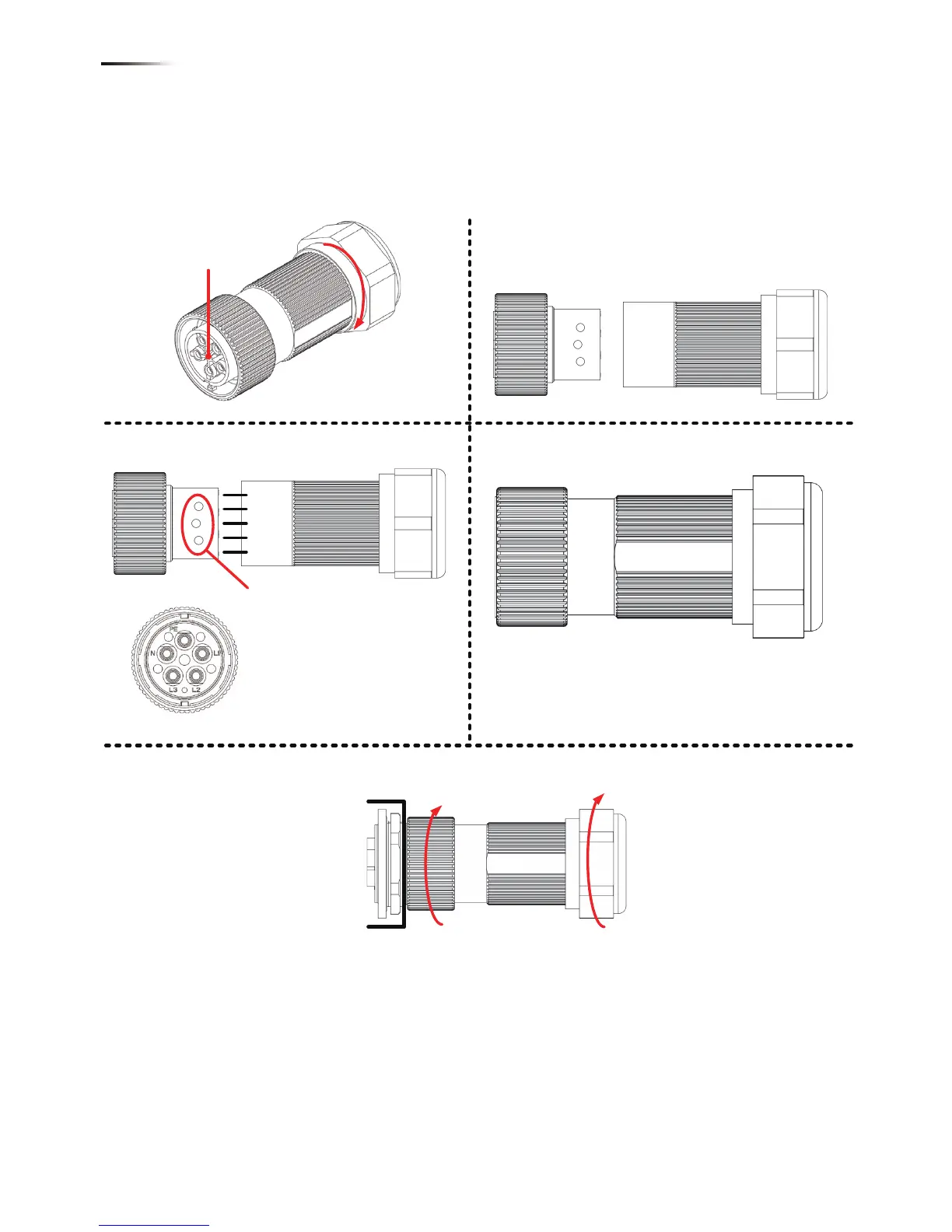

線材壓接完成後請按照圖 4-13(適用於RPI M30A機種)，以及圖 4-14(適用
於RPI M50A機種)組裝AC接頭。逆變器可接受正相序或負相序連接，意即
L1~L3 連接順序可調整，但N與PE則必須正確的連接。
1. Fixed this part
2. Rotate to loosen
the AC plug
3. Depart the AC plug.
L1
L2
L3
N
PE
L1
L2
L3
N
PE
4. Insert the wires
5. Tighten the screws to
fixed the wires.
5. Reassemble the AC plug
Inverter
7. Rotate to tighten
the plug
8. Rotate the gland to
fix wires
6. Connect the AC plug
to inverter
圖4-13 RPI M30A之AC接頭配線圖.
184
配 線

Delta RPI M50A Specifications

General

Brand	Delta
Model	RPI M50A
Category	Inverter
Language	English
