Delta RPI M50A

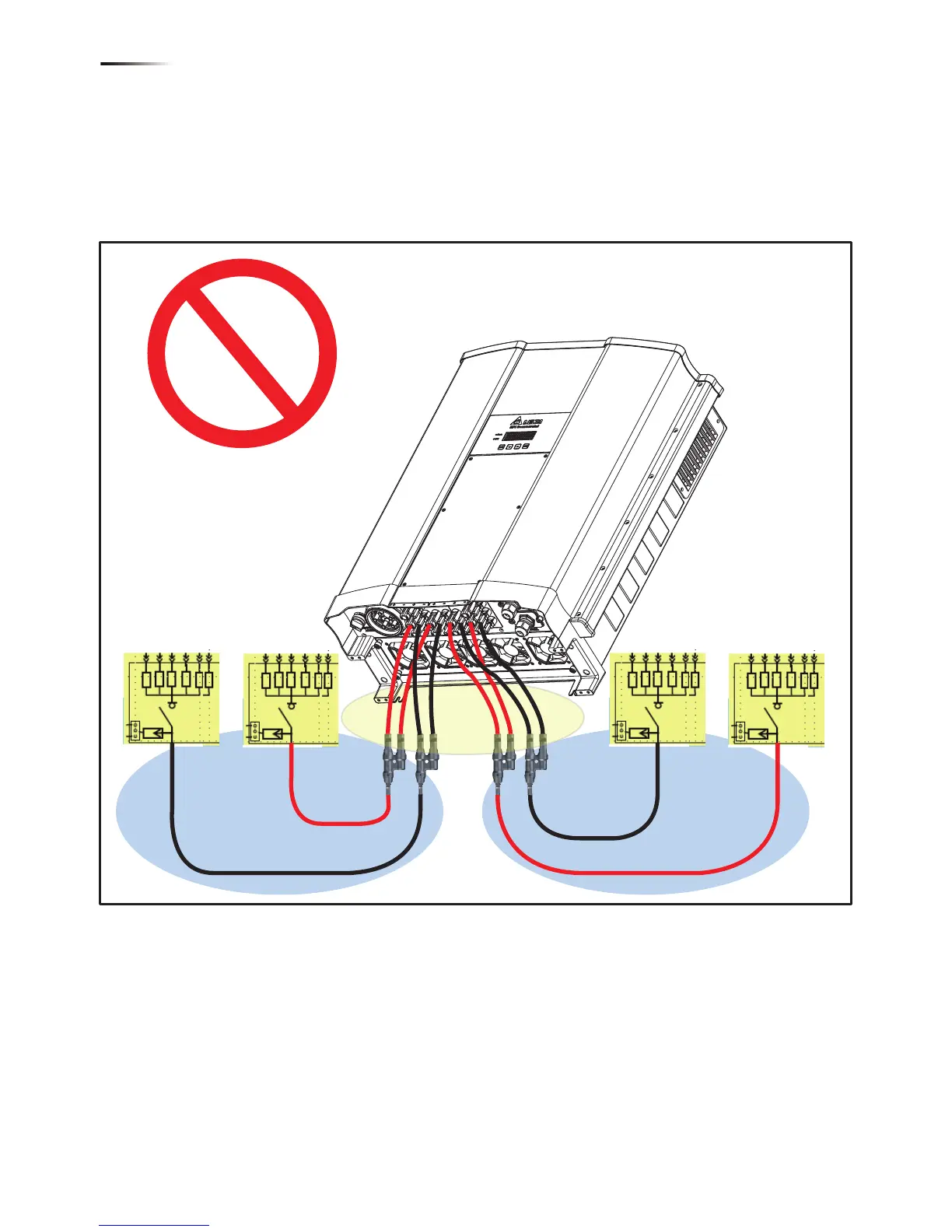

-Also, you can’t use two or more branch to share the current from combiner
box to each dc connector of inverter (Shown as Figure 4-8).
Because the current might not be symmetric among the branch,the current
of one branch might larger than the limitation still.
Figure 4-8
>16A
>16A
>16A
>16A
Strictly forbiden
Risk of fire on internal
entrance cabling
M50A:
24
Wiring
