Delta RPI M50A

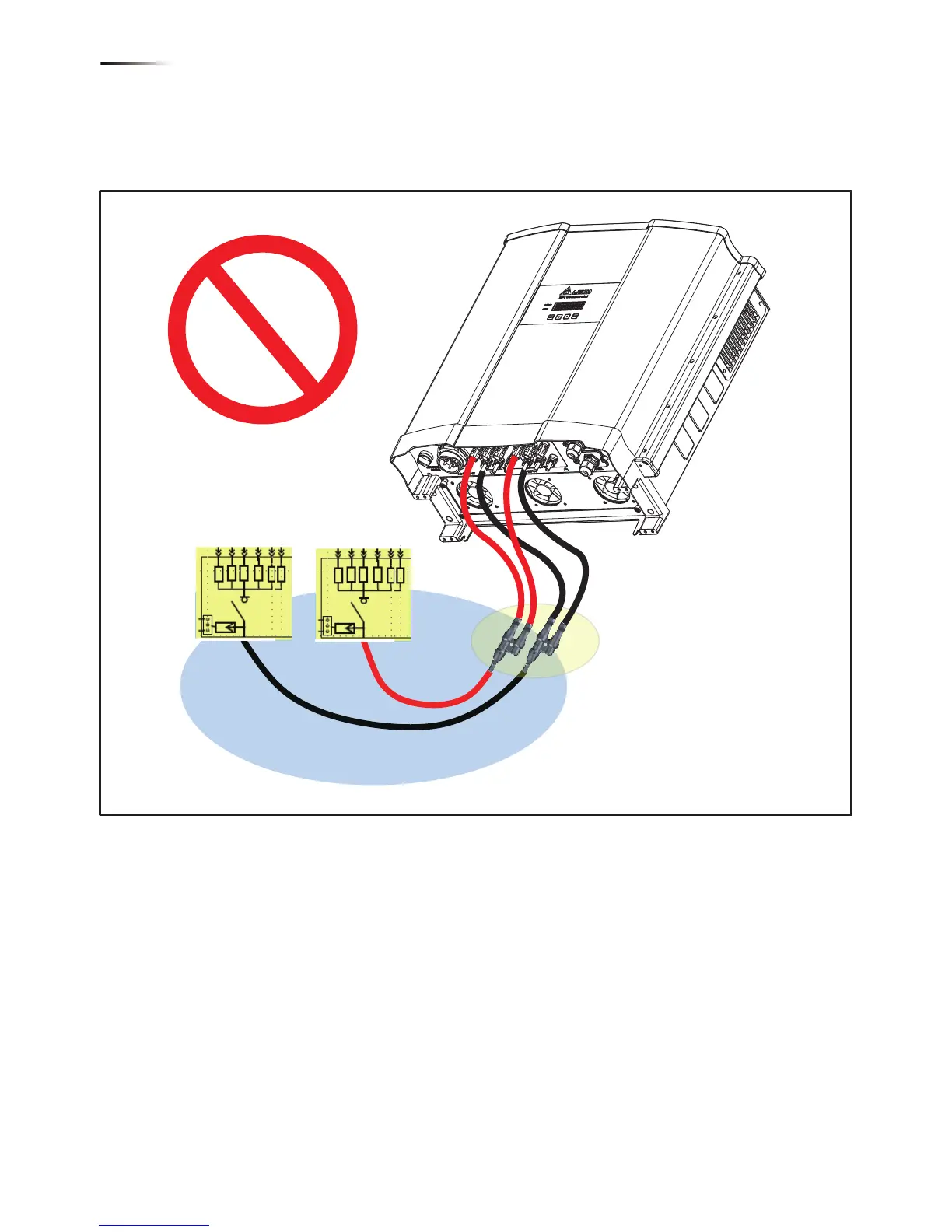

As Figure 4-11 shown , the branch plug might suffer the DC current lager
than its limitation. Thus it is not suitable for use.
*Note that the max current rating of MC4 brauch commercially available is
30A.
Figure 4-11
>30A
*Note
>30A
M30A:
26
Wiring
