Delta RPI M50A

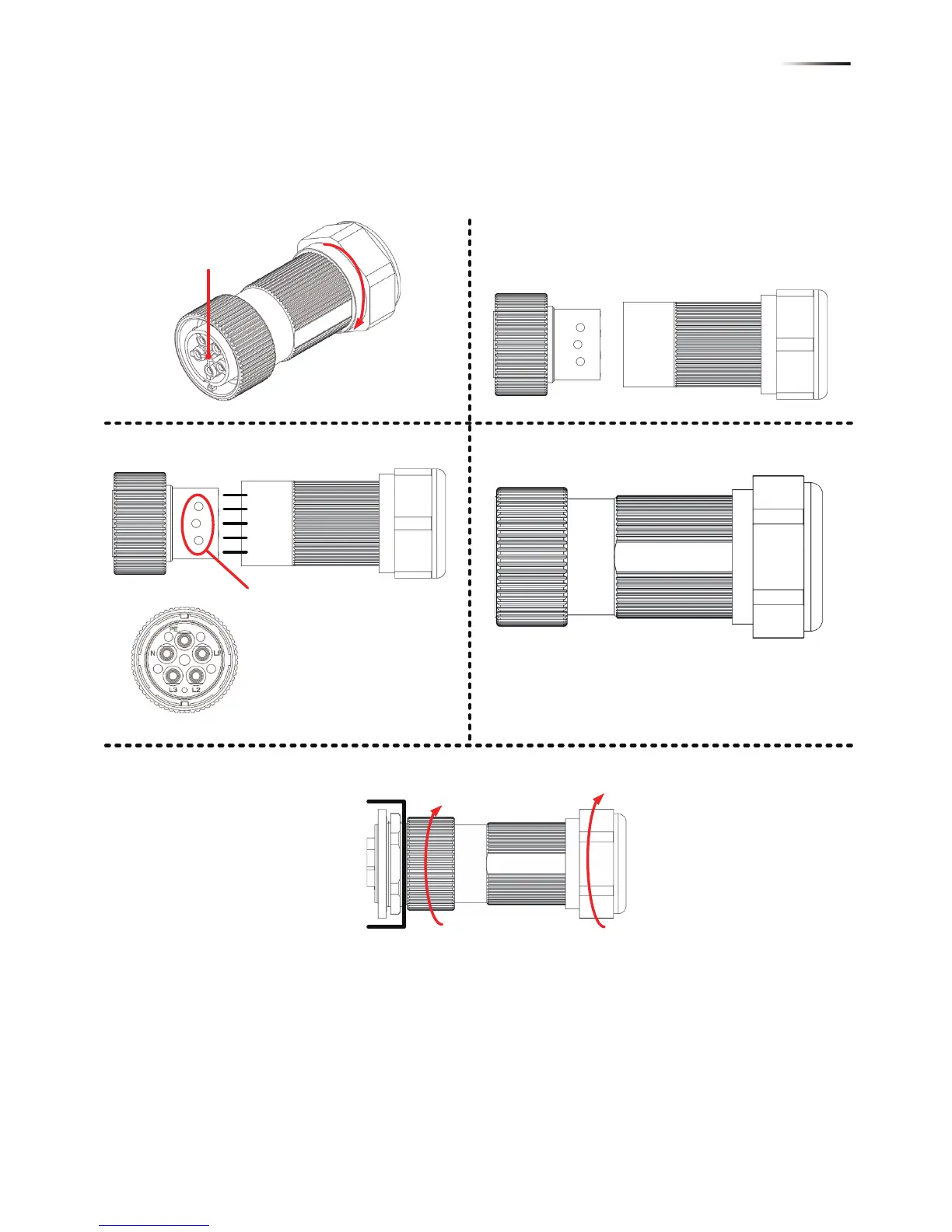

Assemble the AC plug and wires as the procedures shown in Figure 4-13
(RPI M30A) and Figure 4-14 (RPI M50A). The sequence of L1~ L3 can be
connected randomly. However, N and PE must be connected correctly.
1. Fixed this part
2. Rotate to loosen
the AC plug
3. Depart the AC plug.
L1
L2
L3
N
PE
L1
L2
L3
N
PE
4. Insert the wires
5. Tighten the screws to
fixed the wires.
5. Reassemble the AC plug
Inverter
7. Rotate to tighten
the plug
8. Rotate the gland to
fix wires
6. Connect the AC plug
to inverter
Figure 4-13 AC plug illustration for M30A
33
Wiring
