Delta TP70P-211LC1T - Terminal Arrangement and Profiles

TP70P-211LC1T/TP04P-20EXL1T Operation Manual
2-2
_ 2

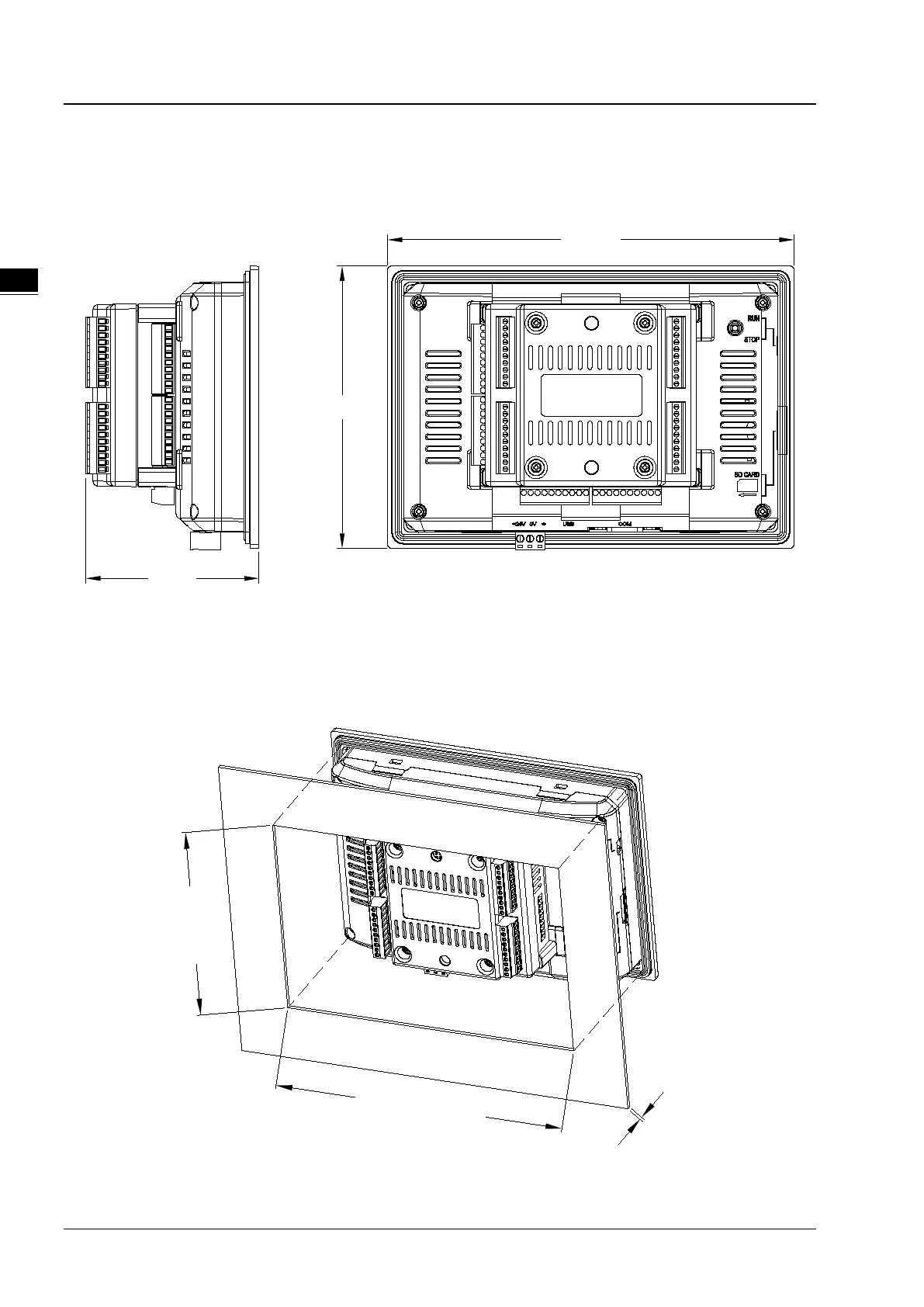

2.1 Profile and Arrangement of Terminals
2.1.1 TP70P-211LC1T
 Profile
87.7
205.6
142.6
Unit: mm
 Opening Dimensions
The opening size should be within the tolerance limits of ±0.1mm to ensure a waterproof and dustproof
installation.
127.1
~
128.0
190.1~191.0
0.5~4.0
Unit: mm
