TP70P-211LC1T/TP04P-20EXL1T Operation Manual
3-2
With an operational interface, TP70P-211LC1T and TP04P-20EXL1T allow you to perform basic operations before you
have your own programs ready. You can check if the connections are well secured, if the set testing functions meet your
requirements and many more. This helps you to quickly calibrate your device or troubleshoot problems if they ever occur.
Below are the operational interface introductions.
3.1 TP70P-211LC1T Operational Interface

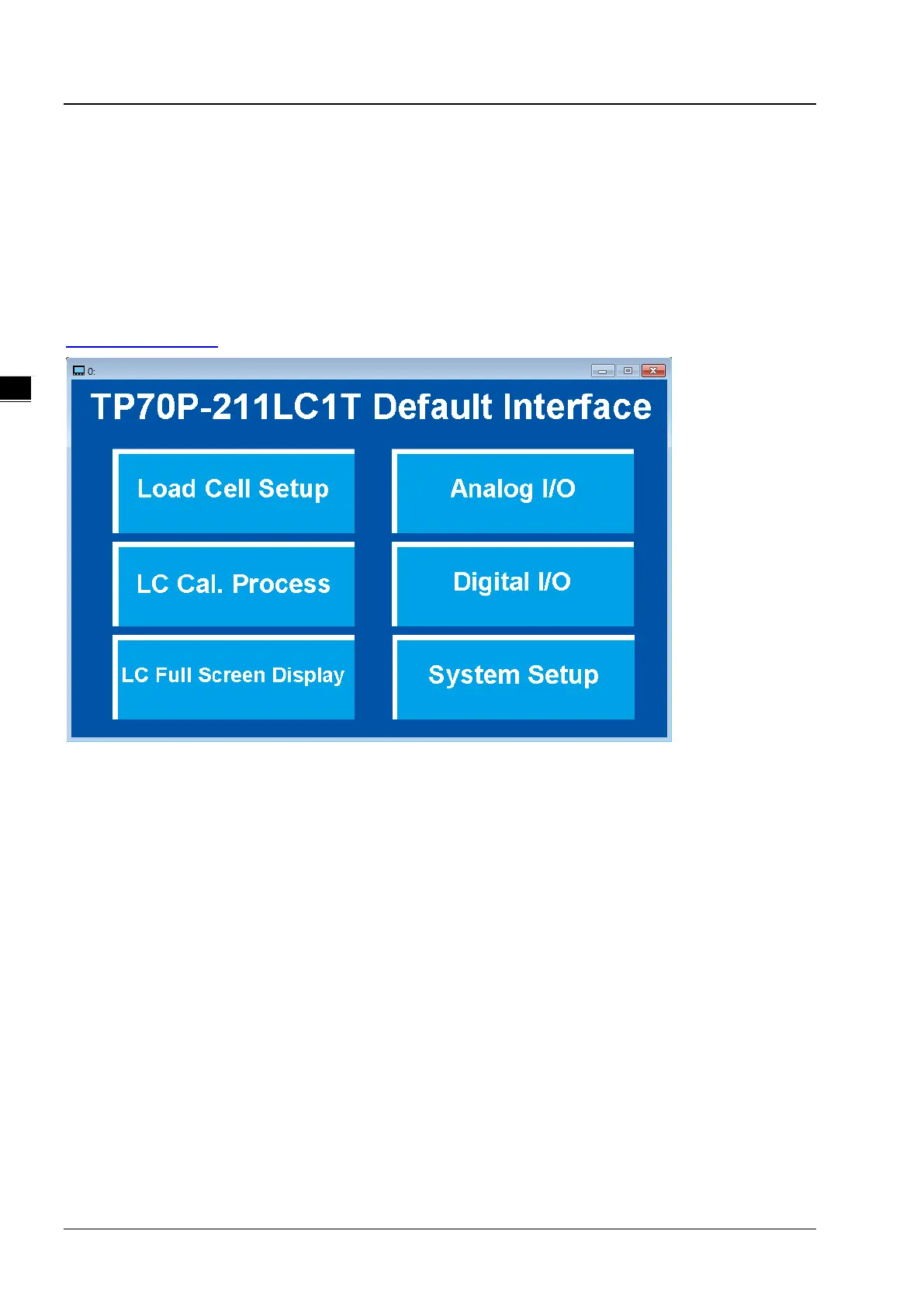

The default operational interface is as the image shown below; you can download the program in Delta’s official website:
http://www.deltaww.com/
On the main setting menu, you can find six main setting items.
1. Load cell Setup
TP70P-211LC1T is a one-channel load cell with multiple functions. You can use its friendly interface to set up the
setting items including excitation voltage, eigenvalue mode, response time mode and configure the parameters for
load cell related functions.
2. LC Cal. Process
Before using load cell related functions, you need to calibrate TP70P-211LC1T to ensure the measurements are
going to be accurate. Without other software or programs, you can use the LC Cal. Process function on the main
setting menu to complete the calibration.
3. LC Full Screen Display
Here you can find different kinds of weight values. You can set up how many digits to be shown, select weight units
between kilogram and gram, reset the values to zero and many more.
4. Analog I/O
TP70P-211LC1T is with two-channels of multi-analog inputs and four-channels of analog current outputs. You can set
up different modes for each channel, read input values and set up output values under this setting item.
