(10) Digit Setup
Up to 10 digits (integers) to the left of the decimal point can be shown but only 1 digit to the right of the decimal point
can be displayed. Use the directional arrows to define how many digits (integers) to the left of the decimal points to be
shown.
3.1.4 Analog I/O

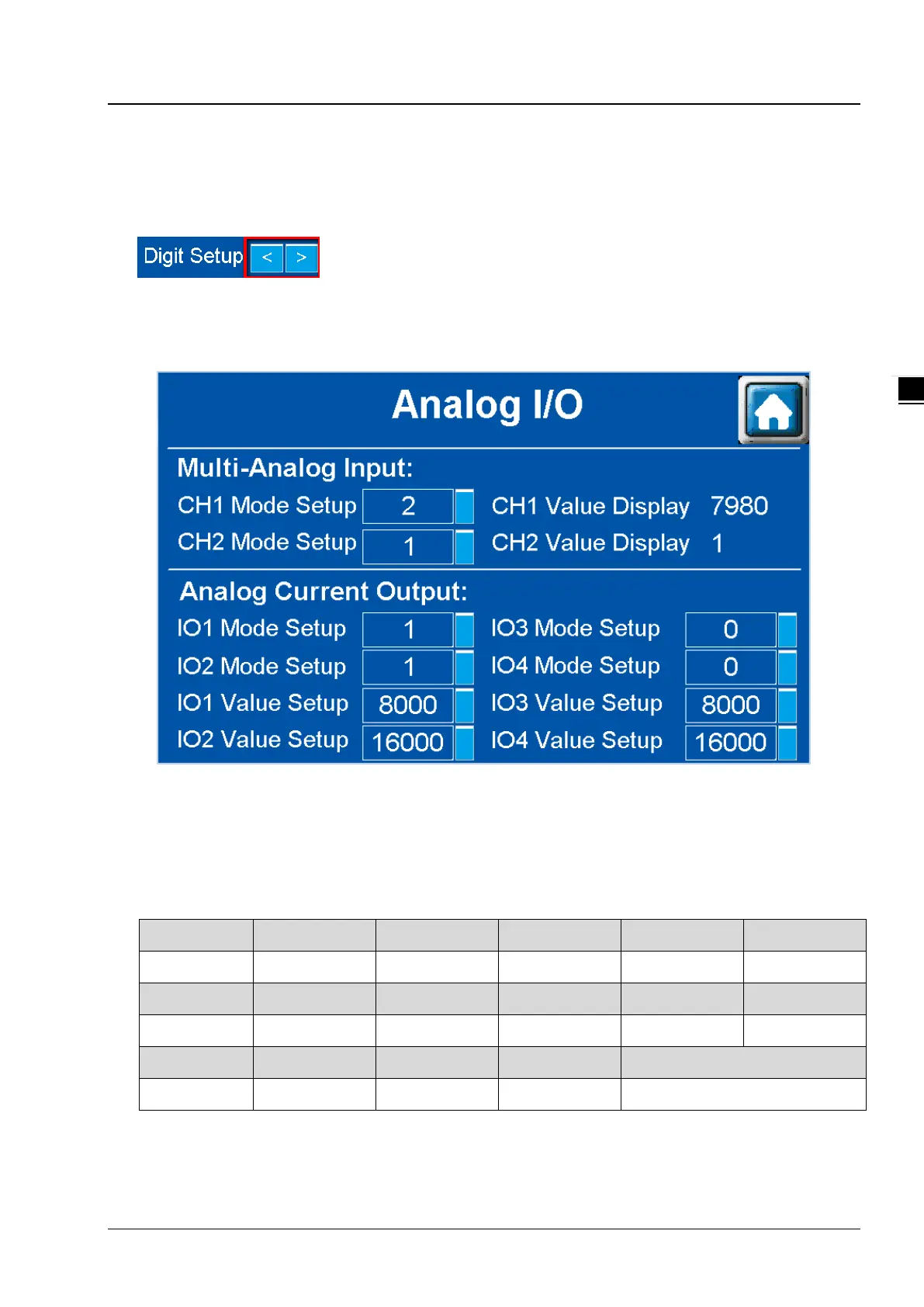

Press Analog I/O from the main setting menu to display its corresponding setting page.
TP70P-211LC1T is with two-channels of multi-analog inputs and four-channels of analog current outputs. You can set up
different modes for each channel, read input values and set up output values under this setting item. You can perform
basic operations including system adjustments and checks before you have your own programs ready.
Descriptions on the multi-analog inputs and analog current outputs:
Multi-analog inputs
(1) Setting up the channel mode
Channel Mode
-1 0 (default) 1 2 3
Description
channel closed 0 ~ 5 V 0 ~ 10 V 0 ~ 20 mA 4 ~ 20 mA
Channel Mode
4 5 6 7 21
Description
4 ~ 50 mV Pt100 sensor JPt100 sensor Pt1000 sensor Cu50 sensor
Channel Mode
22 23 24 25
Description
Cu100 sensor Ni100 sensor Ni1000 sensor LG-Ni1000 sensor
