Delta TP70P-211LC1T User Manual

TP70P-211LC1T/TP04P-20EXL1T Operation Manual
4-4
_4

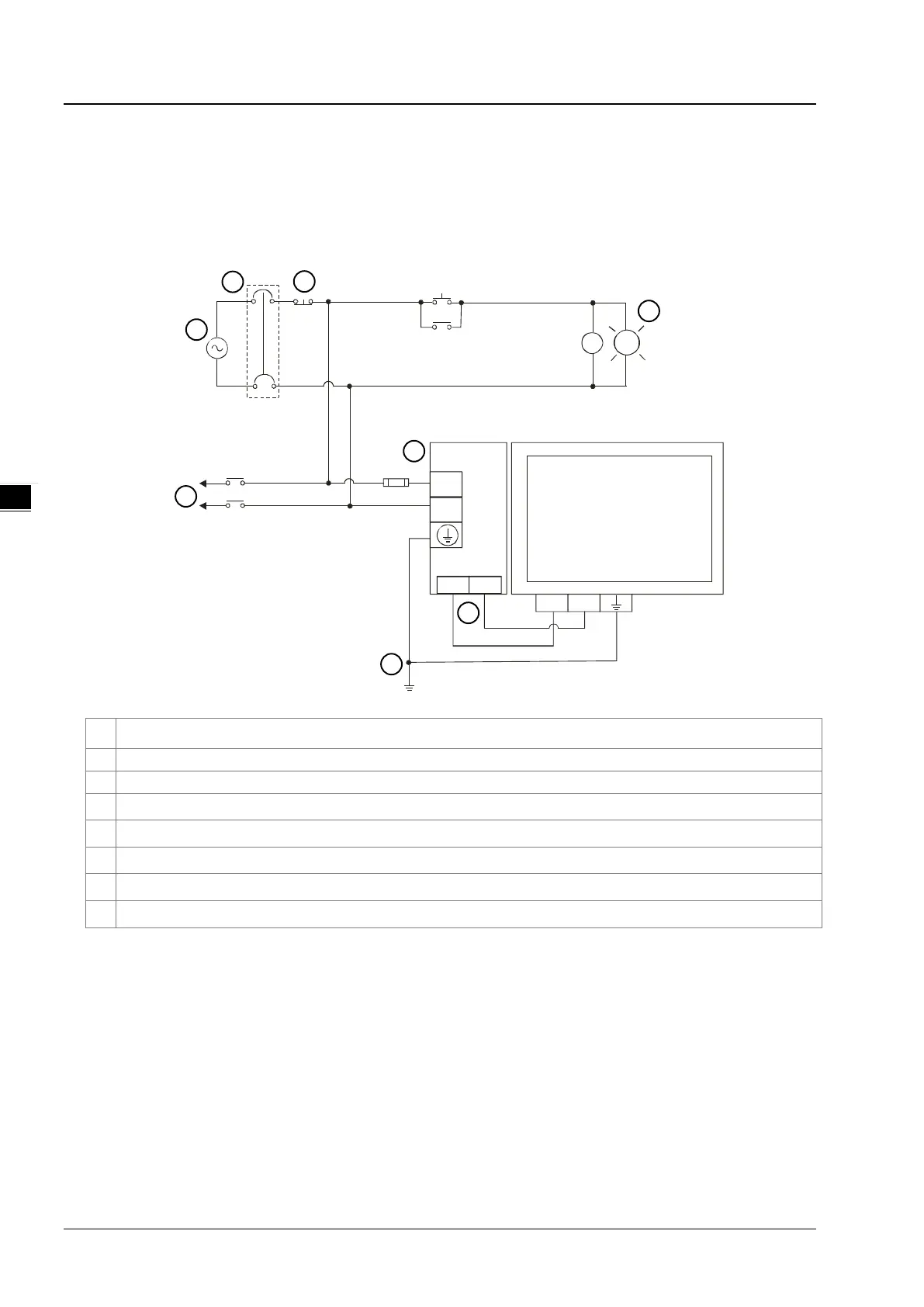

3. Only DC power supply can be used for TP70P-211LC1T and TP04P-20EXL1T. You can use Delta power supply
modules such as DVPPS01, DVPPS02, and DVPPS05 to supply DC power for TP70P-211LC1T and
TP04P-20EXL1T. Refer to the following for a better protected circuit for DVPPS01, DVPPS02, and DVPPS05.
24V 0V
AC
100~240V
50/60Hz
2A
DVPPS02
L
N
MC
TP70
+24V 0V
1
2
3
4
7
6
8
5
①
AC power supply: 100 ~ 240 VAC, 50/60 Hz
②
Circuit breaker
③
Emergency stop button: used to cut power off when an emergency occurs
④
Power indicator
⑤
AC load
⑥
2 A fuse
⑦
Ground (impedance: below 100 Ω)
⑧
DC power supply: 24 VDC

Delta TP70P-211LC1T Specifications

General

Brand	Delta
Model	TP70P-211LC1T
Category	Touch Panel
Language	English
