TP70P-211LC1T/TP04P-20EXL1T Operation Manual
4-12
_4
TP04P-20EXL1T

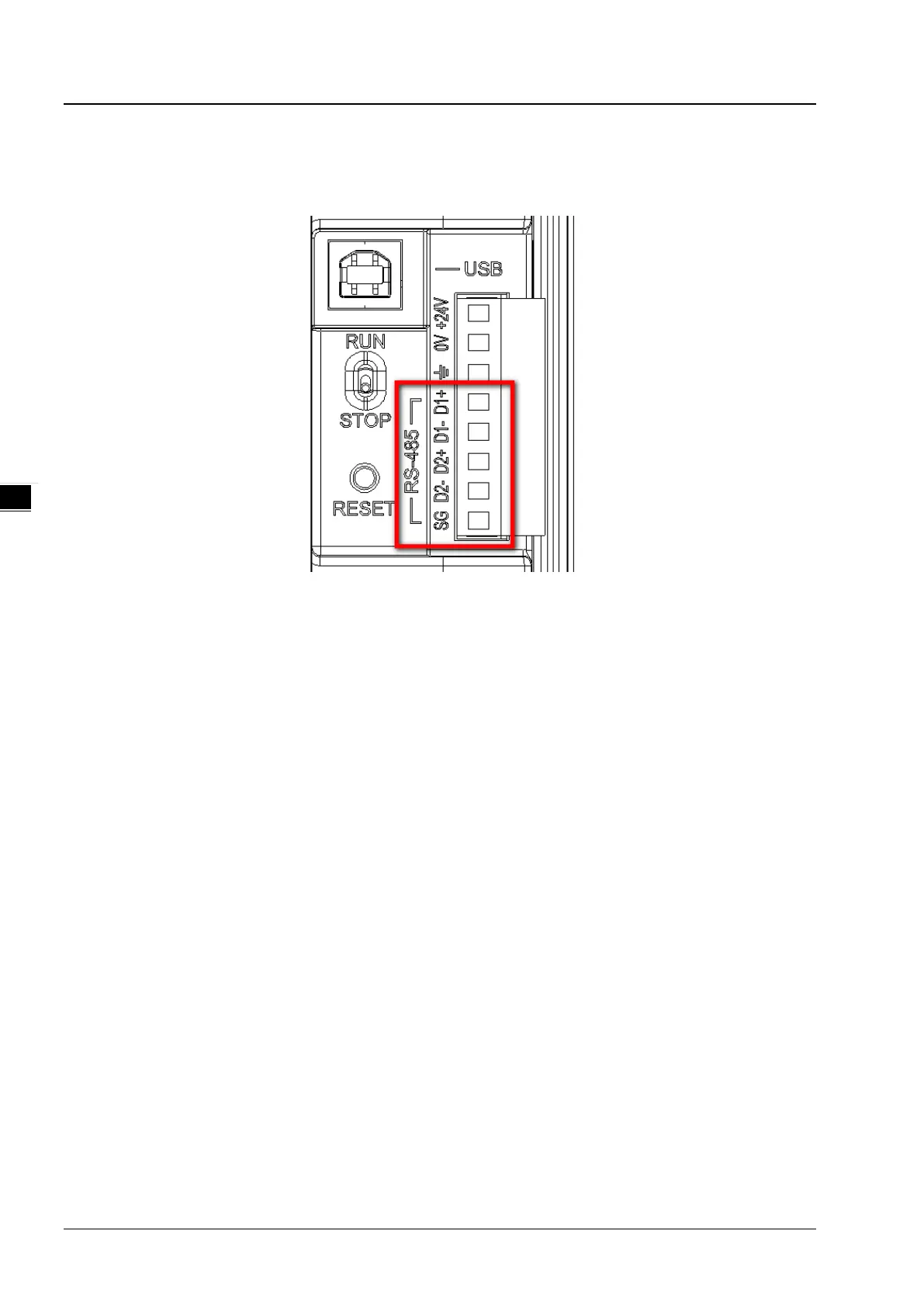

You can find the definitions of RS-485 ports on the product case as the image shown below, D1+, D1-, D2+,
D2- and SG. D1+ and D1- are for PLC Mode while D2+ and D2- are for TP Mode.
