9
UNPACKING AND CLEANING
Carefully unpack the machine and all loose items from the shipping container(s). Remove the rust-preventative oil from
unpainted surfaces using a soft cloth moistened with mineral spirits, paint thinner or denatured alcohol.
Do not use highly volatile solvents such as gasoline, naphtha, acetone or lacquer thinner for cleaning your
machine.
After cleaning, cover the unpainted surfaces with a good quality household floor paste wax.

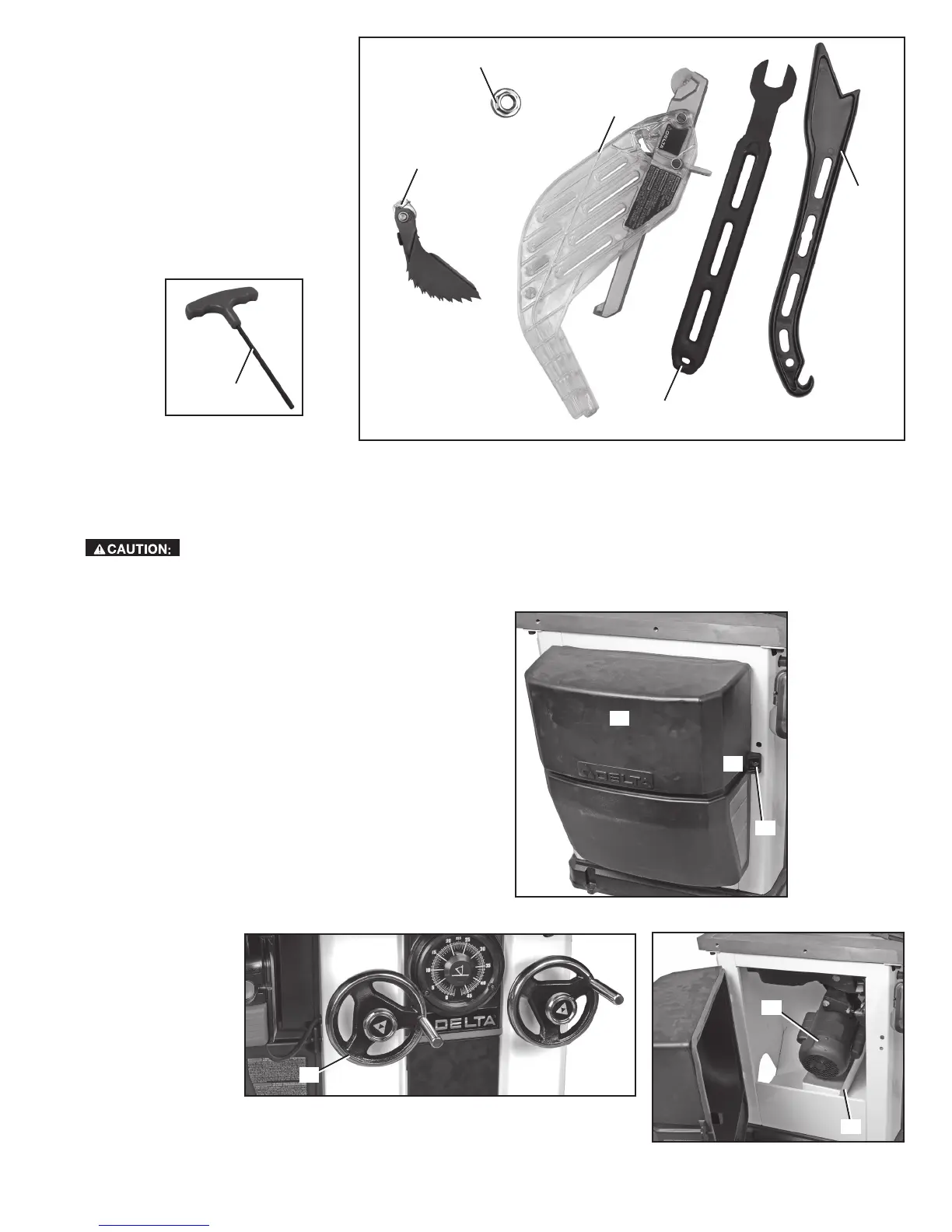

12. Anti-kickback assembly
13. Special arbor nut
14. Blade guard assembly
15. Arbor wrench
16. Push stick
17. T-handle 5/32 hex
wrench
REMOVE SHIPPING FOAM
1. Open the motor cover (A) Fig. 1. First, remove the
hex socket head screw (B) with a 5/16 hex wrench.
2. Press firmly just above the recessed area on side of
cover at (Z) Fig. 1 with the palm of your hand and the
motor cover should rotate to the left.
3. Turn blade raising wheel (C) Fig. 2 and raise the
arbor.
4. This will raise the motor (D) Fig. 3 out of the way of
the foam block (E).
5. Remove foam block.
6. Remove reducer. (Located next to foam block.)
FIG. 2
C
FIG. 1
FIG. 3
A
B
D
E
12
13
14
15
16
17
Z
