Delta VFD-B Series User Manual

Chapter 5 Parameters_VFD-B Series
5-44
Revision 10/2005, BE13, SW V4.08
RUN
RUN
STOP
STOP

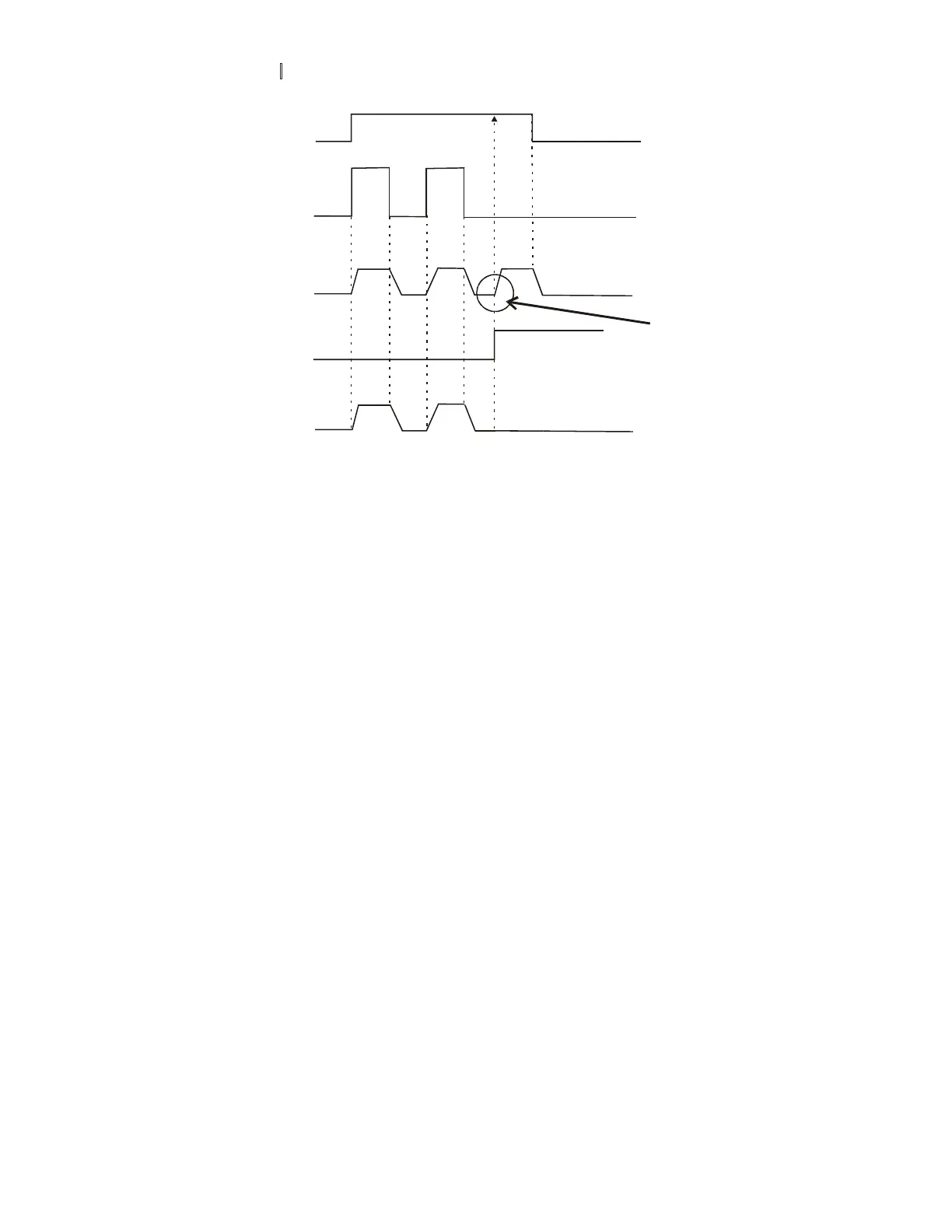

Pr.02-01=1 or 2
This action will follow FWD/DCM
or REV/DCM status
(ON is close/OFF is open)
ON
OFF
FWD-DCM (close)
Pr.02-01=0
output frequency
Pr.02-06=2 or 3
Change operation
command source
output frequency
Pr.02-06=0 or 1
When the operation command source isn’t from the external terminals, independently from whether the AC
motor drive runs or stops, the AC motor drive will operate according to Pr.02-06 if the two conditions below
are both met.
1. When operation command source is changed to external terminal (Pr.02-01=1 or 2, Pr.02-14=1 or 2)
2. The status of terminal and AC motor drive is different.
And the operation of the AC motor drive will be:
1. When setting 0 or 1, the status of AC motor drive is not changed by the terminal status.
2. When setting 2 or 3, the status of AC motor drive is changed by the terminal status.

Delta VFD-B Series Specifications

General

Series	VFD-B
Cooling Method	Fan cooling
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Control Mode	V/F control, Sensorless Vector Control
Communication	RS-485
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overload, Overtemperature, Short Circuit
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C
Humidity	90% RH (non-condensing)
Altitude	1000m (Derating required above 1000m)
