Delta VFD-B Series User Manual

Revision 10/2005, BE13, SW V4.08 4-1
Chapter 4 Digital Keypad Operation

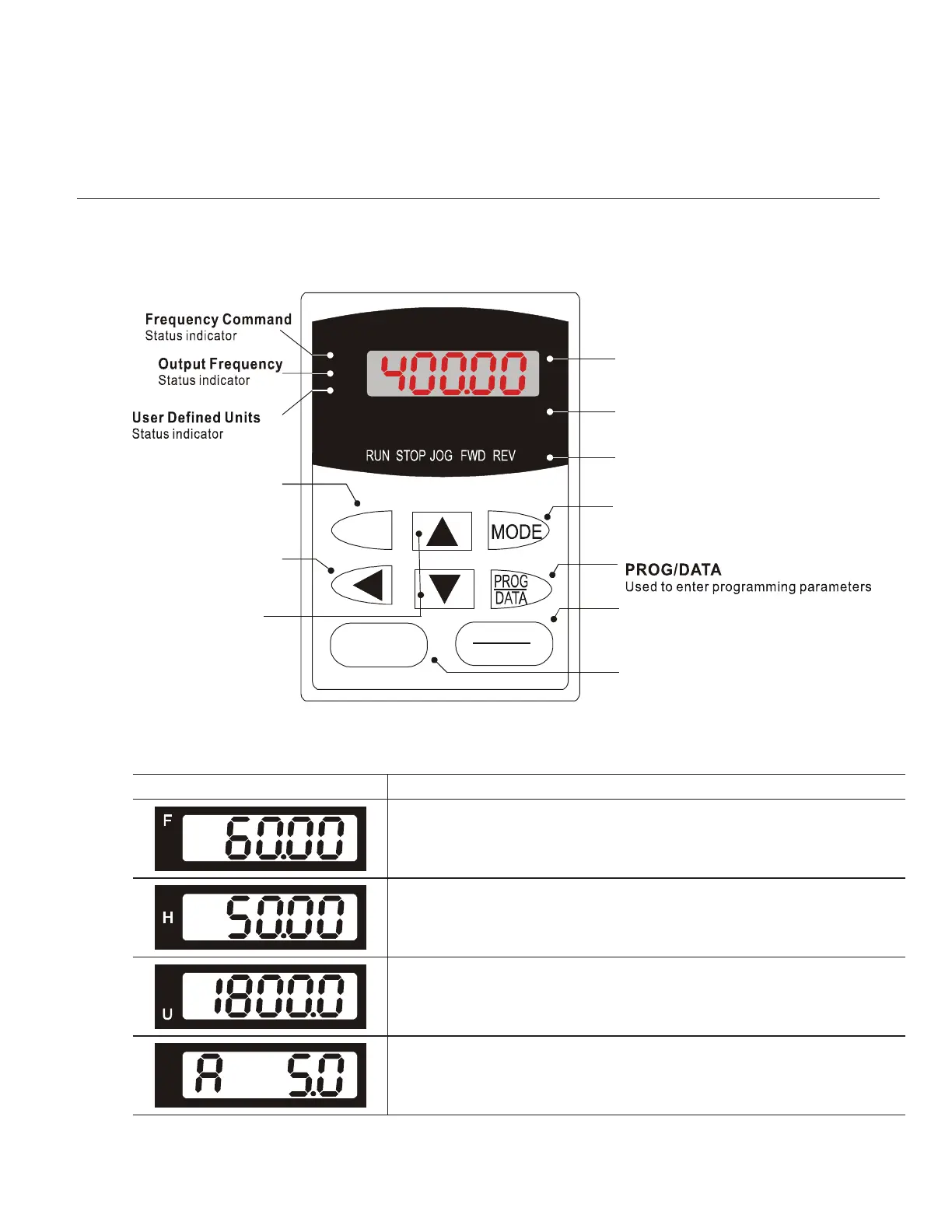

4.1 Description of the Digital Keypad VFD-PU01
U
F
H
VFD-PU01
JOG
LED Display
Display frequency, current, voltage
and error, etc.
Status Display
Display of drive status
Part Number
Left key
M oves cursor to the left
RUN key
RUN
RESET
STOP
STOP/RESET
UP and DOWN Key
Sets the parameter
number and changes the
numerical data, such as
Master Frequency.
JOG
Jog operation selector
MODE
Display mode selector
Display Message Descriptions
Displays the AC drive Master Frequency.
Displays the actual output frequency present at terminals U/T1, V/T2, and
W/T3.
User defined unit (where U = F x Pr.00-05)
Displays the output current present at terminals U/T1, V/T2, and W/T3.

Delta VFD-B Series Specifications

General

Series	VFD-B
Cooling Method	Fan cooling
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Control Mode	V/F control, Sensorless Vector Control
Communication	RS-485
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overload, Overtemperature, Short Circuit
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C
Humidity	90% RH (non-condensing)
Altitude	1000m (Derating required above 1000m)
