Delta VFD-B Series User Manual

Chapter 2 Installation and Wiring_VFD-B Series
Revision 10/2005, BE13, SW V4.08 2-5

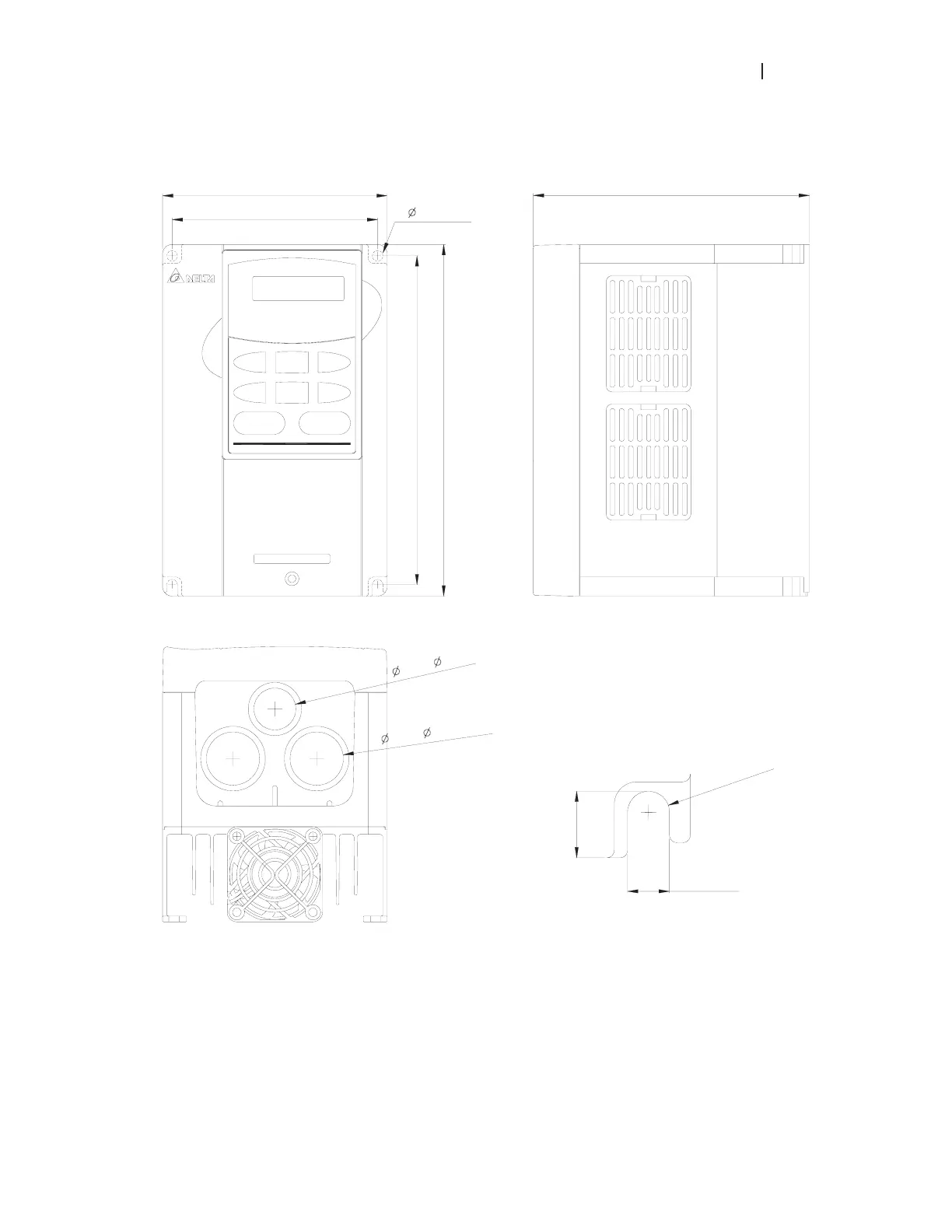

Frame A2: VFD015B21B/23B, VFD022B23B/43B/53A
5.5[0.22]
R
2.
75
[
0
.
11]
2
8
.0
[
1
.1
0
]
(
2
X
)
2
2
.
0
[
0
.
8
7
]
8.7 [0.34]
145.0 [5.71]
118.0 [4.65]
108.0 [4.25]
5.5[0.22]
185.0 [7.28] 173.0 [6.81]

Delta VFD-B Series Specifications

General

Series	VFD-B
Cooling Method	Fan cooling
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Control Mode	V/F control, Sensorless Vector Control
Communication	RS-485
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overload, Overtemperature, Short Circuit
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C
Humidity	90% RH (non-condensing)
Altitude	1000m (Derating required above 1000m)
