VFD-C2000 PROFINET Communication Card CMC-PN01

CMC-PN01 Operation Manual

3.3 Connecting to the Network

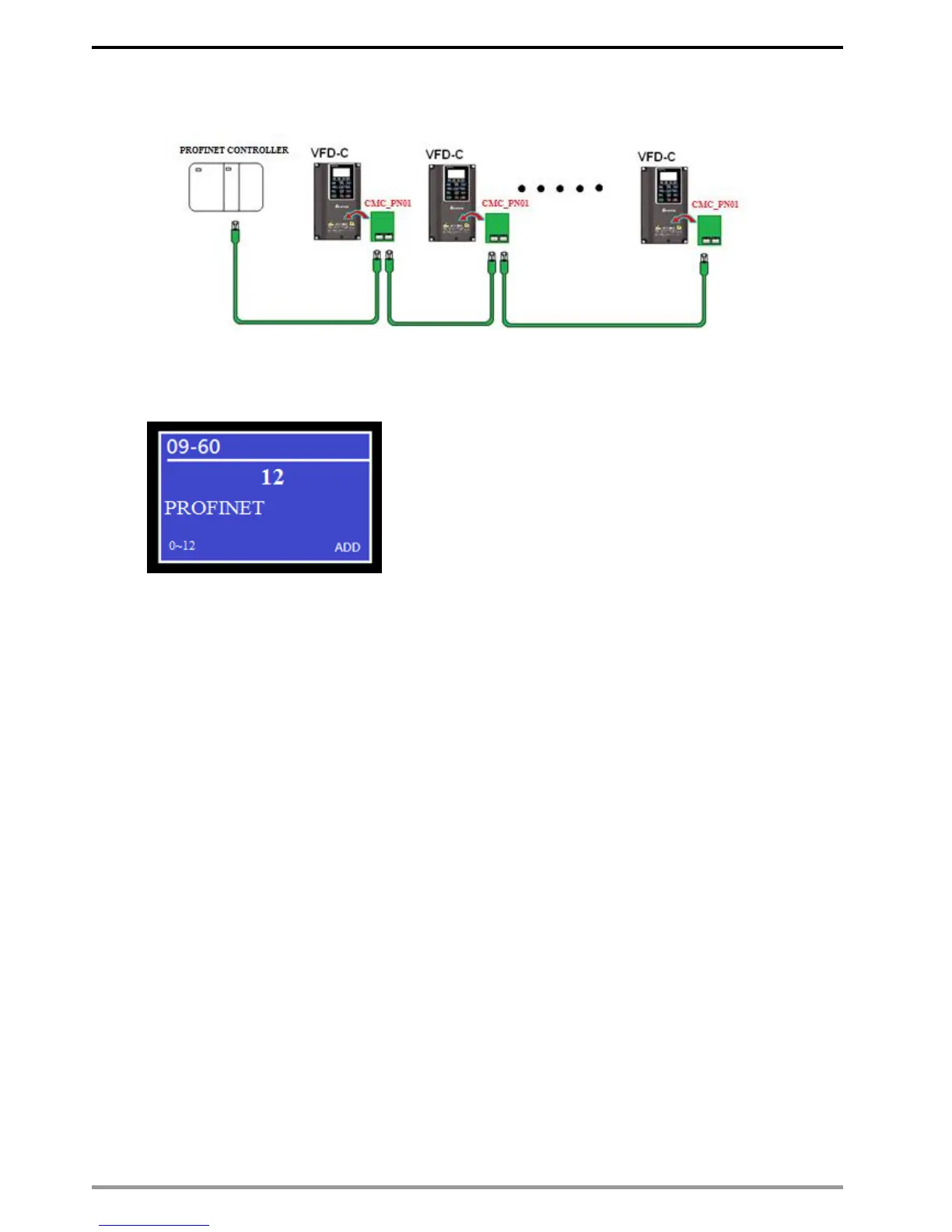

The wiring of CMC-PN01 shows as follows:

When the installation is finished, supply electricity to the drive. The Pr.09-60 of the

drive should be able to display “PROFINET” with a current value of 12. If not, make sure

your version of the drive is correct (C2000 needs 2.04 or later versions) and the

communication card is correctly connected.
