VFD-C2000 PROFINET Communication Card CMC-PN01

CMC-PN01 Operation Manual

2 Product Appearance and Components

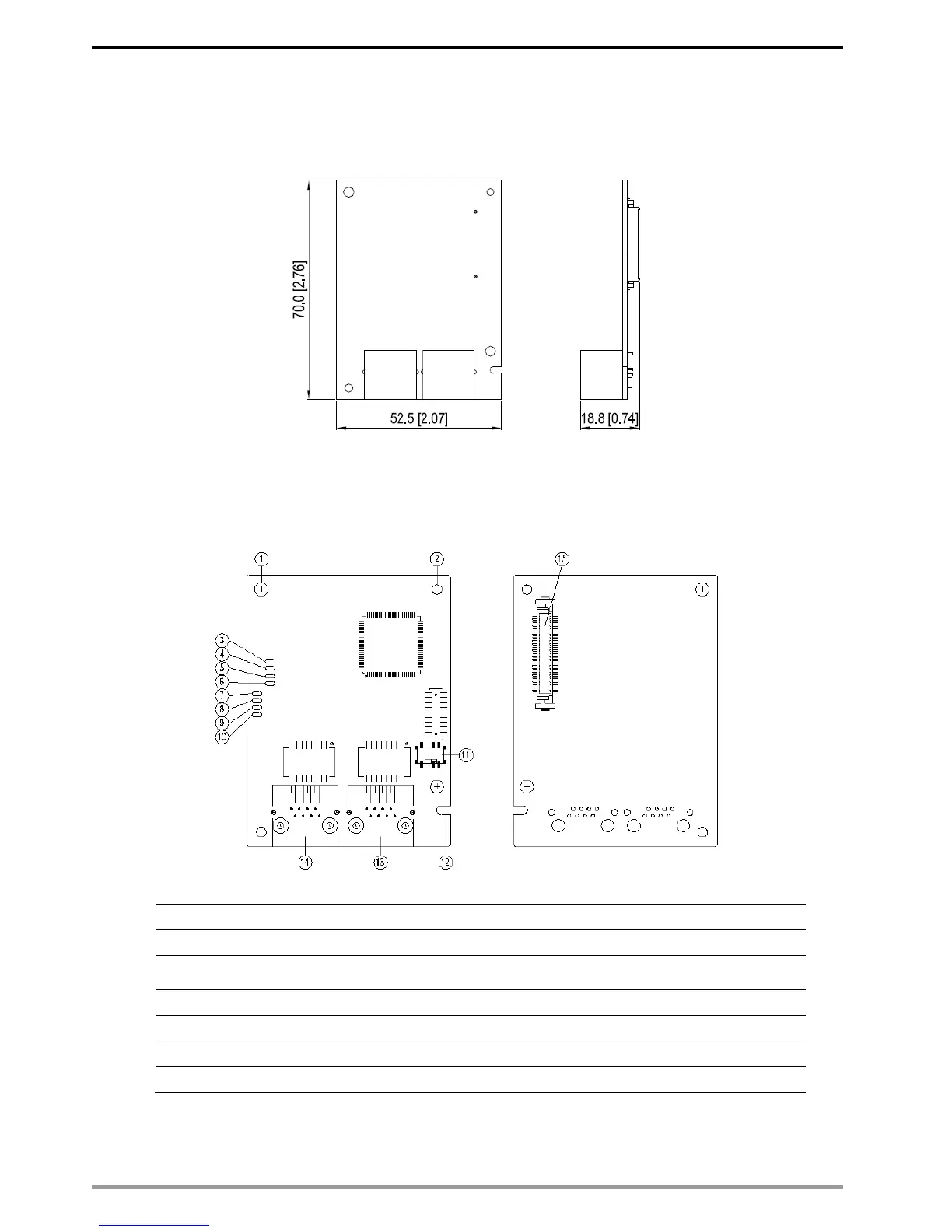

2.1 Exterior Dimensions

Unit: mm [inch]

2.2 Introduction to Each Component

1. Screw fastening hole

9. ACT PHY1 indicator (Port 1)

2. Positioning hole for communication card

10. Link PHY1 indicator (Port 1)

3. Ready out indicator

11. ON/OFF Switch

4. MT out indicator

12. Fool-proof groove on the communication

card

5. SD indicator

13. RJ45 connection port (Port 2)

6. BF out indicator

14. RJ45 connection port (Port 1)

7. ACT PHY2 indicator (Port 2)

15. Control panel connection port

8. Link PHY2 indicator (Port 2)
