VFD-C2000 PROFINET Communication Card CMC-PN01
CMC-PN01 Operation Manual
9
3 Installation and Wiring
This section introduces how CMC-PN01 connects to VFD-C2000 and to network.

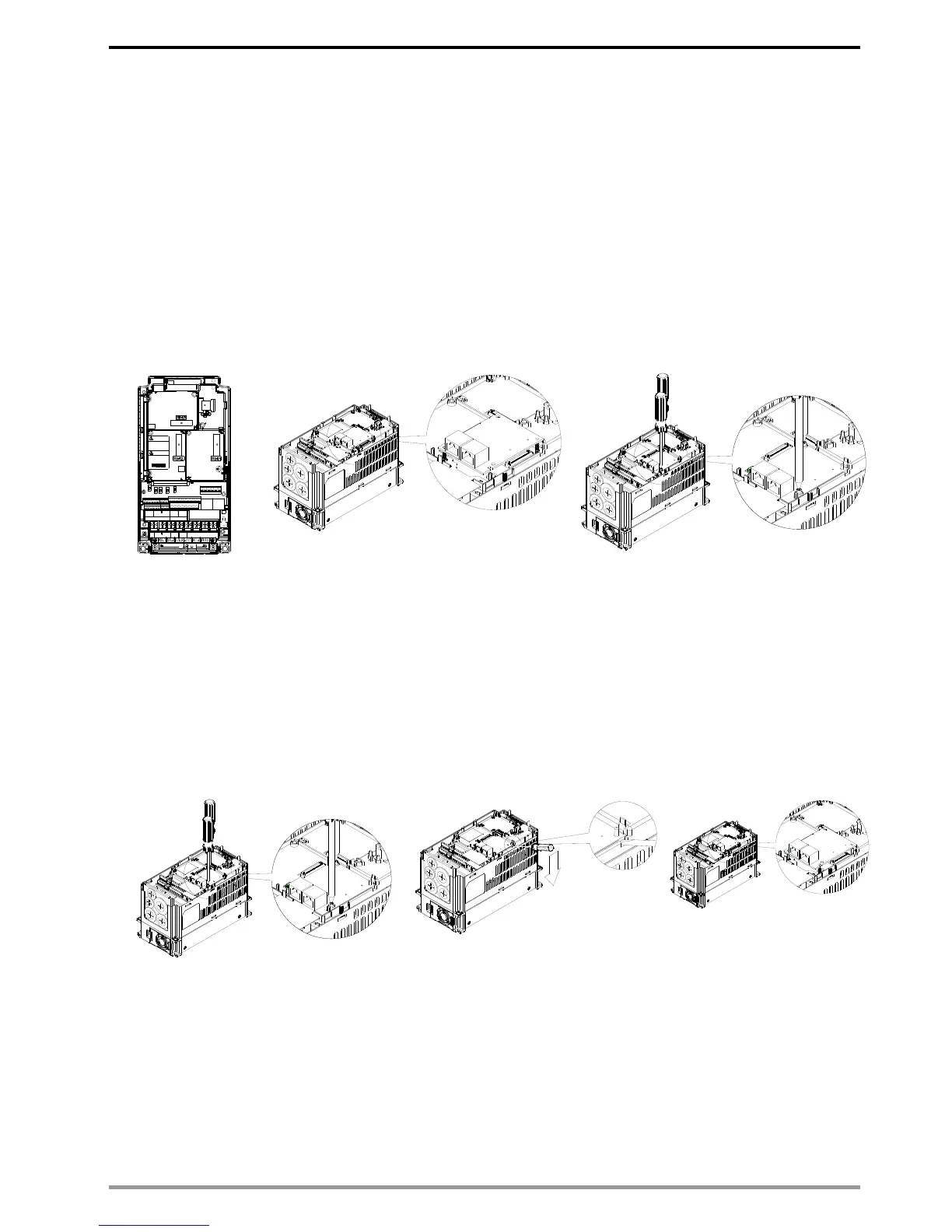

3.1 Installation
How to connect CMC-PN01 to VFD-C2000:
 Shut off the power supply to the AC motor drive.
 Open the front cover of the AC motor drive.
 Place the insulation spacer into the positioning pin at Slot 1 (see Figure 1), and
line-up the two holes on the PCB at the positioning pin. Press the pin to clip the
holes on the PCB (see Figure 2).
 Ensure the PCB is securely placed, and then fix the screws with 6–8 kg-cm of torque
(5.21–6.94 lb-in.) as shown in Figure 3.
Figure 1
Figure 2
Figure 3
3.2 Unloading
How to detach CMC-PN01 from VFD-C2000:
 Shut off the power supply to the AC motor drive.
 Open the front cover of the AC motor drive.
 Remove the two screws (see Figure 4).
 Pull to open the card clip and put a flat-head screwdriver into the groove to pry the
PCB off the card clip (see Figure 5).
 Release the other card clip to remove the PCB (see Figure 6).
Figure 4
Figure 5
Figure 6
DC-
DC+
+1
+2
B1
B2
CAUTION
CL001
禁止移除上蓋，
維修除外。
Do not remove
this cover,except
for servicing
警 告
B1
B2
DC+
+1
+2
DC-
M
直流共母?
3
DC-/DC+
MOTOR /
制? ? 阻
電源
POWER /
