Settings for Reading and Writing Asynchronous Parameters of the Drive
Asynchronous writing:

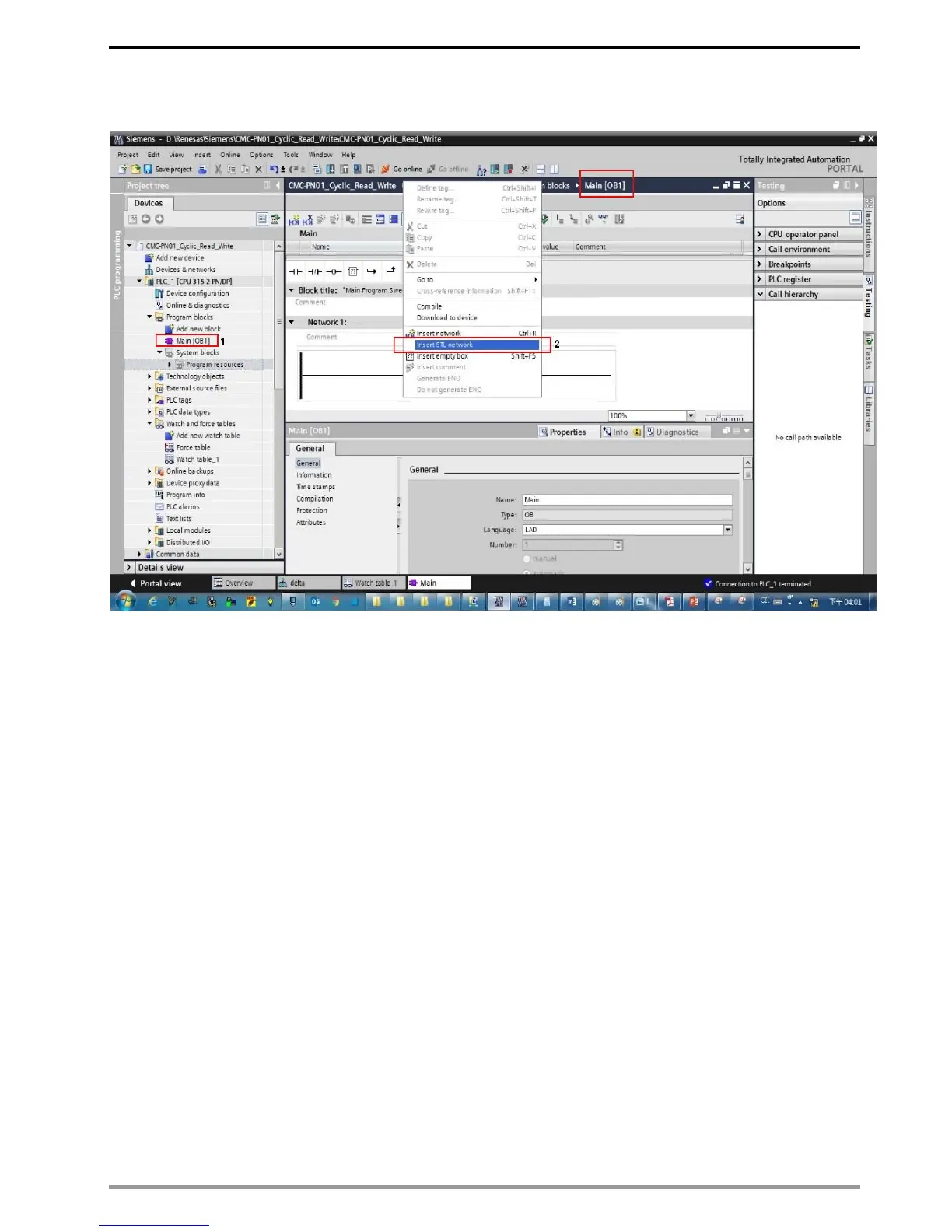

1. Follow the steps as shown in the figure below, open OB1 and Insert STL Network.
Enter the commands below into STL Network, and then a screen displays as shown in the figure
below. Then, click OK button.
CALL "WRREC" , DB53
REQ :=M41.7
ID :=2042
INDEX :=16#4d2
LEN :=6
DONE :=M41.1
BUSY :=M41.2
ERROR :=M41.3
STATUS:=MD46
RECORD:=P#DB2.DBX 2.0 BYTE 6
