Operation Manual
49
2.
After you click
OK
button
,
a scree
n displays as shown in the figure below
. Note the values in
red boxes.
3.

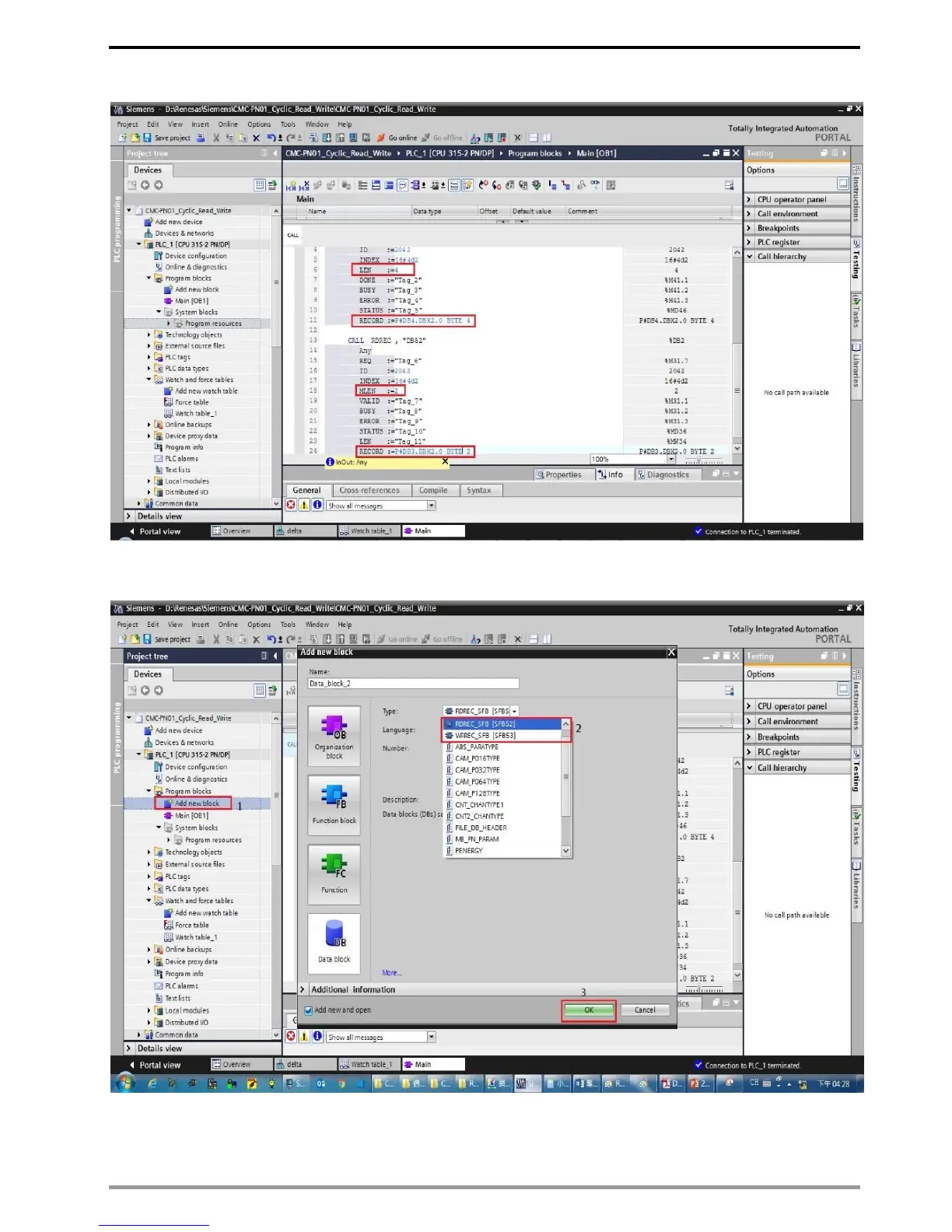

Follow the three steps as shown in the figure below to add DB for RDREC and DB for
WRREC.
48
50
