Ch
apter
7
Option Card
s
| VFD
-ED
7-3

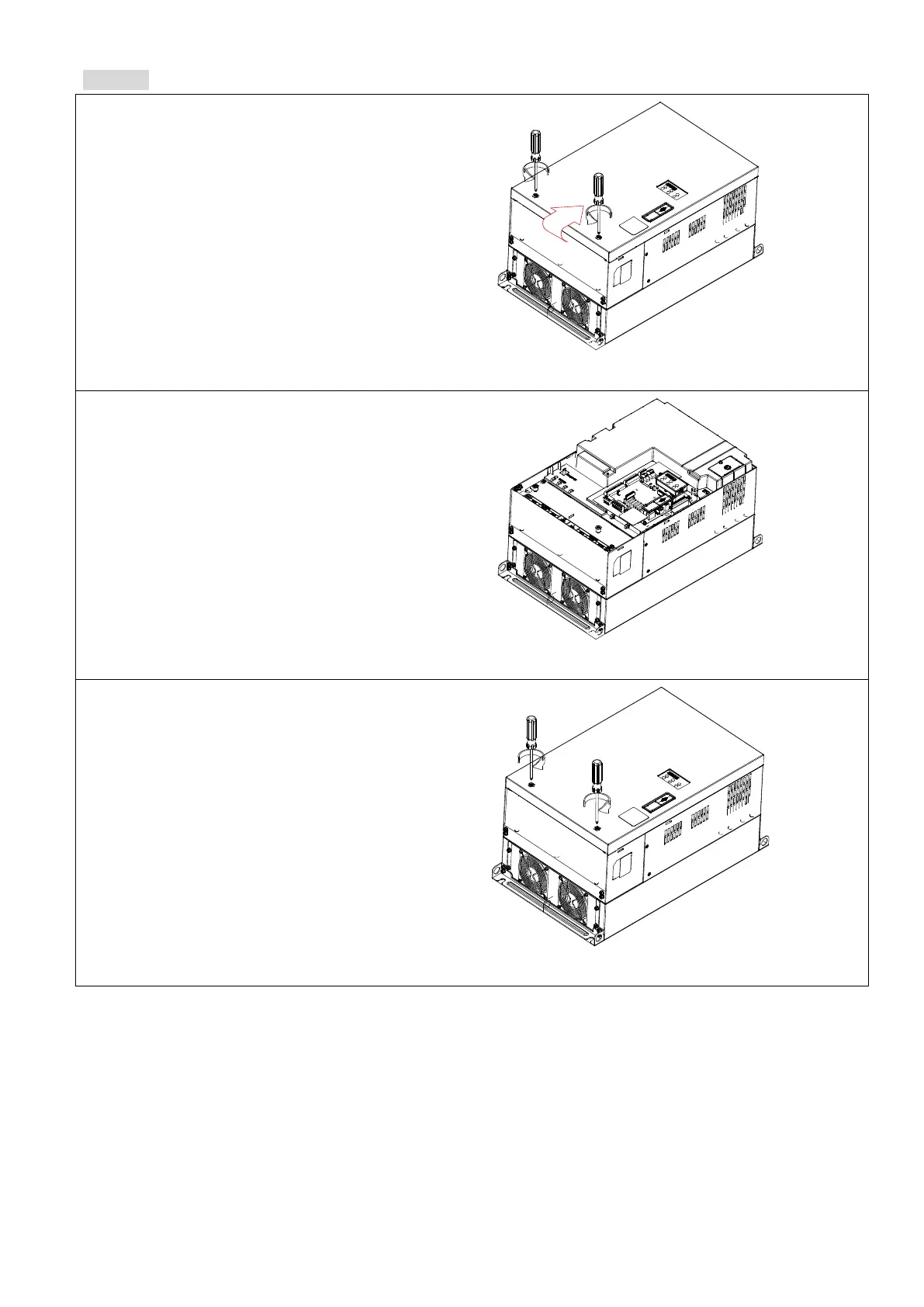

Frame E
Step 1: Loosen the two screws in the
direction as the arrow shows
Figure 7
-4
S
tep
2: Remove the top cover
Figure 7
-5
S
tep 3:
Attach the top cover
, and then
tighten the two screws using
torque force 15 kgf
-
cm.
Figure 7
- 6
109
111
Table of Contents
default chapter
5
Table of Contents
5
Chapter 1 Introduction
8
Nameplate Information
9
Model Name
10
Serial Number
10
Apply After-Sales Service by Mobile Device
11
RFI Switch
14
Dimensions
17
Chapter 2 Installation
22
Mounting Clearance
23
Airflow and Power Dissipation
24
Chapter 3 Wiring
26
System Wiring Diagram
28
Wiring
29
Chapter 4 Main Circuit Terminals
36
Main Circuit Diagram
38
Main Circuit Terminal Specifications
40
Chapter 5 Control Terminals
44
Remove the Cover before Wiring
45
Control Terminal Specifications
47
Control Circuit Terminals
48
Chapter 6 Optional Accessories
52
Brake Resistors and Brake Units Used in AC Motor Drives
53
Non-Fuse Circuit Breaker
58
Fuse Specification Chart
58
AC / DC Reactor
59
Zero Phase Reactor
84
EMC Filter
88
Digital Keypad
99
USB/RS-485 Communication Interface IFD6530
103
Chapter 7 Option Cards
108
Option Card Installation
109
Emed
112
Emed
123
Emed
131
Chapter 8 Specifications
140
Models
141
General Specifications
142
Operation, Storage and Transportation Environments
143
Derating Curve
144
Chapter 9 Digital Keypad
148
Description of Keyboard Panel
149
Keypad Operation Process
151
Digital Keypad KPC-CC01 Functions
155
Digital Keypad KPC-CC01 Fault Codes and Descriptions
166
Tpeditor Installation
172
Chapter 10 Auto-Tuning Process
182
Tuning in Easy Steps for IM
183
Tuning in Easy Steps for PM
184
Descriptions of Tuning Steps
185
Elevator Performance Fine-Tuning
205
Chapter 11 Summary of Parameter Settings
210
Chapter 12 Descriptions of Parameter Settings
248
Drive Parameters
248
Basic Parameters
248
Digital Input / Output Parameters
248
Analog Input / Output Parameters
248
Multi-Step Speed Parameters
248
IM Parameters
248
Protection Parameters
248
Special Parameters
248
PM Parameters
248
Chapter 13 Warning Codes
364
Chapter 14 Fault Codes
370
Chapter 15 Maintenance and Troubleshooting
384
Maintenance and Inspections
386
Greasy Dirt Problems
389
Fiber Dust Problems
390
Corrosion Problems
391
Industrial Dust Problems
392
Installation and Wiring Problems
393
Multi-Function Input / Output Terminal Application Problems
394
Chapter 16 Safe Torque off Function
396
Failure Rate of the Drives Safety Function
397
Description of Sto's Functions
398
Wiring Diagram
399
Related Parameters
402
Timing Diagram Description
403
Fault Codes Related to STO
406
Appendix A. Emc Standard Installation Guide
408
Introduction
410
How to Prevent EMC
411
Solution to EMC: Grounding
414
Solution to EMC: Shielding
422
Solution to EMC: Filter
426
Appendix B. Modbus Protocol
432
Code Description
432
Data Format
432
Communication Protocol
432
Address List
439
Exception Response
443
Appendix C. Revision History
444
Issued Edition: 00
444
