Chapter 9 Digital KeypadVFD-ED

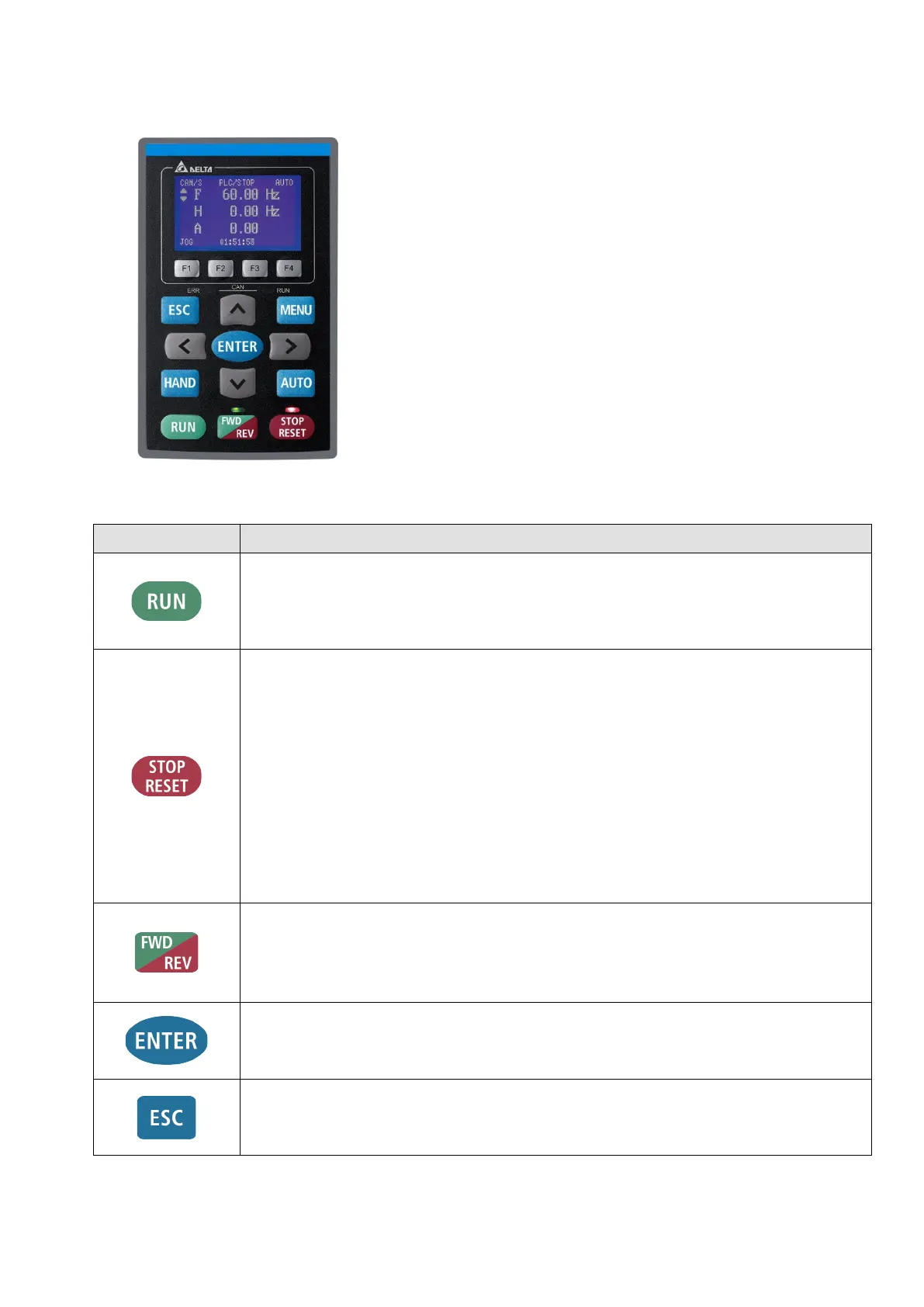

9-3 Description of Digital Keypad KPC-CC01
Communication Interface
RJ45 (socket), RS-485 interface
Communication protocol:
RTU19200, 8, N, 2
Installation Method
1. Embedded type and can be put flat on the surface of the
control box. The front cover is water proof.
2. Buy a MKC-KPPK model to do wall mounting or embedded
mounting. Its protection level is IP66.
3. The maximum RJ45 extension lead is 5 m (16ft)
4. This keypad can only be used on Delta’s motor drive C2000,
CH2000, CP2000, and ED series.
Descriptions of Keypad Functions
Key Descriptions
Start Operation Key
1. Only valid when the source of operation command is the keypad.
2. Operates the AC motor drive by the function setting. The RUN LED will be ON.
3. Can be pressed repeatedly at the stop process.
Stop Command Key.
1. This key has the highest priority when the command is from the keypad.
2. When it receives the STOP command, regardless of whether the AC motor
drive is in operation or stop status, the AC motor drive needs to execute the
“STOP” command.
3. Use the RESET key to reset the drive after a fault occurs.
4. If you cannot reset after the fault:
(1) The condition which triggers the fault is not cleared. After you clear the
condition, you can then reset the fault.
(2) The drive is in the fault status when powered on. After you clear the
condition, restart and then you can reset the fault.
Operation Direction Key
1. Only controls the operation direction, NOT the drive activation. FWD: forward,
REV: reverse.
2. Refer to the Descriptions of LED Functions on p.9-6 for more details.
ENTER Key
Goes to the next menu level. If at the last level, press ENTER to execute the
command.
ESC Key
Leaves the current menu and returns to the previous menu; also functions as a
return key or cancel key in a sub-menu.
