Chapter 9 Digital KeypadVFD-ED
Other displays

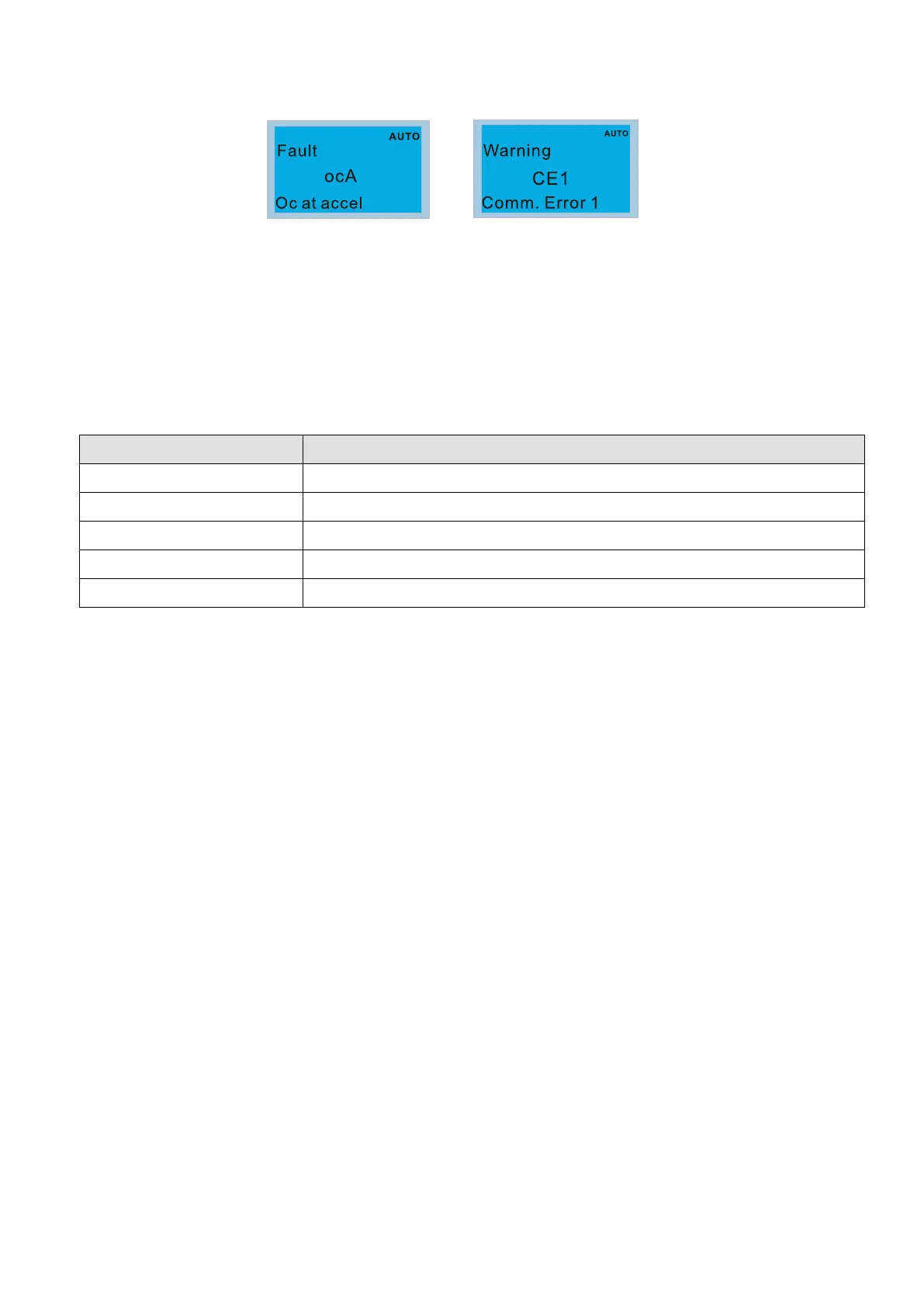

When a fault occurs, the screen shows a fault or warning:
1. Press RESET key to reset the fault code. If there is no response, contact your local distributor or return the
unit to the factory. To view the fault DC bus voltage, output current and output voltage, press MENU and then
choose 6: Fault Record.
2. After resetting, if the screen returns to the main screen and shows no fault after you press ESC, the fault is
cleared.
3. When the fault or warning message appears, the LED backlight blinks until the fault or warning is cleared.
Optional accessory: RJ45 Extension Lead for Digital Keypad
Part No. Description
CBC-K3FT
RJ45 extension lead, 3 feet (approximately 0.9 m)
CBC-K5FT RJ45 extension lead, 5 feet (approximately 1.5 m)
CBC-K7FT
RJ45 extension lead, 7 feet (approximately 2.1 m)
CBC-K10FT RJ45 extension lead, 10 feet (approximately 3 m)
CBC-K16FT
RJ45 extension lead, 16 feet (approximately 4.9 m)
NOTE: If communication cables are required, buy non-shielded, 24 AWG, four-wire twisted pair, 100 ohms
communication cables.
