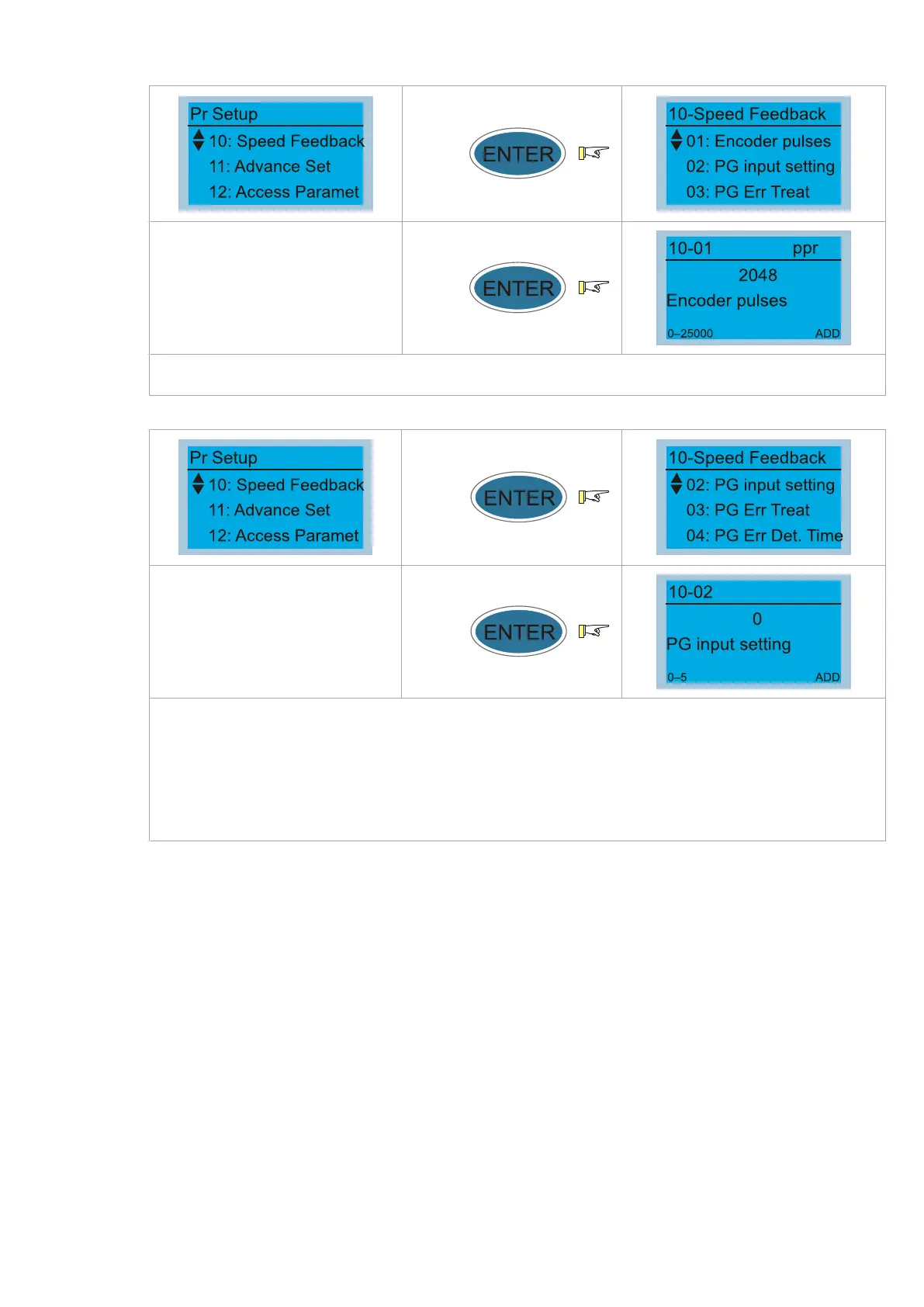

Pr.10-01 Encoder PPR
Press
Press
 Sets the encoder pulses per revolution (PPR).
Pr.10-02 Encoder Input Type Setting
Press
Press
 When you set Pr.10-00 to 3, 4, 5 or 6, you can set Pr.10-02 only to 0, 1 or 2, and you cannot
use 3, 4 and 5.
 You must enter the correct pulse type for stable control.
 It is suggested that you set Pr.10-02 to 1 first. When fault code PGF1 occurs or the motor
does not run, set it to 2.
