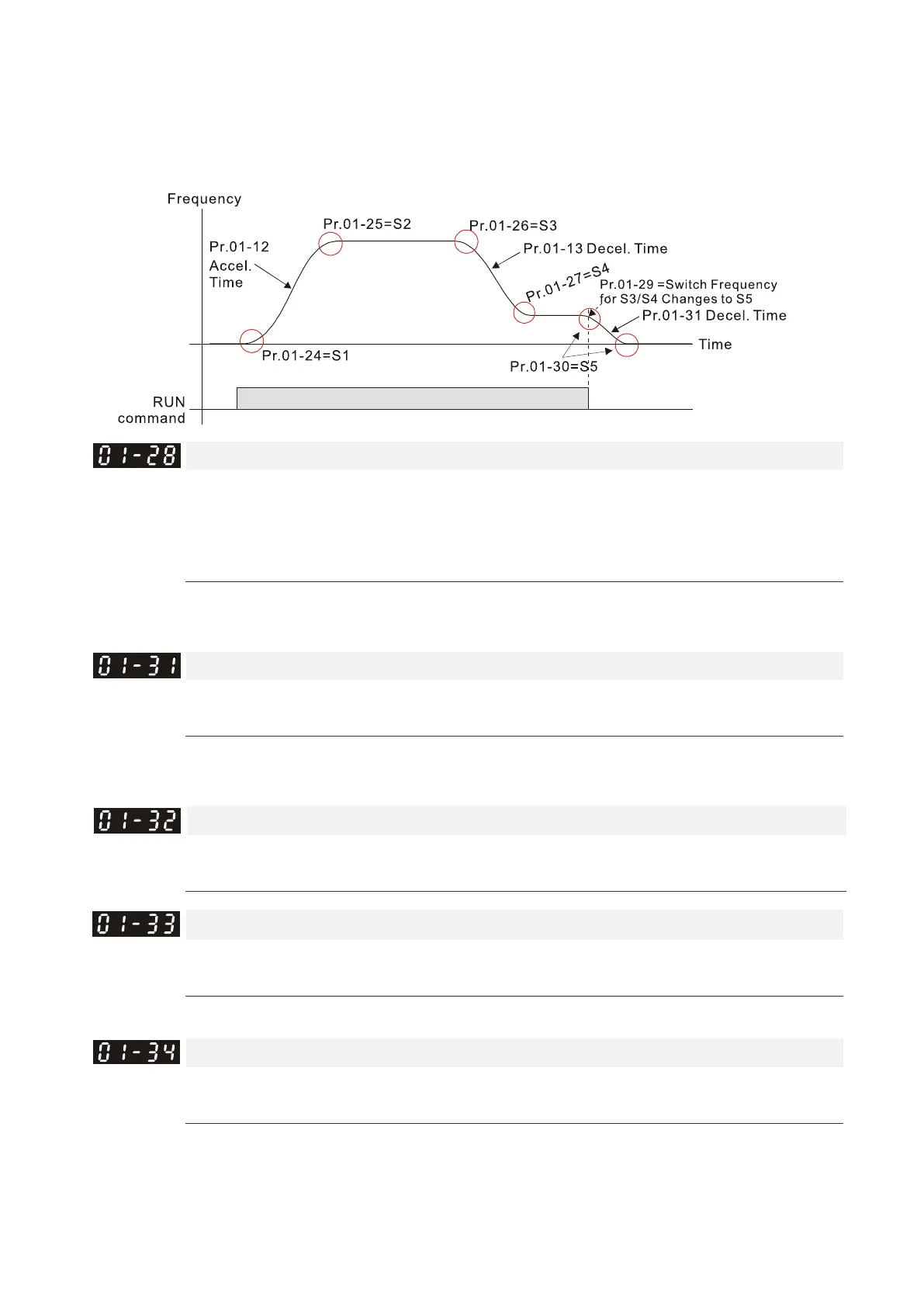

 The Actual Acceleration Time = selected acceleration Time + (Pr.01-24 + Pr.01-25) ÷ 2.
The Actual Deceleration Time = selected deceleration Time + (Pr.01-26 + Pr.01-27 + Pr.01-30 x 2)
÷ 2.
 Use Pr.01-29 to set the switch frequency between S4 and S5 for smooth stopping.
 Set Pr.01-29 to the leveling speed of the elevator.
Mode Selection when Frequency < Fmin
Control Mode VF VFPG SVC Default: 1
Settings 0: Output Waiting
1: Zero-speed operation
2: Fmin (Fourth output frequency setting)
 The AC motor drive uses this parameter when it is at 0 Hz.
 1 or 2: The voltage outputs according to the output voltage command corresponding to Fmin (Pr.01-08).

Deceleration Time when Operating without RUN Command
Control Mode VF VFPG SVC FOCPG FOCPM Default: 2.00
Settings 0.00–600.00 sec.
 The AC motor drive stops according to this parameter when cancelling the RUN command. Refer to the
figure in the description for Pr.01-29 for details.

Direct docking mode only
Control Mode Default: -
Settings Contact Delta for more information
High Speed Time for Short Floor
Control Mode VF VFPG SVC FOCPG FOCPM Default: 3.00
Settings 0.00–60.00 sec.
 Sets the high speed duration during short floor operation.
Leveling Speed Time for Short Floor
Control Mode VF VFPG SVC FOCPG FOCPM Default: 3.00
Settings 0.00–60.00 sec.
 Sets the leveling speed duration during short floor operation.
