Delta VFD-ED Series User Manual

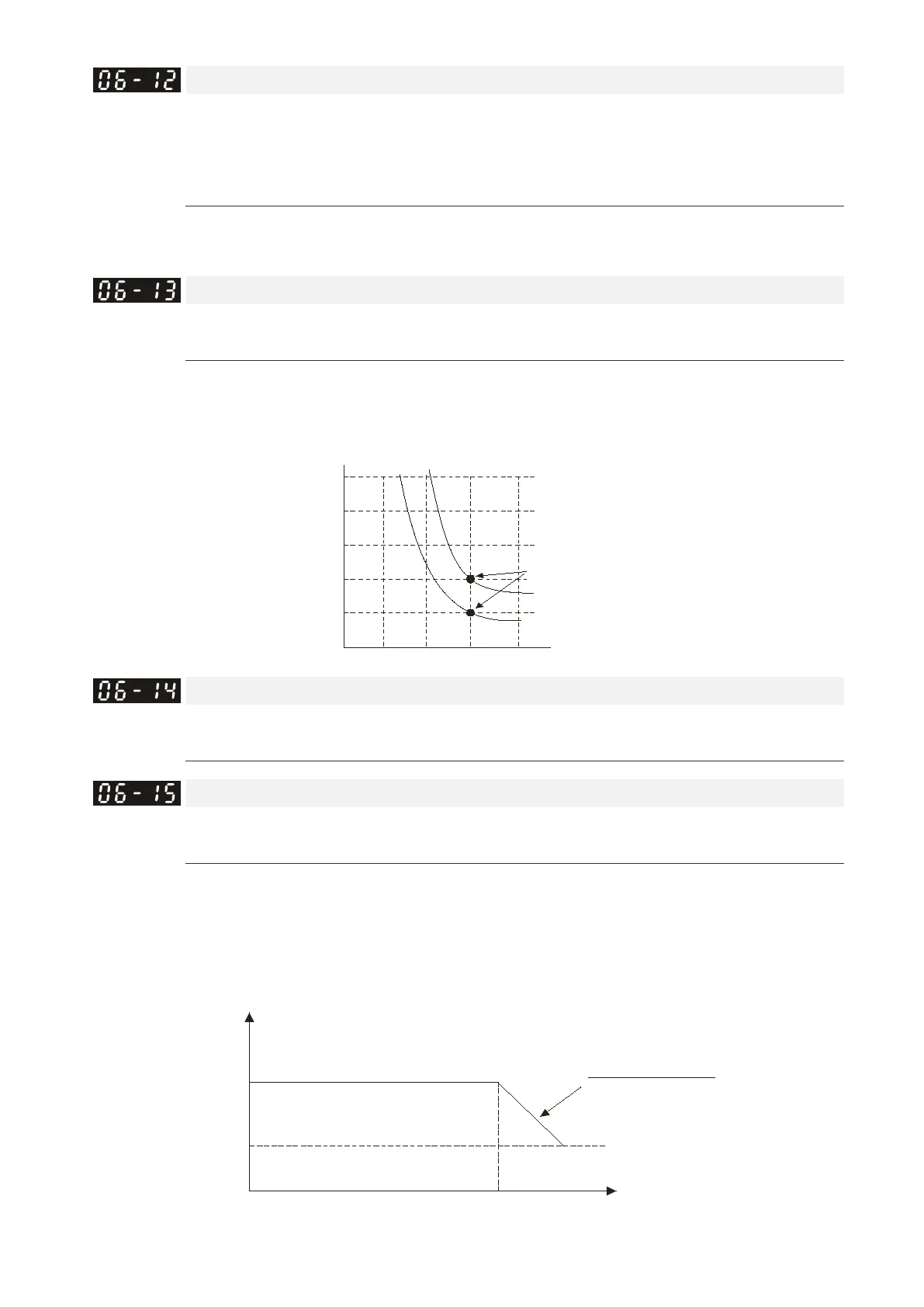

12 Descriptions of Parameter Settings | VFD-ED
12-06-4
Electronic Thermal Relay
Control Mode VF VFPG SVC FOCPG FOCPM Default: 2
Settings 0: Standard motor
1: Inverter motor
2: Disabled
 Prevents self-cooled motor from overheating at low speeds. You can use an electrical thermal relay to limit
the drive’s output power.

Electronic Thermal Characteristic
Control Mode VF VFPG SVC FOCPG FOCPM Default: 60.0
Settings 30.0–600.0 sec.
 The parameter is set by the drive’s output frequency, current and operation time for activating the I
2
t
electronic thermal protection function. The function is activated for 150% of the setting current in Pr.06-13.
1
2
3
4
5
60Hz
0 50 100 150 200
Operation
time(min)
Load
factor (%)

IGBT Overheat Warning (oH1)
Control Mode VF VFPG SVC FOCPG FOCPM Default: 90.0
Settings 0.0–110.0°C

Stall Prevention Limit Level
Control Mode VF VFPG SVC Default: 50
Settings 0–100% (Refer to Pr.06-02, Pr.06-03)
 When the operating frequency is larger than Pr.01-01, Pr.06-02 = 150%, Pr.06-03 = 100% and Pr.06-15 =
80%:
Stall Prevention Level during acceleration = Pr.06-02 x Pr.06-15 = 150% x 80% = 120%.
Stall Prevention Level at constant speed = Pr.06-03 x Pr.06-15 = 100% x 80% = 80%.
06-02
06-15
01-01
01-01
x06-02
Stall Prevention Level
output frequency
frequency
