Delta VFD-ED Series User Manual

12 Descriptions of Parameter Settings | VFD-ED
12-07-2


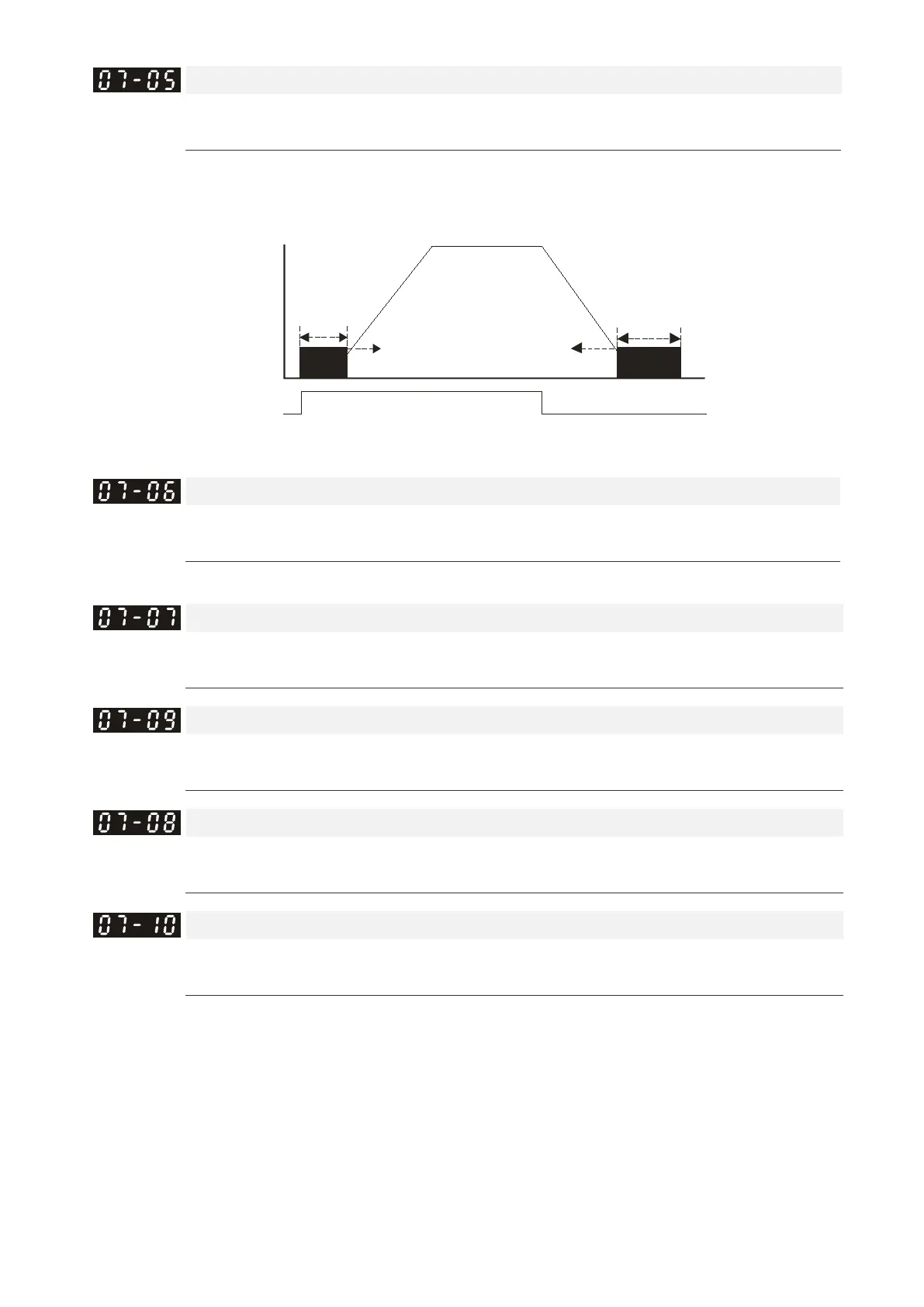

Start-point for DC Brake
Control Mode VF VFPG SVC FOCPG Default: 0.00
Settings 0.00–299.00 Hz
 Determines the frequency at which the DC brake begins during deceleration. When the setting is less than
the start frequency (Pr.01-09), the start-point for the DC brake begins at the minimum frequency.
ON
O FF
01-09
07-05
Output freque ncy
Run /Stop
Time
DC Brake Time
DC Brake
Activation
Time
Start
frequen cy
Start-point for
DC br ake
time during
stopping
07-0 3
07-0 4
DC Brake
Stopp in g
T
ime

DC Brake Proportional Gain
Control Mode VF VFPG SVC Default: 50
Settings 1–500
 Sets the output voltage gain when DC braking.

Dwell Time at Acceleration
Control Mode VF VFPG SVC FOCPG FOCPM Default: 0.00
Settings 0.00–600.00 sec.

Dwell Time at Deceleration
Control Mode VF VFPG SVC FOCPG FOCPM Default: 0.00
Settings 0.00–600.00 sec.

Dwell Frequency at Acceleration
Control Mode VF VFPG SVC FOCPG FOCPM Default: 0.00
Settings 0.00–299.00 Hz

Dwell Frequency at Deceleration
Control Mode VF VFPG SVC FOCPG FOCPM Default: 0.00
Settings 0.00–299.00 Hz
 In a heavy load situation, dwelling can temporarily stabilize the output frequency.
 Use Pr.07-07–Pr.07-10 with heavy load to prevent over-voltage or over-current.
