Delta VFD-ED Series User Manual

12 Descriptions of Parameter Settings | VFD-ED
12-10-6
10-17
10-13
10-14
10-15
10-16
Hz
PI
10-11
10-12
0Hz
10-20
10-21


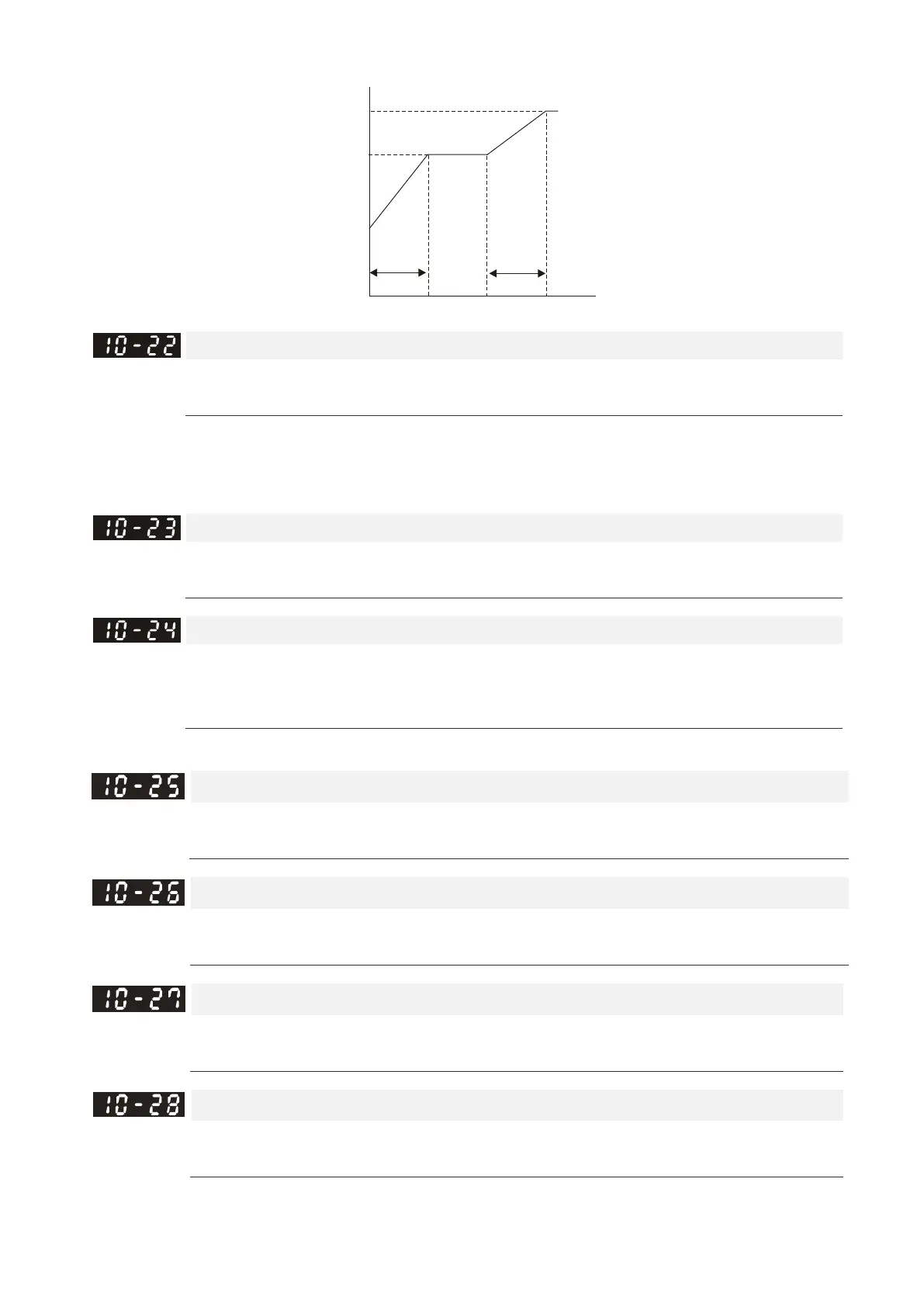

Zero Speed Position Control Holding Time
Control Mode FOCPM Default: 0.250
Settings 0.001–65.535 sec.
 When Pr.11-00 is set to bit 7=1, Pr.10-22 is valid.
 Sets this parameter when elevator jerk at start-up or carriage inversion occurs. In principle, the holding
time cannot exceed the time when frequency starts output.

Zero Speed Position Control Low Pass Filter Time
Control Mode FOCPM Default: 0.004
Settings 0.001–65.535 sec.

Zero Speed Position Control Activation Mode Selection
Control Mode FOCPM Default: 0
Settings 0: After the brake release set in Pr.02-29
1: After the brake signal input (Pr.02-01–02-08 is set to 42)
 When Pr.10-24 = 0, use the zero speed control with Pr.02-29 (refer to the explanations in Pr.02-32).

Elevator Leveling (Zero Speed Gain P)
Control Mode VF VFPG SVC FOCPG FOCPM
Default: 100.0
Settings 0.0–1000.0%

Elevator Leveling (Zero Speed Integral I)
Control Mode VF VFPG SVC FOCPG FOCPM
Default: 0.100
Settings 0.000–10.000 sec.

Elevator Starting (Zero Speed Gain P)
Control Mode VF VFPG SVC FOCPG FOCPM
Default: 100.0
Settings 0.0–1000.0%

Elevator Starting (Zero Speed Integral I)
Control Mode VF VFPG SVC FOCPG FOCPM
Default: 0.100
Settings 0.000–10.000 sec.
