Chapter 5 Control Terminals | VFD-ED

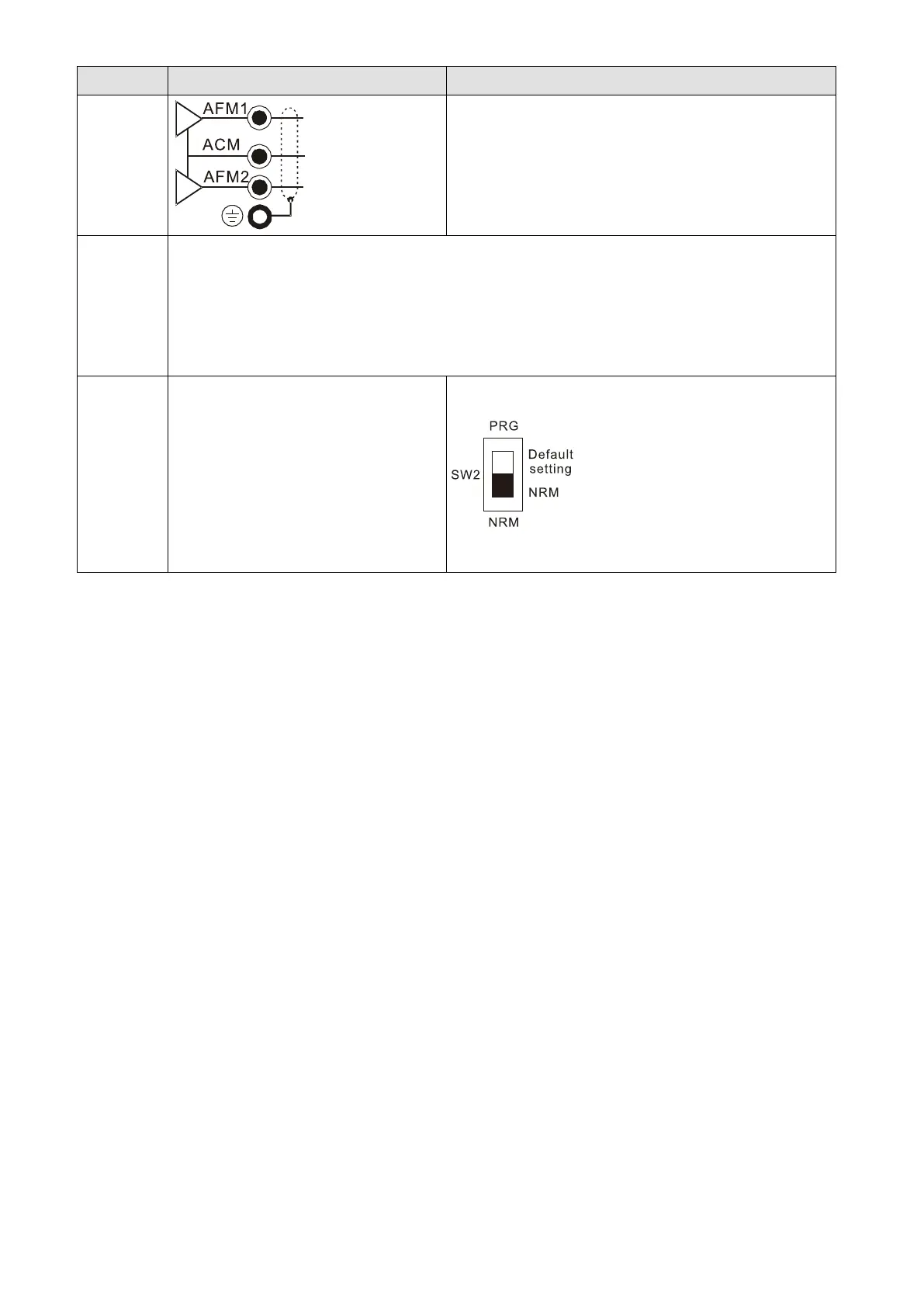

Terminals Terminal Function Default (NPN mode)
AFM2
Maximum output current: 2 mA
Resolution: 0–10 V, corresponds to the maximum
operating frequency.
Range: 0–10 V→ -10–10 V
RJ45
PINS 1, 2, 6, 7: Reserved
PIN 3: SGND
PIN 4: SG-
PIN 5: SG+
PIN 8: EV
SW2 Switching USB port
DIP switch: NRM (default) /
PRG (use this side of the switch
to update firmware). Updating
firmware should be done by
qualified motor drive service
personnel only. Do NOT try to
update the firmware by yourself.
NOTE: NRM = Normal
Table 5-
