Delta VFD-ED Series User Manual

Chapter 6 Optional Accessories | VFD-ED
6-28

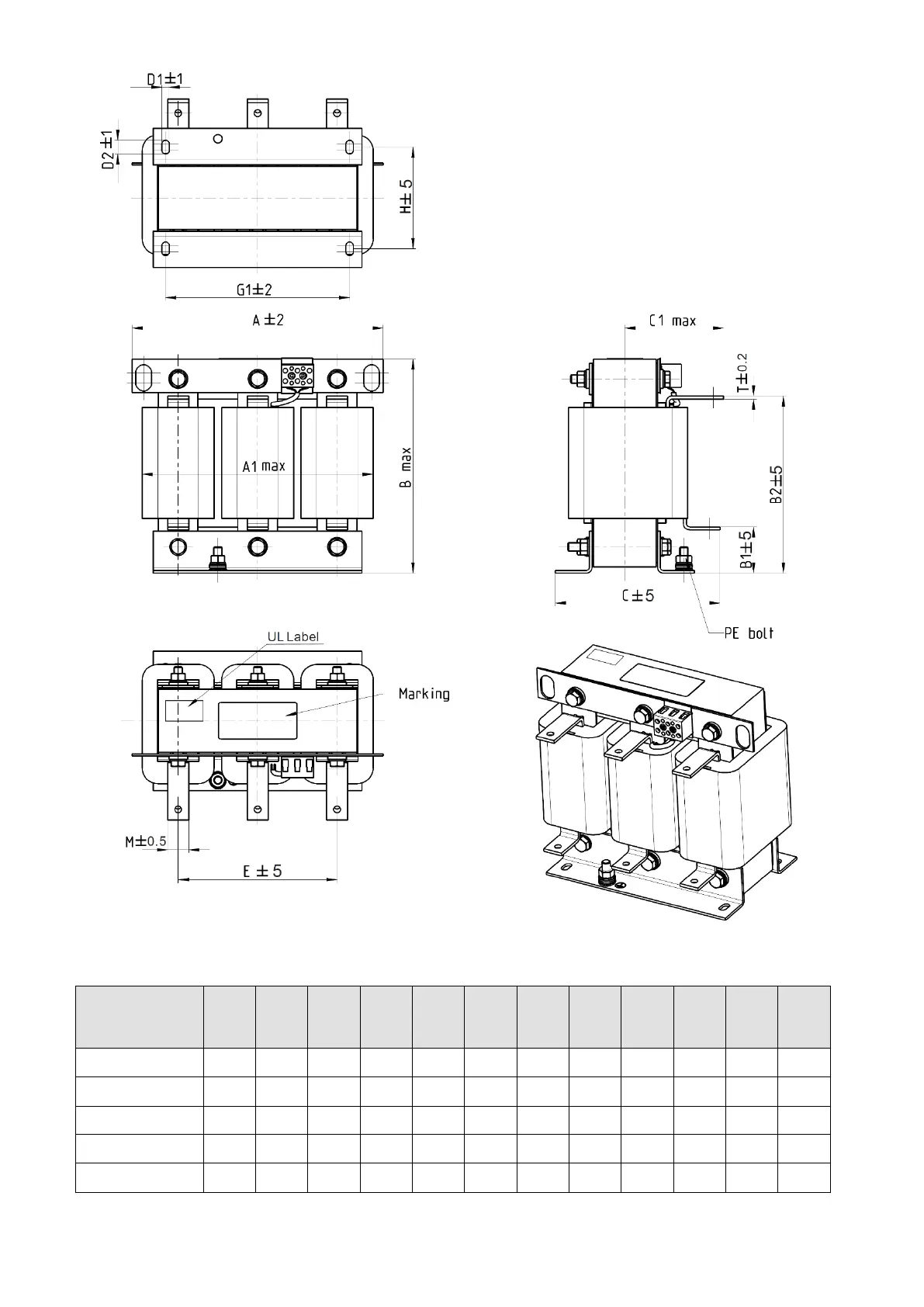

Figure 6-23
Unit: mm
Output Reactors
Delta Part #
A A1 B B1 B2 C C1 D1*D2 E G1 H M*T
DR075LP170 240 228 215 44 170 151 100 7*13 152 176 85 20*3
DR090LP141 240 228 215 44 170 151 100 7*13 152 176 85 20*3
DR105LP106 240 228 215 44 170 165 110 7*13 152 176 97 20*3
DR146LP087 240 228 240 45 202 165 110 7*13 152 176 97 30*3
DR180LP070 250 240 250 46 205 175 110 11*18 160 190 124 30*5
Table 6-27
